    A13.0202 Trinocular Handheld Digital Microscope 50X - 600X Magnification Binocular For Research

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.0202
    Certification : CE|Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    A13.0202 Trinocular Handheld Digital Microscope 50X - 600X Magnification Binocular For Research

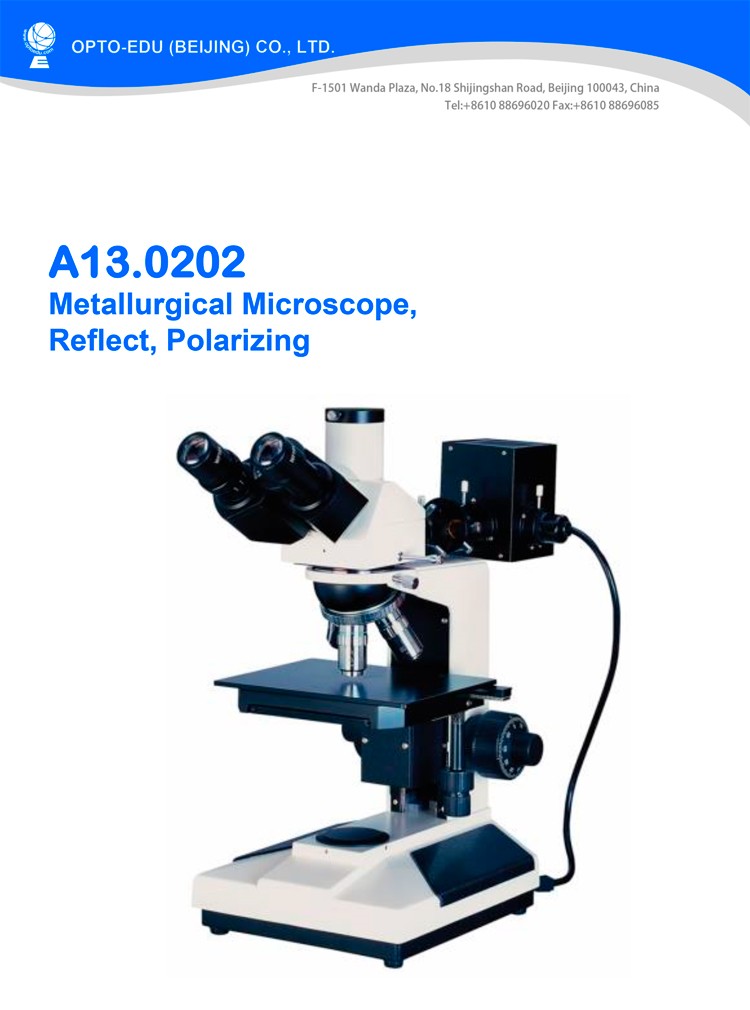

    Research Binocular Metallurgical Optical Microscope 50X - 600X A13.0202


    Description:


    This metallurgical microscope is used for identification and analysis of the structures in different metals and alloys, it is the important instrument for researching metallography in metal physics.

    --Plan achromatic objectives with long working distance (no cover glass)
    --Coaxial coarse/fine focusing system with tension adjustable and up stop
    --6V 20W halogen lamp with brightness control
    --Trinocular head can switch between normal observation and polarizing observation


    Specifications:


    Specification
    A13.0202-A
    A13.0202-B
    Eyepiece
    WF10X(Φ18mm)
    Objective
    Plan long working distance (no cover glass) PL5x/0.12
    Plan long working distance (no cover glass) PL5x/0.12
    Plan long working distance (no cover glass) PLL10x/0.25
    Plan long working distance (no cover glass) PLL10x/0.25
    Plan long working distance (no cover glass) PLL20x/0.40
    Plan long working distance (no cover glass) PLL40x/0.60
    Plan long working distance (no cover glass) PLL40x/0.60
    Plan long working distance (no cover glass) PL 60x/0.75 (Springl)
    Plan long working distance (no cover glass) PL 60x/0.75 (Springl)
    Head
    Trinocular, inclination of 30°, analyzer with field diaphragm to switch
    Vertical illumination
    6V 20W halogen lamp with brightness control
    Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and frosted filter
    Focus System
    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
    Nosepiece
    Quadruple back ball bearing inner locating
    Quintuple back ball bearing inner locating
    Stage
    Double layer mechanical, size 185x140mm, moving range 75x40mm
    Optional Accessories
    Item No.
    EyepieceWide field WF16x/11mmA51.0203-16A
    Divding 10x, 0.1mm/DivA51.0205-10
    Objective
    Plan long working distance (no cover glass) PLL50x/0.70A5M.0212-50
    Plan long working distance (no cover glass) PLL80x/0.80A5M.0212-80
    Plan long working distance (no cover glass) PLL100x/0.85(Spring)A5M.0212-100
    Plan achromatic (no cover glass) PL100x/1.25A5M.0234-100
    CCD adapter0.4xA55.0202-1
    0.5xA55.0202-4
    1xA55.0202-2
    0.5x with dividing 0.1mm/DivA55.0202-3
    Photo Adapter
    2.5x/4x change over photograph attachment with 10x viewing eypiece
    A55.0201-1
    4x Focusing photograph attachmentA55.0201-2
    MD adapterA55.0201-3
    PK adapter
    A55.0201-4
    DC Adapter
    Canon ditigal camera adapter (A610, A620, A630, A640)
    A55.0204-11
