A13.1013 Infinity Metallurgical Optical Microscope For Industry Inspection

Ask Lasest Price
Brand Name :	CNOEC
Model Number :	A13.1013
Certification :	CE, Rohs.
Price :
Payment Terms :	L/C, T/T,Western Union,

Add to Cart

Product Details
Company Profile

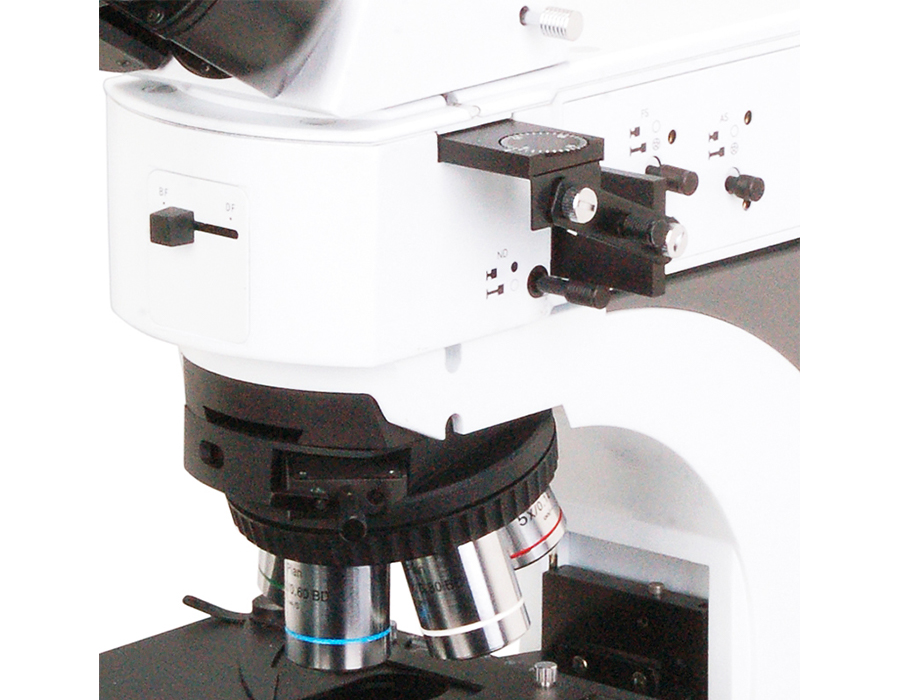

A13.1013 Infinity Metallurgical Optical Microscope For Industry Inspection

Infinity Trinocular BF/DF DIC Metallurgical Microscope Halogen Light A13.1013

A13.1013 Laboratory DIC BF/DF Metallurigcal Microscope, is an ideal instrument for industry inspecition and science research laboratory.

--Infinity Optical System, BF/DF, Transmit & Reflect Illumination, DIC, Polarzing System
--Full Range BF/DF Objectives Included
--Polarization System Optional
--DIC System Optional
--Powerful Transmitted And Reflected Illumination System with Kohler Illumination.

	A13.1013 BF/DF DIC Metallurgical Microscope	A	B
Optical System	Infinity Optical System, Bright Field/Dark Field, DIC, Polarizing
Head	Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Eyepiece	Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Nosepiece	Backward Quintuple Nosepiece
Objective	Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF/DF),W.D.12mm
	Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF),W.D.10mm
	Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF),W.D.4.3mm
	Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF/DF),W.D.0.32mm
	Infinity Plan Achromatic Objectives100x/0.80/∞/0 (BF/DF),W.D.2mm
	Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17,W.D.0.54mm		o
	Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17,W.D.0.13mm		o
Focusing	Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment
Working Stage	Maximum Sample Height 30mm Double Layer Mechanical Stage 186138mm, Moving Range 7450mm, Including: --Specimen Preparation Plate --Slide Glass		o
	Maximum Sample Height 50mm Non-Porous Double Layer Mechanical Stage 186138mm, Moving Range 7450mm, Including:	o
Reflect Illumination	24V 100W Halogen Light, Brightness Adjustable Kohler Illumination With Aspherical Condenser Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer Blue, Green, Yellow Filter, Gound Glass
Transmit Illumination	Swing-Out Condenser N.A.0.9/0.25 24V 100W Halogen Light With Aspherical Condenser Blue Filter		o
	A13.1013 BF/DF DIC Metallurgical Microscope	A	B
Objective	Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF),W.D.2.9mm	A5M.1036-40
DIC	20x, 100x DIC Slide	A5M.1040
Polarizing	Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer \| For Reflect Illumination	A5P.1002
Filter	Netural Filter ND25	A5F.1011-25
	Netural Filter ND6	A5F.1011-6
Adaptor	Photo Adapter, For Nikon or Canon SLR Camera	A55.1001
	C-Mount 1.0x	A55.1002-10
	C-Mount 0.5x	A55.1002-05
Other	Specimen Presser	A5M.1010
