| A23.0910 Zoom Stereo Microscope,Zoom Ratio 1:12.5, Parallel Light | A23.0910-B1 | A23.0910-B2 | A23.0910-B10 | Cata. No. |
| Head | 5°~45° Tilting Trinocular Head, Light Splitting Switch
E100:P0/E0:P100,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock | ● | ● | ● | |
30° Inclined Trinocular Head, Light Splitting Fixed E50:P50,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock | | | | |
| Eyepiece | PL10x/23mm High Eye-Point Wide Field Plan Eyepiece, Diopter
Adjustable | ● | ● | ● | A51.0925-10 |
| PL15x/16mm High Eye-Point Wide Field Plan Eyepiece, Diopter
Adjustable | ○ | ○ | ○ | A51.0925-15 |
| PL20x/12.5mm High Eye-Point Wide Field Plan Eyepiece, Diopter
Adjustable | ○ | ○ | ○ | A51.0925-20 |

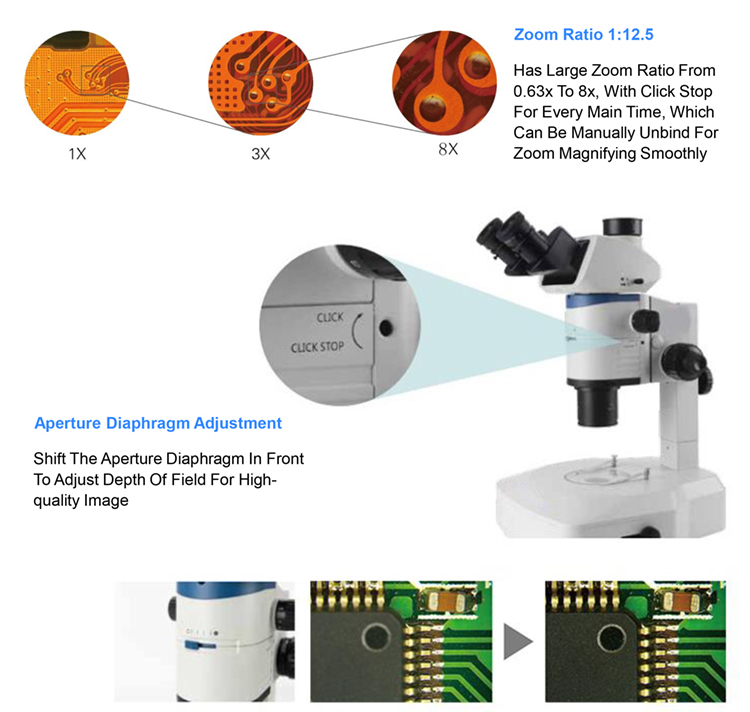

| Lens | Zoom Lens 0.63x~8x, Zoom Ratio 1:12.5,
Built-in Aperture Diaphragm Adjustable,
Main Scales On Zoom Knob 0.63x, 0.8x, 1.0x, 1.25x, 1.6x, 2.0x,
2.5x, 3.2x, 4x, 5x, 6.3x, 8x, Switch Between With/Without Click
Stop | ● | ● | ● | |
| Auxiliary Objective | 0.5x Main Objective APO, Working Distance 70.5mm | ○ | ○ | ○ | A52.0930-05 |
| 1.0x Main Objective APO, Working Distance 78.0mm | ● | ● | ● | A52.0930-10 |
| 1.5x Main Objective APO, Working Distance 31.1mm | ○ | ○ | ○ | A52.0930-15 |
| 2.0x Main Objective APO, Working Distance 20.0mm | ○ | ○ | ○ | A52.0930-20 |
| Nosepiece | Double Nosepiece | ○ | ○ | ○ | |
| Frame | Coaxial Fine & Coarse Focusing Mechanism, Intgrated Focus Holder
And Stand, Focusing Range 50mm, Fine Focusing Precision 0.002mm | ● | ● | ● | |
| Base & Bottom Light Source | (B1) Plan Base
Without Illumination, With Black/White Plate Dia.100mm | ● | - | - | |
(B2) Plan Base

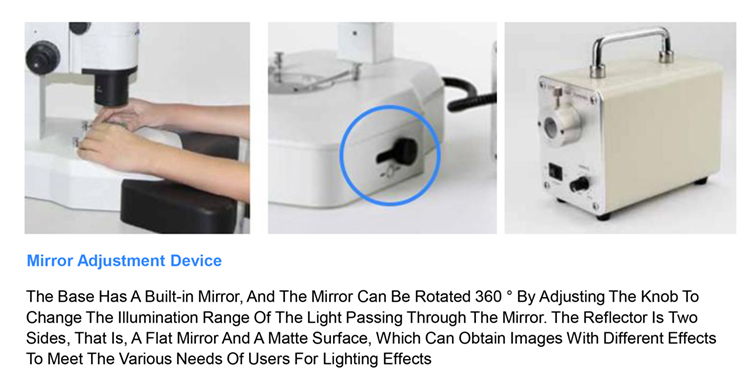

With Bottom Illumination Built-in Mirror 360° Rotatable + Position
Adjustable
Use With Oblique Illumination 5W LED | - | ● | - | |
| Forearm Holder (Matching Use With B2 Base) | - | ○ | - | A54.0965 |
(B10) Ultra-thin Base,
With Bottom Illumination 5W LED, Color Temperature 3200~5600K &
Light Intensity Adjustable With Digital Readout LCD Screen | - | - | ● | |
Uppler
Light Source | Upper Illumination:
Attachable LED Ring Light (200 Bulbs), Wide Voltage 100-220V | ● | | ● | |
Oblique Illumination:
External 5W LED Module, Color Temperature 5000-5500K White Light,
Wide Voltage 100-220V, Output 12V5W, Power Supply Box Size
270×100×130mm, With Single Optical Fiber 500mm (Matching Use With
B2 Base) | - | ● | - | |
Coaxial Illumination:
1.5x, With 1/4 λ, 360º Rotatable, 20W LED, Intensity Adjustable,
With Power Supply Box, With Soft Double Optical Fiber 1000mm | - | - | - | |
| Polarizing | Polarizer Fixed On Bottom Light Source (For Transmit Light) | - | ○ | ○ | A5P.0925-P |
| Analyzer Attached Under Lens, 360° Rotatable (For Transmit Light) | - | ○ | ○ | A5P.0925-A |

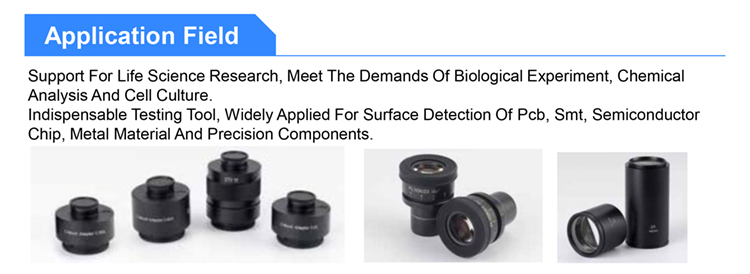

| Adapter | 0.35x C-mount Adapter, Focus Adjustable | ○ | ○ | ○ | A55.0930-35 |
| 0.5x C-mount Adapter, Focus Adjustable | ○ | ○ | ○ | A55.0930-05 |
| 0.65x C-mount Adapter, Focus Adjustable | ○ | ○ | ○ | A55.0930-65 |
| 1.0x C-mount Adapter, Focus Adjustable | ○ | ○ | ○ | A55.0930-10 |
| Allen key | M4 allen key (3mm) | ● | ● | ● | |
| Package | Sponge And Carton, One Set/Carton, Carton Size 58.5x55x81cm | ● | ● | ● | |
| ● Means Standard Outfit ○ Means Optional Parts - Mean Not Match |
