    LED Digital Portable Metallurgical Optical Microscope A31.2501 3.1M 100 - 400x

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A31.2501
    Certification : CE, Rohs
    Price : Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

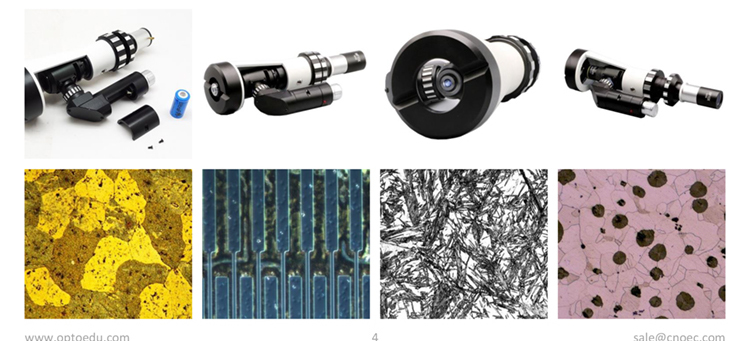

    LED Digital Portable Metallurgical Optical Microscope A31.2501 3.1M 100 - 400x

    100 - 500x Digital Portable Metallurgical Optical Microscope A31.2501

    Small & Simple, with bright white LED light built-in, and high quality image!


    A31.2501-B Digital Portable Metallurgical Microscope
    Total Magnification100-400x
    Mechanical Tube Length160mm
    HeadMonocular Vertical Head
    EyepieceWF10X
    LWD Plan Objective
    (No Cover Glass)
    PLL 10X/0.25 W.D. 7.3mm
    PLL 40X/0.65 W.D. 0.5mm
    FocusingCoaxial Coarse & Fine Focus Knob, Focusing Range 36mm
    Light SourceLED Coaxial Illumination, Brightness Adjustable, Powered By Rechargeable Batteries (Battery NOT Included For Air Shipment)
    PackingPortable Aluminium Case
    Digital Camera3.1M/MT9T001(C)
    1/2“ (6.55x4.92)
    Max.Resolution 2048/*1536
    Pixel Size 3.2 x 3.2μm
    Responsivity 1.0 V/lux-sec
    2048*1536/10fps
    1024*768/22fps
    680*510/43fps
    Dynamic Range 61dB
    SN Ration 43dB
    Binning 1x1,2x2,3x3
    Exposure 0.244~2000ms

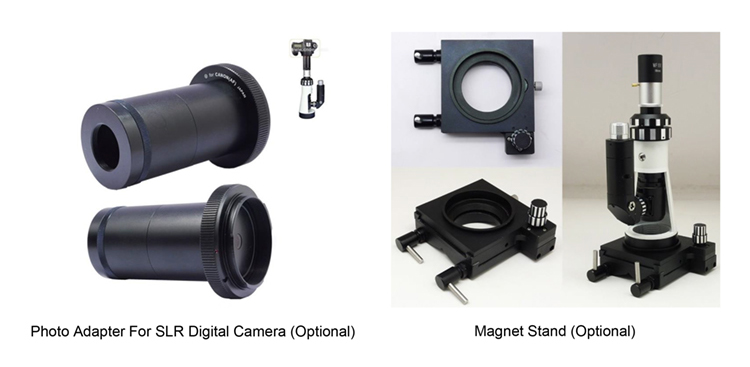

    A31.2501-B Digital Portable Metallurgical Microscope Optional Accessories
    AdapterPhoto Adapter For SLR Digital Camera Canon SeriesA55.2622-C
    Photo Adapter For SLR Digital Camera Nikon SeriesA55.2622-N
    Polarizing SetPolarizer & Analysiser SlidesA5P.2601
    LWD Plan Objective
    (No Cover Glass)
    20x/0.40mm, WD8.6A5M.0234-20
    50x/0.70mm, WD2.20,SpringA5M.0234-50A
    60x/0.75mm, WD1.34,SpringA5M.0234-60
    80x/0.80mm, WD0.96,SpringA5M.0234-80A
    100x/1.25mm, WD0.33, Spring,OilA5M.0234-100
    Magnet StandMagnet Stand, X/Y Moving Range 10x10mmA54.2501
