    5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A15.0701
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    5W OPTO-EDU A15.0701-TR Metallurgy Polarizing Light Microscope


    OPTO-EDU A15.0701-TR Polarizing Microscope Transmit & Reflect

    Backward Quadruple Nosepiece, Center Adjustable

    Swing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter

    12V/20W Halogen Lamp, Brightness Adjustable, With Filter, Upgradable To 5W LED



    ItemsA15.0701 Polarizing MicroscopeA15.0701-TR
    BT
    HeadSeidentopf Binocular Viewing Head, Inclined at 30°
    Seidentopf Trinocular Viewing Head, Inclined at 30°

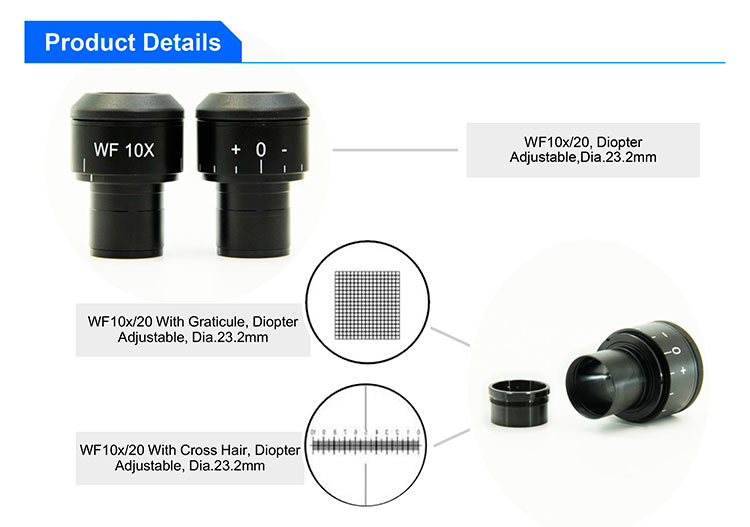

    EyepieceWF10x/20 With Cross Hair, Diopter Adjustable, Dia.23.2mm, 1pcs
    WF10x/20 With Graticule, Diopter Adjustable, Dia.23.2mm, 1pcs
    WF10x/20, Diopter Adjustable,Dia.23.2mm, 2pcs
    ObjectiveInfinity Plan Achromatic Objective 4x,10x for Reflected/Transmitted System
    Infinity Plan Achromatic Objective 20x, 40x, 60x for Transmitted System
    Infinity Plan Achromatic Objective 20x, 40x, 60x for Reflected System
    NosepieceBackward Quadruple Nosepiece, Center Adjustable
    FocusingCoaxial Coarse & Fine Adjustment, Range 24mm,Fine Division 0.002mm
    StageAttachable Mechanical Stage, Moving Range 30x40mm
    Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale
    AnalyzerRotatable Analyzer With Gradation 0°-360°
    Polarizer360° Rotatable Under The Condenser
    Bertrand LensBertrand Lens, Focus/Center Adjustable Sliding In/Out Of Optical Path
    Optical Compensatorλ Slip(First Class Red), 1/ 4λ Slip, Quartz Wedge
    CondenserSwing-out NA0.9/0.25 Abbe Condenser With Iris Diaphragm & Filter
    Transmit Light12V/20W Halogen Lamp, Brightness Adjustable, With Filter, Upgradable To 5W LED
    Reflect Light12V/50W Halogen Lamp With Iris Aperture Diaphragm And Iris Field Diaphragm, Brightness Adjustable
    AdapterC-Mount 0.4x
    FilterBlue Filter
    Note: "●"In Table Is Standard Outfits, "○" Is Optional Accessories.
