    OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.2607
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope

    OPTO-EDU A13.2607 Inverted Metallurgical Optical Microscope




    Super Wide Field Eyepiece

    Swiveling Siedentopf Rotatable 360°, Inclined 45°, IPD: 48-75mm,
    Light distribution: 70:30(70% For Eyepiece, And 30% For Camera Tube), WF10X/20mm


    Mechanical Stage
    Three-layer Working Stage, Stage size: 180×155mm

    Nosepiece & Objectives
    Quadruple
    LWD Infinity Plan Objectives

    Polarizing
    Analyzer & Polarizer & Grey Filter



    5W LED Warm Lamp
    Powered By Safety Low Voltage Charger

    Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use



    ItemsA13.2607 Inverted Metallurgical Microscope
    HeadSwiveling Siedentopf, Inclined 45°, IPD: 48-75mm,Light distribution:
    70:30(70% For Eyepiece, And 30% For Camera Tube)
    EyepieceWF10X/20mm, High Eyepoint
    WF10X/20mm, High Eyepoint, Adjustable Focus, Reticule 0.1mm
    LWD Infinity
    Plan Objectives
    LPL 5×0.13, W.D=16.04mm
    LPL 10×0.25, W.D.= 18.48mm
    LPL 20×0.40, W.D.= 8.35mm
    LPL 50×0.70, W.D.= 1.95mm
    LPL 80×0.80, W.D.= 0.85mm
    LMPlan FL 100×0.85(Dry), W.D.= 3.00mm
    NosepieceQuadruple
    Mechanical StageThree-layer Working Stage, Stage size: 180×155mm, Moving Range:75×40mm, Scale: 0.1mm, Round Slide Size:φ110mm

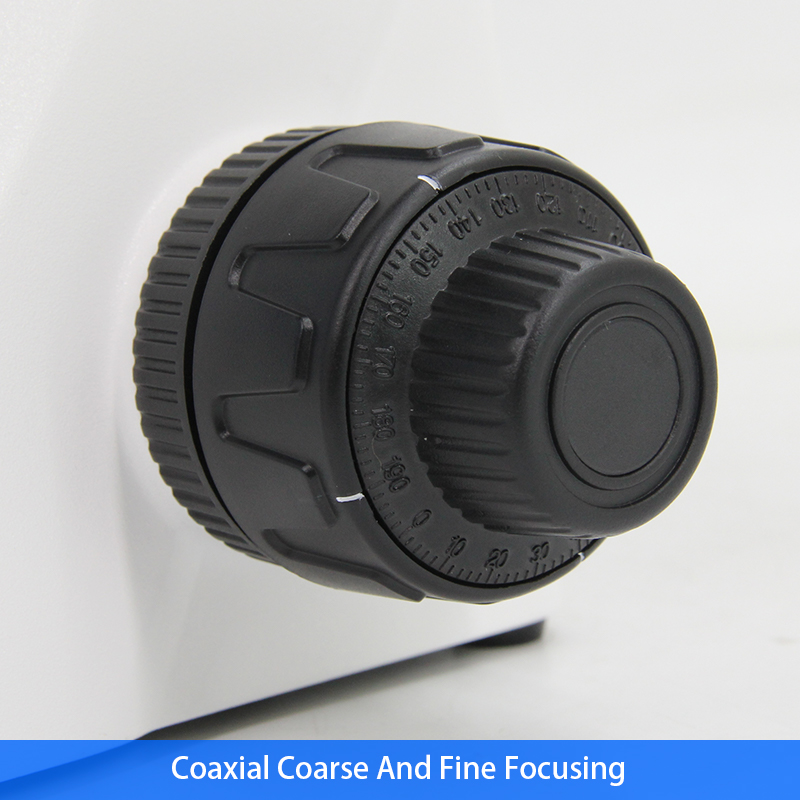

    FocusingCoaxial Coarse And Fine, Coarse Stroke: 10mm, Fine Stroke PerRrotation: 0.2mm, Fine Division 2 μm.
    Polarizing UnitPolarizer, Analyzer
    llumination5W LED Warm Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    FilterGrey
    C-mount0.65×C-Mount, Built-in
    HolderUniversal Holder for HD Screen
    HDMI CameraWith Measurement Function
    HD Screen10.1” HD LCD
    Packing Size: 500mm×425mm×305mm Gross Weight:9.0 kgs Net Weight: 7.0 kgs
    Note: ""In Table Is Standard outfits, "" Is Optional Accessories.
