Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Ask Lasest Price
Brand Name :	CNOEC, OPTO-EDU
Model Number :	A11.6603-M
Certification :	CE\|Rohs
Price :	Negotiation
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Unique Head And Frame Integrated Body & Integrated Design Of The Eyepiece Lens Barrel
Butterfly Type (Butterfly) Binocular Design, The Lens Barrel Can Be Rotated 360°, The Height Of The Eye Point Is 44mm,

Which Is Convenient For People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And

Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Exclusive And Innovative Low-power Dimming Objective
No Need To Adjust The Brightness Between High And Low Power Objectives

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

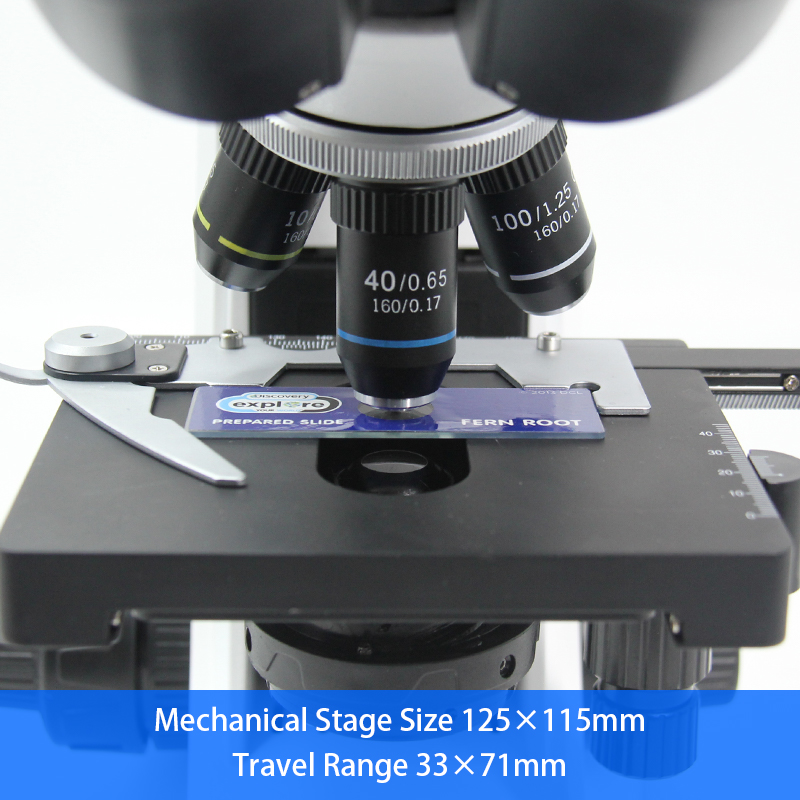

Mechanical Stage
Mechanical Stage Size 125×115mm, Travel Range 33×71mm

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Condenser & Light Source
Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder
3W LED Illumination With Aspheric Collector
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Newly Designed Rear Storage Space & Observation Window At The Rear Of The Body
For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Achromatic OPTO-EDU A11.6603-M 1000x School Monocular Microscope

Items	A11.6603 Student Biological Microscope Specification	M	B	T	B1	T1	Cata. No.
Head	Monocular Head, Inclined 30°	●					A53.2603-M
	Seidentopf Binocular Head, Inclined 30°, Swiveling Siedentopf Head, Interpupilary Distance: 48-75mm		●		●		A53.2603-B
	Seidentopf Trinocular Head, Swiveling Siedentopf Head, Interpupilary Distance: 48-75mm, Light Split Fixed P20:E80			●		●	A53.2603-T
Eyepiece	WF10x/18mm	●●	●●	●●	●●	●●	A51.2602-1018
	WF16x/13mm	○○	○○	○○	○○	○○	A51.2602-1613
	WF10x/18mm With Pointer	○○	○○	○○	○○	○○	A51.2604-1018
	WF10x/18mm (Non-adjustable, Reticule 0.1mm)	○○	○○	○○	○○	○○	A51.2605-1018
	WF10x/18mm (Adjustable, Reticule 0.1mm)	○○	○○	○○	○○	○○	A51.2605-1018D
Nosepiece	Quadruple, Backward	●	●	●	●	●	A54.2610-N03
Achromatic Objective	4x/0.1, W.D.=18.6mm	●	●	●			A52.2601-4
	10x/0.25, W.D.=6.5mm	●	●	●			A52.2601-10
	20x/0.40, W.D.=1.75mm	○	○	○			A52.2601-20
	40x/0.6(S), W.D.=0.47mm	●	●	●			A52.2601-40
	60x/0.80(S), W.D.=0.10mm	○	○	○			A52.2601-60
	100x/1.25(S,O), W.D.=0.07mm	●	●	●			A52.2601-100
Plan Objective	4x/0.1, W.D.=14.5mm				●	●	A52.2603-4
	10x/0.25, W.D.=5.65mm				●	●	A52.2603-10
	40x/0.6(S), W.D.=0.85mm				●	●	A52.2603-40
	100x/1.25(S,O), W.D.=0.07mm				●	●	A52.2603-100
Working Stage	Mechanical Stage Size 125×115mm, Travel Range 33×71mm	●	●	●	●	●	A54.2601-S03
Condenser	Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder	●	●	●	●	●	A56.2614-09
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 25mm, Fine Focusing Scale 2µm/Division	●	●	●	●	●
Adapter	1.0x C-Mount			○		○	A55.2601-B10
Adapter	0.5x C-Mount Focus Adjustable			○		○	A55.2601-B05
Dark Field	Dark Field Ring, For 4x~40x Objective	○	○	○	○	○	A5D.2611-B
Light Source	3W LED Illumination With Aspheric Collector, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	●	●	●	A56.2612-3W
Package	Carton Size 26x35x46cm, 1 Unit/Ctn
Weight	Gross Weight 7.0kgs, Net Weigth 5.5kgs
Note: "●"In Table Is Standard Outfits, "○" Is Optional Accessories.
