LED Light Source DC12V Digital LCD Microscope Pole Stand
200*255*60mm Size
A36.6401 is widely used in PCB boards, hardware, serial devices,
FPC, textiles, tickets, kinds of visual industrial testing, digital
magnifying glass, hospital research, education, criminal
investigation and other fields. It will reduce labor intensity and
improve work efficiency.
It can be applied to the following fields:
1.1 Studies in zoology, botany, entomology, histology, mineralogy,
archaeology, geology and dermatology;
1.2 In the textile industry, used for testing raw materials and
wool fabrics;
1.3 In the electronics industry, as a transistor spot-welding,
inspection and other operating tools;
1.4 Inspection of surface phenomena such as fracture composition of
various materials and corrosion of pore shape;
1.5 When manufacturing small precision parts, it is used as
equipment of machine tools, observation of working process,
inspection of precision parts and assembly tools;
1.6 Surface quality of lens, prism or other transparent material,
and quality inspection of precision scale;
1.7 It is widely used in textile products, chemical chemistry,
plastic products, electronic manufacturing, mechanical
manufacturing, pharmaceutical manufacturing, food processing,
printing industry, universities, archaeology and many other fields.

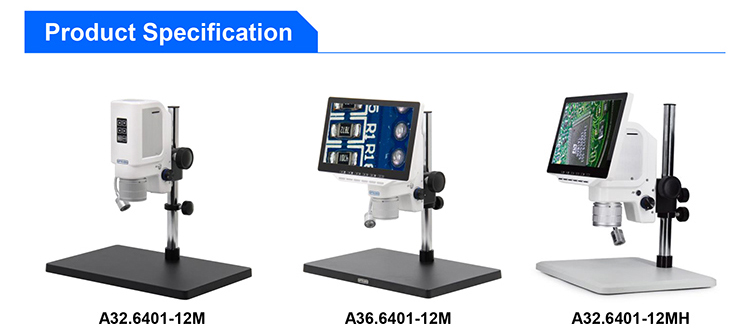

| A32.6401, A36.6401 Series Digital Microscope | A32.6401
-12M | A36.6401
-12M | A36.6401
-12MH |
| LCD Screen | Size | 10.6" IPS LCD | | ● | ● |
| Resolution | 1366*768 | | ● | ● |
| Digital Camera | Camera Pixel | 12MP | ● | ● | ● |
| Video Resolution | 1080p/60fps | ● | ● | ● |
| Data Output | HDMI | ● | | ● |
| WDR | Yes | ● | ● | ● |
| Function | Auto Exposure,
Exposure Offset
Auto White Balance
Photo, Video Recording | ● | ● | ● |
| Storage | SD Card Storage (Max 32G) | ● | ● | ● |
| External Interface | Projector/Monitor With HDMI Port | ● | | ● |
| Optical | Objective | 0.7x~4.5x Zoom Lens | ● | ● | ● |
| Total Magnification | 14x~90x On 10.6" LCD Screen | ● | ● | ● |
| Illumination | Side/Up LED Light, Brightness Adjustable | ● | ● | ● |
| Focus Range | 60mm | ● | ● | ● |
| Working Distance | 88mm | ● | ● | ● |
| Stand | Column | Round Pole, Dia.25mm | ● | ● | ● |
| Stand | 380mm*250mm*20mm, Black | ● | ● | ● |
| 320mm*260mm*20mm, White (Same Cost) | o | o | o |
| Optional | A52.6401-0.5 | Auxilliary Lens 0.5x | o | o | o |
| A52.6401-2.0 | Auxilliary Lens 2.0x | o | o | o |
| Boot Logo | o | o | o |
| WiFi SD Card, Upgrade To WiFi Microscope | o | o | o |
| SD Card | o | o | o |
| Power | DC 12V1A, Wide Range 100~240V AC Adapter | ● | ● | ● |
| Remark: "●" Means Standard Outfit, "o" Means Optional |
