    1000X 5.0M Resolution 9.7" Portable Lcd Digital Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A33.1502
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    1000X 5.0M Resolution 9.7" Portable Lcd Digital Microscope

    9.7" LCD, 5.0M, Trinocular, WF10x/20, Quarduple, Achromatic HC 4x,10x,40x100x, Double Layer Mechanical Graphite 143*132mm, Moving 75x50mm, Abbe N.A.1.25, Coaxial, 3W LED, 1.0x C Mount

    1.9.7" LCD Touch Screen Pad, With Android System + Measuring Software

    2.High Eyepoint Wide Field Eyepiece WF10x/20mm Dia.30mm

    3.Achromatic HC 4x,10x,40x100x Objective, Upgradeable To Infinity

    4.Double Layer Mechanical Stage 143*132mm, Upgradeable To 216x150mm

    5.3W LED Kohler Illumination With Removable Light House For Easy Maintainence

    A33.1502 9.7" LCD Digital Biological Microscope
    HeadTrinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
    EyepieceWF10x/20mm, Diopter Adjustable, Dia. 30mm
    ObjectiveHigh Contrast Chromatic Free
    4x, 10x, 40x(S), 100x(Oil, S)
    Focus KnobCoaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
    NosepieceQuadruple, Backward With Click Stops
    StageDouble Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
    CondenserAbbe Condenser N.A.1.25, Center Adjustable
    Light Source3W LED Brightness Adjustable
    AdapterC-Mount 1.0x
    Package53*32.5*53.5cm/11.5Kg, 1 Set/Carton

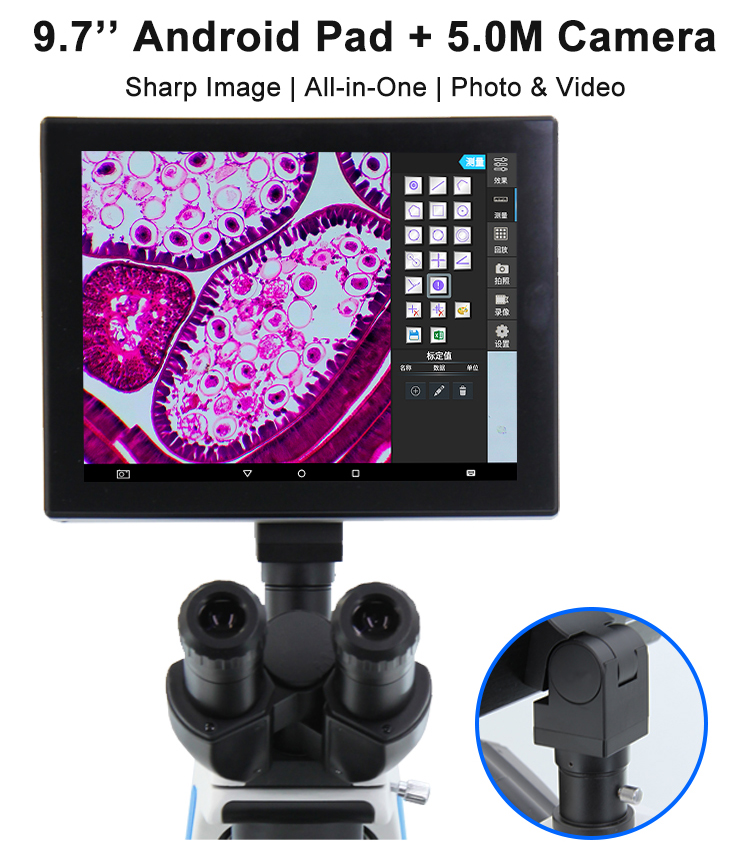

    9.7" LCD Pad Digital Camera (A59.3520)
    LCD9.7" HD IPS Touch Screen With Backlight
    Camera5.0M 1/2.5" CMOS Digital Camera
    Resolution2048x1536 @15FPS
    Pixel2.2umx2.2um
    Data StorageTF Card or Built-in Memory
    Data OutputUSB2.0, HDMI, TF Card
    Photo5.0M .JPEG
    Video1080p Video Record
    SystemAndroid 5.1 System
    90 Languages
    Support Mouse + Keyboard Control
    Support WIFI
    Support Bluetooth
    FunctionS-Eye Software & Instruction Manual Installed
    Mark:
    Point, Crosshair, Coordinate, Text
    Length Measure:
    Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point To Line Distance
    Distance Between 2 Circle Centers:
    Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle
    Geometric Measure:
    Line Segment Length, Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle, Concentric Circle
    Geometric Area Measure:
    Polygon, Square
    PowerDC 12V/2A Power Adaptor, AC 100~240V
    SizePad 238x182x12mm, Camera 40x39mm
