    6x 50-80mm Adjustable Dental Operating Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A41.1901
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    6x 50-80mm Adjustable Dental Operating Microscope

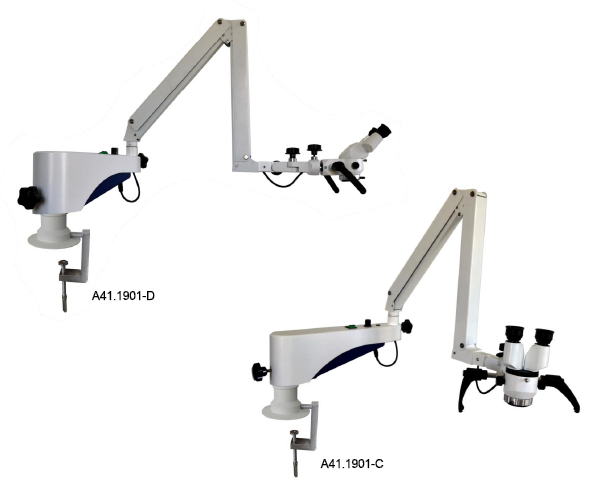

    A41.1901 Series Operation Microscope Specification
    A41.1901 Series Operating Microscopes, is the basic economical high quality series. It use fibre-optic cable for coaxial illumination, with 3 steps zoom body, has total magnification 2.3x~12x, featured with flexible handling and easy operation. It is widely used in hospital for ENT (ear-nose-throat), dental, ophthalmology, gynecology, surgery, orthopedics and etc.

    ModelA41.1901-AA41.1901-CA41.1901-CZA41.1901-BA41.1901-D
    Binocular HeadStraight45º Tilted
    Main UsageENT, SurgeryDental, Ophthalmology, Gynecology
    Total MagnificationWith Objective F=200mm: 4.7x, 7.5x, 12x
    With Objective F=300mm: 3.0x, 5.0x, 8.0x
    Total Magnification (Optional)With Objective F=250mm: 3.7x, 6.0x, 9.6x
    With Objective F=400mm: 2.3x, 3.8x, 6.0x
    Eyepiece17.24x
    Head Magnification6x
    Interpupillary Distance50~80mm Adjustable
    DiopterBoth Left & Right Eyetube Diopter Adjustable ±5D
    Zoom Body3 Steps Zoom: 0.6x,1.0x,1.6x
    ObjectiveF=200mm For Ear, Nose
    F=300mm For Ear, Nose
    F=200mm For Ophthalmology
    F=300mm For Gynecology
    Objective (Optional)F=400mm For ThroatF=250mm For Dental
    FocusingFine Focusing Range 10mm
    FilterGreen, Yellow Filters Built-in
    Balancing Arm2-Part Arm With Universal Joints
    Stand2-Part Column +
    Five Star Base With Caster
    Table Mount ClampColumn Mount, Customrized To Customer2-Part Column +
    Five Star Base With Caster
    Table Mount Clamp
    Illumination SystemCoaxial Illumination, 10W LED, Brightness Adjustable, >30000 Lux
    Power SupplyWide Range AC100~240V, DC12V 3A, 36W
    Video AdapterNot Available
    A41.1901 Series Operation Microscope Optional Accessories
    ObjectiveF=250mm, For A41.1901-B, -DA52.1901-250
    F=400mm, For A41.1901-A, -C, -CZA52.1901-400
    MountTable Mount ClampA54.1901-T
    Wall Mount BracketA54.1901-W
    Monitor MountMonitor Mount: 1 Fix Arm And 1 Gas Spring Arm With Tension Adjustable. Band Clamp. Fit 15-27" Screen. VESA Standard 75x75xmm & 100x100mm. Load Capacity 0~8 Kgs, Swivel 180°, Tilt -80°~+90°, Rotation 360°A54.1910-112B
    Monitor Mount: 1 Fix Arm And 1 Mechanic Spring Arm With Tension Adjustable. Band Clamp. Fit 15-27" Screen. VESA Standard 75x75xmm & 100x100mm. Load Capacity 0~8 Kgs, Swivel 180°, Tilt -80°~+90°, Rotation 360°A54.1910-312B

    A41.1901 Series Operation Microscope Optical Characteristics
    Focal Length (mm)F=200mmF=250mm (Optional)F=300mmF=400mm (Optional)
    Zoom Body1.6x1.0x0.6x1.6x1.0x0.6x1.6x1.0x0.6x1.6x1.0x0.6x
    Total Magnification12x7.5x4.7x9.6x6.0x3.7x8.0x5.0x3.0x6.0x3.8x2.3x
    Linear Field (mm)15.825.340.619.731.650.723.637.960.831.550.581.0
    Exit Pupil Dia.(mm)1.041.661.661.041.661.661.041.661.661.041.661.66
    Exit Pupil Distance (mm)15.30
    Resolution (LP/mm)67.044.529.760.035.427.047.231.523.635.027.019.8
