| A33.1009 Biological Microscope Specification |
| Magnification | Optical 40x~1600x, On LCD 78.8x-1970x |
| Head | Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, IPD
55-75mm |
| Eyepiece | Wide Field WF10x/18mm |
| Wide Field WF16x/11mm |
| Nosepiece | Quadruple Nosepiece |

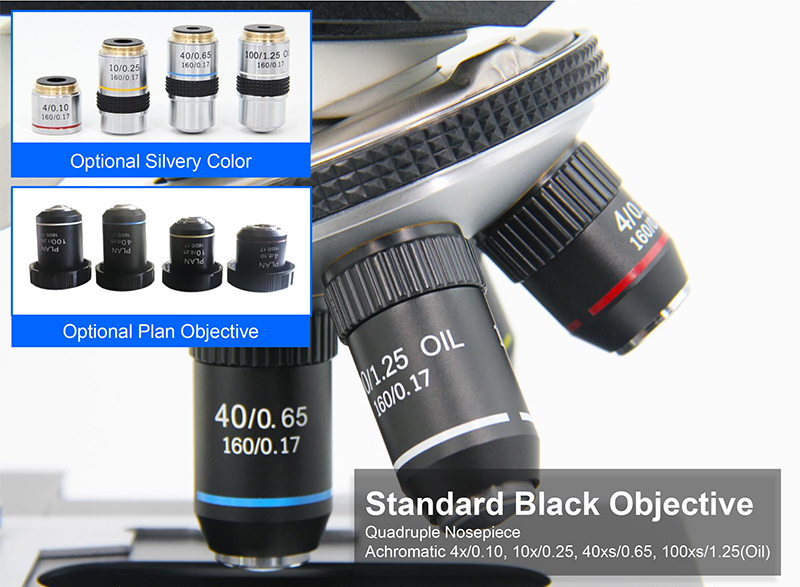

| Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil) |

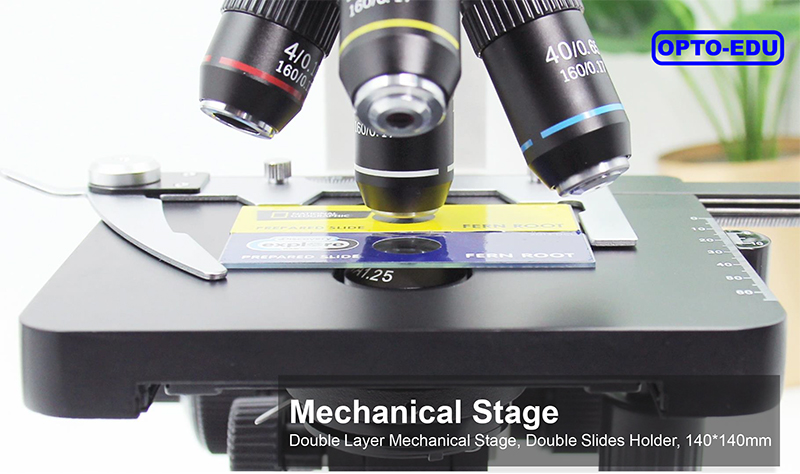

| Stage | Double Layer Mechanical Stage, 140*140mm, Moving Range 50*75mm |
| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale
0.002mm, With Tension Adjustment, With Safety Stop Lock Ring |
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder |
| Filter | Blue, Yellow, Green |
| Light Source | Built-in Illumination 3W LED, Brightness Adjustable |
| Adapter | 1.0x C-Mount, Eyepiece Adapter |
| Packing | Foam +Carton, 1 Set/Carton, Packing Size 33*28*55cm, G.W.9Kg,
N.W.7Kg |
| A33.1009 LCD Digital Camera Specification |
| Sensor | 1/2.8"Sony Star Light Level CMOS Sensor |
| Resolution | 5.0M CMOS |
| LCD Screen | 9"LCD, Resolution 1024x600 High Clearance Screen |
| Output | USB 2.0 Type-A, TF Card |
| Pixel Size | 2.0x2.0um |
| Power Supply | DC 12V/2A Power Adapter, Input 100-240V AC |
| Function | Photo, Video, Measures, Compare |
| Support USB Mouse Control To Capture Photo, Video, Measure, Setting |
| USB 2.0 To Win 7, Win10 System, Software S-Eye Included |
| Brightness, Contrast, Exposure, White Balance Adjustable |
| 10x Digital Zoom, 4 Split/ 2 Split Windows Image Compare |
| Storage To TF Card |
| Cross Line With Scale, Calibrated |
| Net Line 8 Kinds, Width & Color Adjustable |
| Size / Weight | Product Size 225x52x175mm, Net Weight 0.7Kg |
| Standard Package | LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter |
| USB Mouse Control Operation Manual | 1. Insert the mouse into the camera Type-A USB 2.0 port, connect
12V power supply to camera. |
| 2. Turn on the power switch, when the camera is running, the LED
light turns blue |

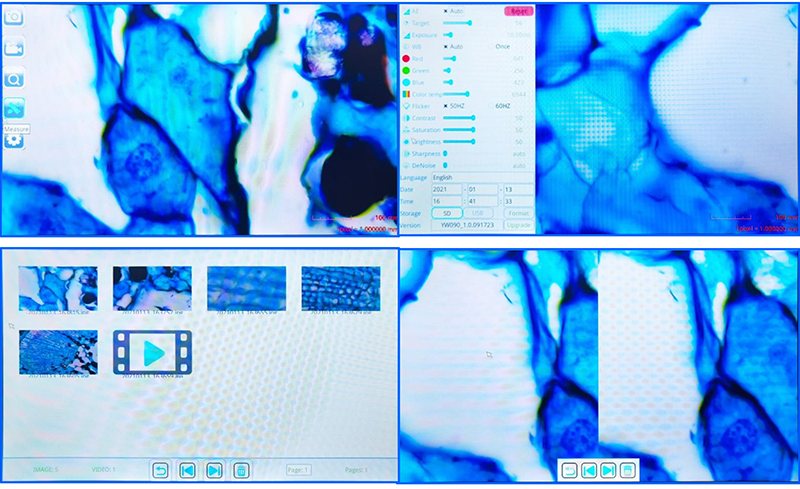

| 3. Move the mouse to the top left corner of the screen to call up
the MAIN MENU, including icon : Take Photo, Record Video, Preview,
Measure, Setting. |
| 4. Move the mouse to the middle position at the bottom of the
screen to call up the QUICK MENU, including icon: |
| Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White,
HDR, Freeze, Net, Font, 2 Split, 4 Split |
| 5. Click the MEASURE icon to pop up the measure window, which
support over 20 kinds of measurement graphics. |
| 6. Click the EDIT button and fill in the name to of new ruler to
CALIBRATE.Move the mouse to the corresponding standard scale in the
image display window and draw a standard length scale line. Then
fill in the length column and click SAVE to complete the
calibration setting. If you want to add more ruler, just repeat
above steps. |
| 7.Click mm/PX to open or close the screen scale. |
| 8. If the USB port is directly connected to the computer, the
screen and the computer can be displayed synchronously (the USB
cable must be connected to the computer before the device is
powered on) |
