    USB2.0 Mouse Measure 5.0M 10x Zoom Digital Microscope Camera

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.3509
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

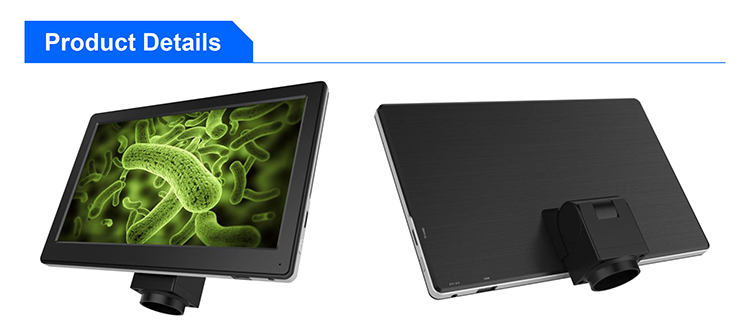

    USB2.0 Mouse Measure 5.0M 10x Zoom Digital Microscope Camera


    OPTO-EDU A59.3509 9" LCD Digital Camera USB2.0 Mouse Measure 5.0M


    5.0M, 9" LCD, 1/2.8" CMOS, Screen Resolution 1024*600, USB2.0 Real Time Image Output, TF Card, USB Mouse Control Menu For Measure, DC12V/2A, 100~240V.

    9" LCD Screen High Resolution 1024*600 Pixels

    5.0M Digital Camera 1/2.8" CMOS Sony Sensor

    USB2.0 Real Time Image Output + TF Card Storage

    USB Mouse Control Menu For Measure Function

    DC12V/2A, 100~240V Power Adapter

    ItemsA59.3509 9" LCD Digital Camera, USB+Mouse Measure, 5.0M
    Sensor1/2.8" Sony Star Light Level CMOS Sensor
    Resolution5.0M CMOS
    LCD Screen9" LCD, Resolution 1024x600 High Clearance Screen
    OutputUSB 2.0 Type-A, TF Card
    Pixel Size2.0x2.0um
    Power SupplyDC 12V/2A Power Adapter, Input 100-240V AC
    FunctionPhoto, Video, Meaure, Compare
    Support USB Mouse Control To Capture Photo, Video, Measure, Setting
    USB 2.0 To Win 7, Win10 System, Software S-Eye Included
    Brightness, Contrast, Exposure, White Balance Adjustable
    10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae
    Storage To TF Card
    Cross Line With Scale, Calibrated
    Net Line 8 Kinds, Width & Color Adjustable
    Size / WeightProduct Size 225x52x175mm, Net Weight 0.7Kg
    Standard PackageLCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter
    USB Mouse Control
    Operation Manual
    1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera.

    2. Turn on the power switch, when the camera is running, the LED light turns blue

    3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon :
    Take Photo, Record Video, Preview, Measure, Setting.

    4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon:
    Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split

    5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics.

    6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE. Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps.

    7.Click mm/PX to open or close the screen scale.

    8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on)
