50x-1000x OPTO-EDU A13.0921 BD DIC Optical Metallurgical Microscope

Designed For Powerful Measurement Function, With Reliable Quality And Technology

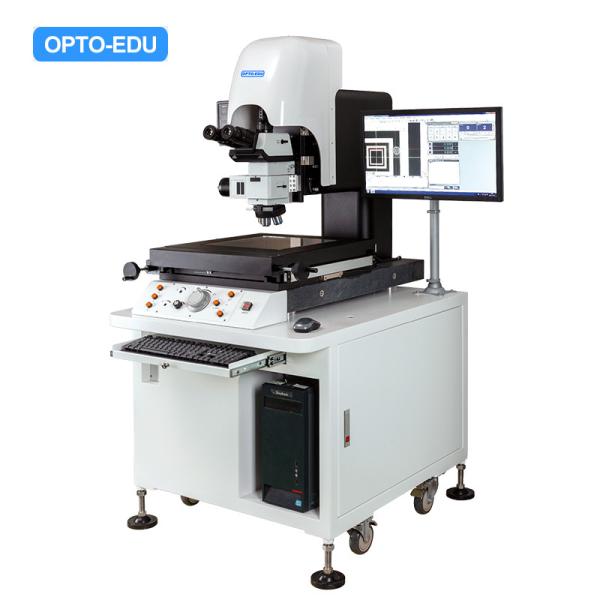

A13.0921 Precision Measuring Metallurgical Microscope combines the high power observation ability of metallographic microscope with the X, Y, Z axis surface dimension measurement function of image measuring instrument. It has many observation functions such as Bright Field & Dark Field, Differential Interference Contrast (DIC), polarized light, etc. It can be widely used in semiconductor, PCB, LCD, mobile phone industry chain, optical communication, basic electronics, mold hardware, medical equipment, automotive industry, measurement industry and other fields of testing.

5º~35º Tiltable Infinity Gemel Trinocular Head

The tilt angle of the observation tube is adjustable from 5° to 35°, can meet the user's operation needs whether standing or sitting, and there is no need to worry about the height difference of users

Large Moving Range Working Stage

With Japan imported optical grating ruler,
3 Kinds large size working stages optional: moving range 200x100mm, 300x200mm, 300x300mm, for large or small sample observation. The stage size can be customrized according to user's need.

Newly Design With Highly Integrated Functions

A13.0921 not only reserves the location for desktop computer, but also puts a retractable keyboard in front of user. Hand wheel in two directions and various buttons are ergonomic designed, user does not need to stand up to operate.

A13.0921 Precision Measuring Metallurgical Microscope, BD, DIC		-21	-32	-33
Magnification	Optical Magnification 50x~1000x, Total Magnification 135x~2700x
Eyepiece	High Eyepoint Plan Eyepiece PL10x/22mm, Diopter Adjustable
Head	5º~35º Infinity Gemel Trinocular Head, Erect Image, 360° Rotating, Interpupillary Range 50~76mm; Light Spliting Ratio Switch E0:P100/E100:P0
Objective	Long Working Distance Infinity Plan Achromatic Metallurgical Objective
	5x-DIC LMPL5x/0.15 W.D.10.8mm
	10x-DIC LMPL10x/0.3 W.D.12.20mm
	20x-DIC LMPLanFL20x/0.4 W.D.8.8mm, Semi-APO
	50x LMPLFL50x/0.55 W.D.7.9mm
	100x LMPLFL100x/0.80 W.D.2.1mm	○	○	○
	Long Working Distance Infinity Plan Achromatic BD Metallurgical Objective
	5x-DIC/0.15 W.D.9.0mm	○	○	○
	10x-DIC/0.3 W.D.9.0mm	○	○	○
	20x-DIC/0.4 W.D.8.5mm, Semi-APO	○	○	○
	50x/0.55 W.D.7.5mm	○	○	○
	100x/0.80 W.D.2.1mm	○	○	○
DIC	DIC Prism (Reflection)	○	○	○
Nosepiece	Reversed Quintuple Nosepiece, With DIC Slot, For Bright Field
	Reversed Quintuple Nosepiece, With DIC Slot, For Bright & Dark Field	○	○	○
Working Stage & Illumination	Manual Stage, Moving Range 200mm(X) x 100mm(Y), With Digital Indicator. Z Axis With Auto-control Box For Focusing; Z Axia Move Range 175mm. Measuring Precision: X/Y (3+L/200)um, Z Axis Repeatability Precision 2μm (20x Objective), With 5W LED Transmitted Illumination	●
	Manual Stage, Moving Range 300mm(X) x 200mm(Y), With Digital Indicator. Z Axis With Auto-control Box For Focusing; Z Axia Move Range 175mm. Measuring Precision: X/Y (3+L/200)um, Z Axis Repeatability Precision 2μm (20x Objective), With 5W LED Transmitted Illumination		●
	Manual Stage, Moving Range 300mm(X) x 300mm(Y), With Digital Indicator. Z Axis With Auto-control Box For Focusing; Z Axia Move Range 175mm. Measuring Precision: X/Y (3+L/200)um, Z Axis Repeatability Precision 2μm (20x Objective), With 5W LED Transmitted Illumination			●
Table	Table For Machine
Illumination	Reflect Bright & Dark Field Illumination, With BD Switch Device; With Filter Slots For Filters And Polarizing Kit; 5W LED, Intensity Adjustable;
Focusing	Focus Assist Controlled By High-Precision Electric Controller, With 3 Speeds Available, With Double Reticle; Focusing Range >400mm
Polarizing	Polarizer Slide For Reflect Illumination
	360° Rotatry Analyser Slide For Reflect Illumination
Adapter	0.5x C-Mount, Focus Adjustable
	0.65x C-Mount, Focus Adjustable	○	○	○
Digital Camera	1.2M Digital Camera, Pixel 1280(H) x 960(V); 60fps; Interface Gige; Sensor CMOS (Color)

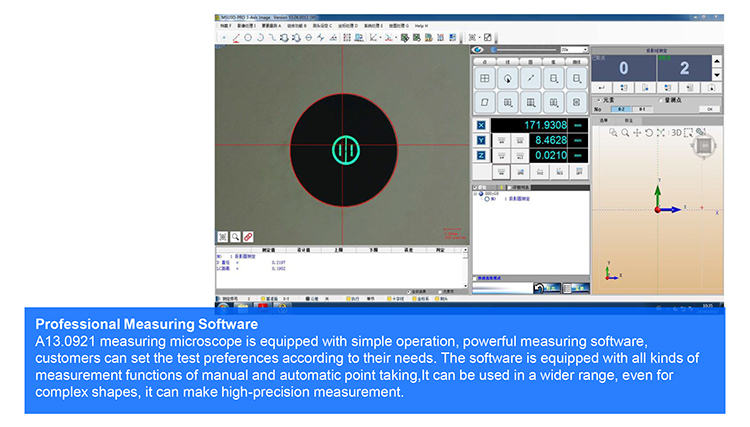

Software	MSU3D-Pro Measurment software
Computer	DELL 3470, Intel i5 Commercial Office, Desktop Computer (i5-9400 8G 1T WIFI) 21.5" Monitor
Spanner	Spanner M5
	Spanner M4
Packing	Foam+ Master Carton
Micrometer	High Quality Micrometer Slide 0.01mm	○	○	○
