| A16.0912-L LED Semi-APO Fluorescence Microscope | Cata. No. |
| Observation Method | Bright Field, Fluorescent, Phase Contrast |
| Head | Trinocular Head 45° Inclined, 360° Rotatable, Interpupillary
Distance 50-75mm, Light Splitting Ratio 100:0/0:100 Switchable |
| Eyepiece | High Point Eyepiece, Wide Feld Plan PL10x/22mm, Diopter Adjustable | ● | A51.0904-1022T |
| High Point Eyepiece, Wide Feld Plan PL10x/22mm, Diopter Adjustable,
With Reticle | ○ | A51.0905-1022R |
| High Point Eyepiece, Wide Feld Plan PL15x/16mm, Diopter Adjustable | ○ | A51.0903-1516 |
| Nosepiece | Quintuple Nosepiece |

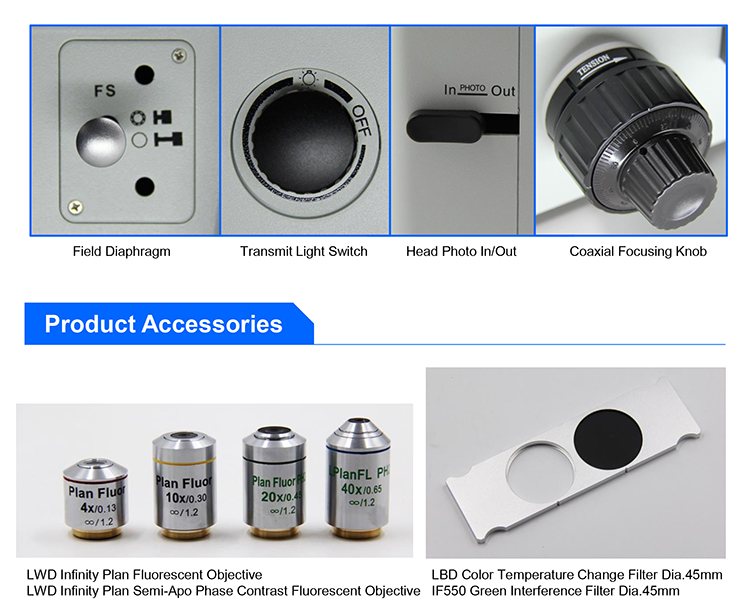

| Objective | LWD Infinity Plan Fluorescent Objective LWDPL4x/0.13, W.D.18.52mm | ● | A5F.0932-4 |
| LWD Infinity Plan Fluorescent Objective LWDPL10x/0.3, W.D.7.11mm | ● | A5F.0932-10 |
| LWD Infinity Plan Fluorescent Objective LWDPL20x/0.45, W.D.5.91mm | ○ | A5F.0932-20 |
| LWD Infinity Plan Fluorescent Objective LWDPL40x/0.65, W.D.1.61mm | ○ | A5F.0932-40 |
| LWD Infinity Plan Fluorescent Objective LWDPL60X/0.75, W.D.1.04mm | ○ | A5F.0932-60 |
| LWD Infinity Plan Semi-Apochromatic Phase Contrast Fluorescent
Objective LWDPL20x/0.45 W.D.5.91mm | ● | A5F.0933-20 |
| LWD Infinity Plan Semi-Apochromatic Phase Contrast Fluorescent
Objective LWDPL40x/0.65 W.D.1.61mm | ● | A5F.0933-40 |
| Focusing | Coaxial Coarse & Fine Focusing System, With Tension Adjustment
Ring, Coarse Focusing Range 9mm, Coke-Oriented 6.5mm, 2.5mm Down,
Fine Focusing Precision 0.002mm |
| Working Stage | Fixed Working Stage Size 215x250mm |
| Glass Plate |
| Metal Plate (Kidney Hole) |
| Mechanical Mobile Ruler, Moving Range 120(X)x78(Y)mm |
| Stage Extension Plate |
| Petri Dish Holder Dia.35mm |
| Slides Holder Dia.54mm, And 26.5x76.5mm |
| Teraseki Holder Dia.65mm, And 56x81.5mm |
| Condenser | LWD Condenser N.A.0.3, Working Distance 72mm, Removeable |
| Phase Contrast | Centre-Adjustable Phase Contrast Slide Plate, For N.A.0.3, With 2
Handles |
| Centering Telescop Dia.30mm |
| Reflect Fluorescent Light Source | LED Fluorescent Lamp House, 4 Bands LED Switching By Servo Motor,
Built-in LEDs For Fluorescent Filter 385nm, 470nm, And 560nm. |
| Three-Bands Filter Switching Mechanism, Automatically Switch
Filters & LED Light Together And Show Filter Selected On Front
Panel. |
| Fluorescent Filter B1 470nm | ● | A5F.0924-B1 |
| Fluorescent Filter G1 560nm | ● | A5F.0924-G1 |
| Fluorescent Filter UV1 385nm | ○ | A5F.0924-UV1 |

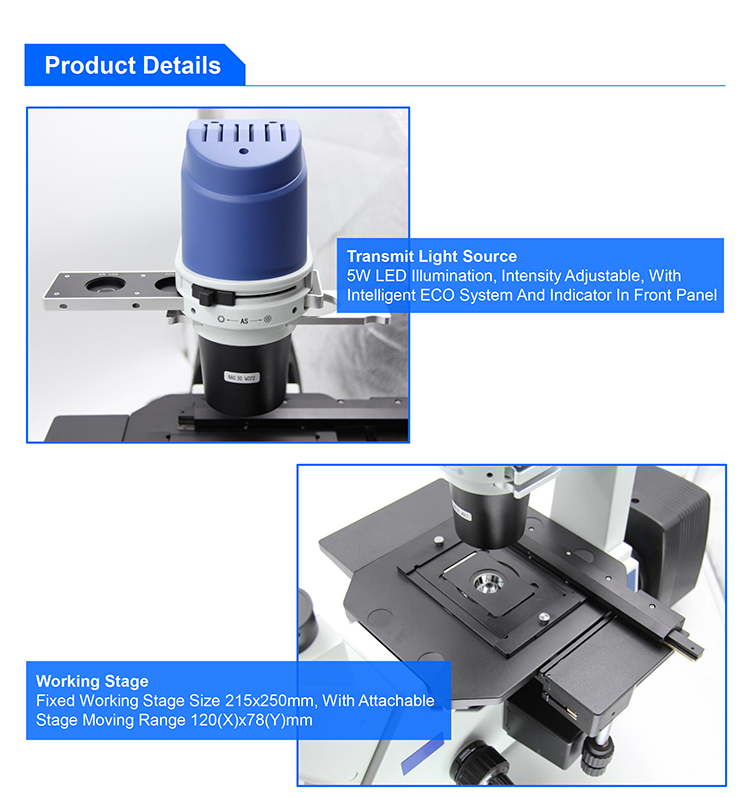

| Transmit Light Source | 5W LED Illumination, Intensity Adjustable, With Intelligent ECO
System And Indicator In Front Panel |
| LBD Color Temperature Change Filter Dia.45mm |
| IF550 Green Interference Filter Dia.45mm |
| Main Body | Reflect and Transmit Frame Body |
| Power Supply | External Wide Voltage Transformer, Input 100-240V, Output 12V5A |
| Adapter | C-Mount 0.35x | ○ | A55.0934-35 |
| C-Mount 0.65x | ○ | A55.0934-65 |
| C-Mount 0.5x | ○ | A55.0934-05 |
| C-Mount 1.0x | ○ | A55.0934-10 |
| Others | Spanner |
| Packing | Foam+Carton, 1pc/Carton, 74*67*57cm, G.W.24Kgs |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories
"-" Is Unavailable |
