| A16.1093 Research Level Fluorescent Laboratory Microscope | A16.1093-H | A16.1093-L | Cata. No. |
| Optical System | NIS60 Infinity Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | |
| Polarizing | ○ | ○ | |
| Phase Contrast | ○ | ○ | |
| Flourescent | ● | ● | |
| S | ○ | ○ | |
| Main Body | ATL Semi-Auto Body + LED Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | ● | ● | A54.1090-ATL |
| Head | Ergo Tilting Trinocular Head, Inclination 0°~35°,
Interpupillary Distance 47-78mm,
3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100 | ● | ● | A53.1090-TT |
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ●● | ●● | A51.1090-1025 |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | A51.1090-1022 |
| EW12.5x/16mm, High Eyepoint | ○ | ○ | A51.1090-12516 |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | A51.1090-1516 |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | A51.1090-2012 |
| Nosepiece | Auto Coded Nosepiece, Sextuple, Backward,
Motorized Switch Objectives, Controled By:
1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted
Objectives Quickly
2. Remote Control Pad In Front Of Base, Press Each Button To Switch
Objectives And Adjust The Light Intensity Automatically. 2 Buttons
Can Be Self-Defined For Most Commonly Used Objecives, Press Green
Button Can Swap Between Them | ● | ● | A54.1091-6A |
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | |
N-PLFN
Infinity Plan
Semi-APO Fluorescent Objective | PlanF S-APO 4x/0.13, W.D.16.5mm, Cover Glass 0.17mm | ● | ● | A5F.1091-4 |
| PlanF S-APO 10x/0.30, W.D.8.1mm, Cover Glass 0.17mm | ● | ● | A5F.1091-10 |
| PlanF S-APO 20x/0.50, W.D.2.1mm, Cover Glass 0.17mm | ● | ● | A5F.1091-20 |
| PlanF S-APO 40x/0.75, W.D.0.7mm, Cover Glass 0.17mm | ● | ● | A5F.1091-40 |
| PlanF S-APO 100x/1.30(Oil), W.D.0.15mm, Cover Glass 0.17mm | ● | ● | A5F.1091-100 |
| Working Stage | Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size
190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire
Glass Insert, Left Handle | ○ | ○ | A54.1092-SL |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size
190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire
Glass Insert, Right Handle | ● | ● | A54.1092-SR |

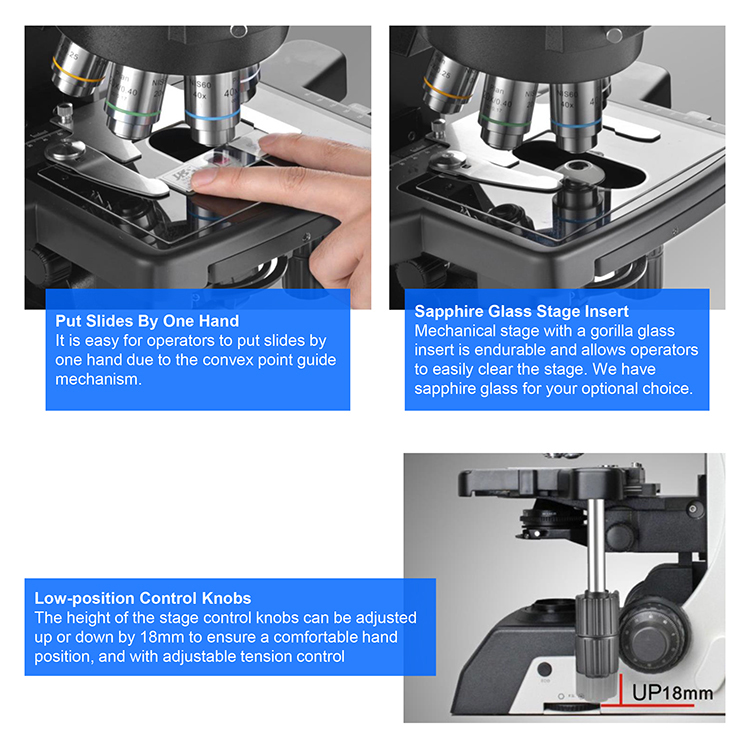

| Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex
Point Guide Mechanism For Easily Put Slide By One Hand, With
Tension Adjustable Ring, With Safety Stop Screw | ● | ● | |
| Condenser | Auto Swing-Out Condenser NA0.9/0.25 | ● | ● | A56.1091-A |
| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing
Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange
Hand Wheel Between Left/Righ | ● | ● | |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable,
12V100W Halogen, External Lamp House | ● | | A56.1090-12V100W |
Transmit Kohler Illumination, Brightness Adjustable,
3W S-LED, Built-in Main Body | | ● | A56.1090-3WLED |
| ECO Function Support Auto Power Off After 30 Mins From Operator
Leave To Save Energy | ● | ● | A56.1090-ECO |

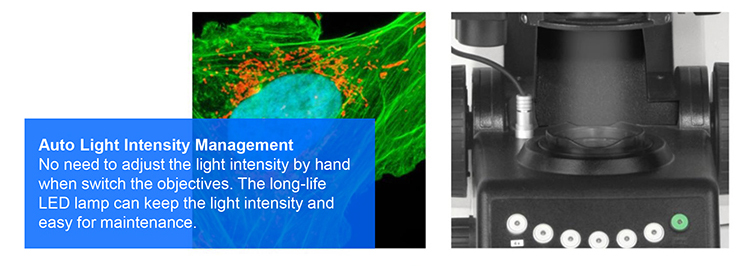

| Auto Brightness Adjust, Brightness For Each Objective Can Be
Memorized And Restored When Objective Is Selected | ● | ● | A56.1090-AB |
| Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | ● | ● | A56.1092-H |
| Filter LBD | ● | ● | A56.1092-LBD |
| Filter Green | ● | ● | A56.1092-G |
| Filter Yellow | ● | ● | A56.1092-Y |
| Filter ND6 | ● | ● | A56.1092-ND6 |
| Filter ND25 | ● | ● | A56.1092-ND25 |
| Adapter | Eyepiece Adapter Dia.23.2mm | ○ | ○ | A55.1090-E |
| C-Mount 1.0x | ○ | ○ | A55.1090-1.0x |
| C-Mount 0.5x | ○ | ○ | A55.1090-0.5x |
| Software | NOMIS Basic Image Processiing Software | ○ | ○ | A30.1090 |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | ○ | ○ | A5D.1090-D |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | ○ | ○ | A5D.1090-I |
Dark Field Objective, Infinity Plan 100X,
For Immersion Dark Field Observation | ○ | ○ | A5D.1030-3 |
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm,
For Immersion Dark Field Observation | ○ | ○ | A5D.1030-4 |
| Polarizing | Polarizer For Transmit Light Source | ○ | ○ | A5P.1091-P |
| Analyzer Slide For Transmit Light Source | ○ | ○ | A5P.1091-A |
| Gout Set: Polarizer, λ Slide, Quaterz Wedge Slide | ○ | ○ | A5P.1091-T |
| Upgrade To A15.1091 Professional Polarizing Microscope | | | A15.1091 |
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | ○ | ○ | A5C.1090 |
| Centering Telescope 10x | ○ | ○ | A5C.1092 |
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | ○ | ○ | A5C.1091-10 |
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | ○ | ○ | A5C.1091-20 |
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | ○ | ○ | A5C.1091-40 |
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | ○ | ○ | A5C.1091-100 |
| DIC | Polarizer For Transmit Light Source | ○ | ○ | A5P.1090-TP |
| Turret DIC Condenser | ○ | ○ | A5C.1095 |
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | ○ | ○ | A5C.1095-10 |
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | ○ | ○ | A5C.1095-2040 |
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | ○ | ○ | A5C.1095-10 |
| DIC Slide With Analyzer 10x-20x | ○ | ○ | A5C.1095-1020P |
| DIC Slide With Analyzer 40x-100x | ○ | ○ | A5C.1095-40100P |
| Fluorescent Attachment | Reflect Mercury Epi-Fluorescent Illuminator, Turret Disc With 6
Positions For Fluroescent Filter Block, With Protect Barrier | ● | ● | A5F.1090 |
| Power Supply Box 220V/110V Interchargeable, Digital Display | ● | ● | A5F.1090-100WH |
| 100W Mercury Lamp Housing | ● | ● | A5F.1090-100WP |
| Reflect LED Epi-Fluorescent Illuminator, Turret Disc With 6
Positions For Fluroescent Filter Block, With Protect Barrier | ○ | ○ | A5F.1090-LED |
| LED Light Source Module, For Fluorescent Filter B | ○ | ○ | A5F.1090-LB |
| LED Light Source Module, For Fluorescent Filter G | ○ | ○ | A5F.1090-LG |
| LED Light Source Module, For Fluorescent Filter U | ○ | ○ | A5F.1090-LU |
| LED Light Source Module, For Fluorescent Filter V | ○ | ○ | A5F.1090-LV |
| Fluorescent Filter B, BP460-490, BA520, DM500 | ● | ● | A5F.1090-B |
| Fluorescent Filter G, BP510-550, BA590, DM570 | ● | ● | A5F.1090-G |
| Fluorescent Filter U, BP330-385, BA420, DM400 | ● | ● | A5F.1090-U |
| Fluorescent Filter V, BP400-410, BA455, DM455 | ● | ● | A5F.1090-V |
| Fluorescent Filter FITC, BP460-495, BA510-550, DM505 | ○ | ○ | A5F.1090-FITC |
| Fluorescent Filter DAPI, BP360-390, BA435-485, DM415 | ○ | ○ | A5F.1090-DAPI |
| Fluorescent Filter TRITC, BP528-553, BA578-633, DM565 | ○ | ○ | A5F.1090-TRITC |
| Fluorescent Filter R, BP620-650, BA670-750, DM660 | ○ | ○ | A5F.1090-R |
| Fluorescent Filter Empty Block | ○ | ○ | A5F.1090-E |
| Filter ND6 | ● | ● | A5F.1090-ND6 |
| Filter ND25 | ● | ● | A5F.1090-ND25 |
| Centering Plate | ○ | ○ | A5F.1090-01 |
| Protect Cover For Reflect Fluorescent Light, Placed On Light
Collectory On Stand, For Auto Model | ○ | ○ | A5F.1090-02 |
| Other Accessories | Working Stage Holder Bracket | ● | ● | A54.1096 |
| Adapter To Adjust Eye Position | ○ | ○ | A54.1096-A1 |

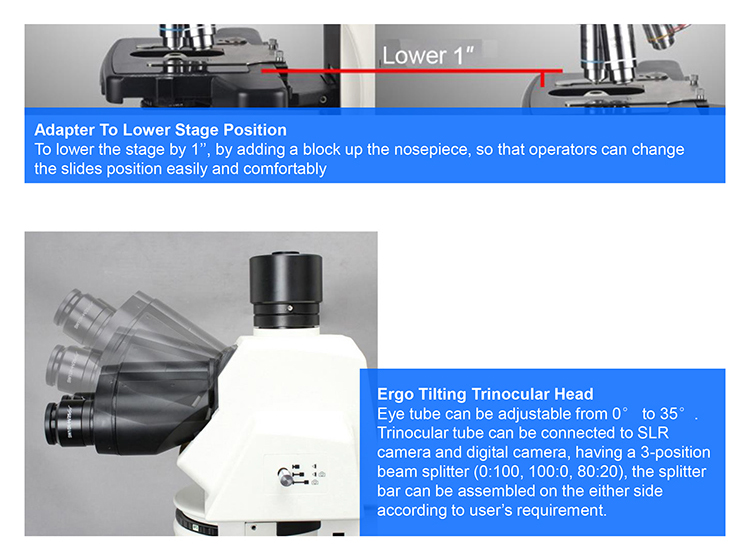

| Adapter To Lower The Stage Position 1" | ○ | ○ | A54.1096-A2 |
| Immersion Oil | ● | ● | A50.1090-01 |
| Allen Wrench | ● | ● | A50.1090-02 |
| Power Cord | ● | ● | A50.1090-03 |
| Short Eye Cover, For Eyepiece | ○ | ○ | A50.1090-04 |
| Long Eye Cover, For Eyepiece | ○ | ○ | A50.1090-05 |
| Eyepiece Micrometer, Cross | ○ | ○ | A50.1090-06 |
| Adapter Ring To Install Eyepiece Micrometer | ○ | ○ | A50.1090-07 |
| USB Cable | ○ | ○ | A50.1090-08 |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories
"-" Is Unavailable |
