    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A23.1503
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

    Head: Trinocular Head, Both Eye Tube Diopter Adjustable
    Light Split Switch E100:P0/E0:P100
    With Eyepiece Adapter + 1.0x C-Mount
    Eyepiece: WF10x/20mm, Both With Eye-cup
    Zoom Lens: 0.7~4.5x
    Zoom Ratio: 1:6.5
    Magnification: 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
    W.D.: Working Distance100mm, With Standard 1.0x Lens
    F.O.V: Field Of View 1~95.2mm
    Stand: Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair

    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

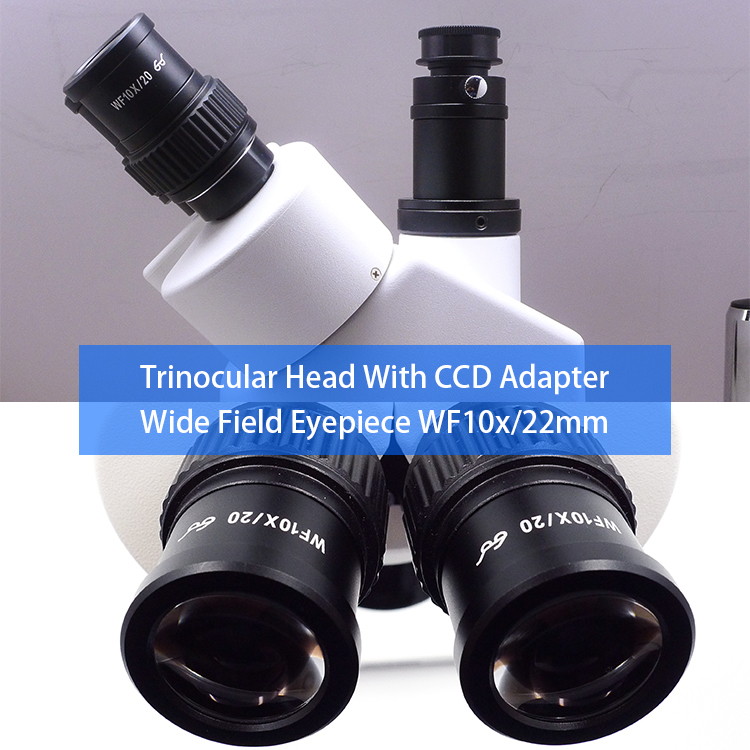

    Trinocular Head, Both Eye Tube Diopter Adjustable

    Light Split Switch E100:P0/E0:P100

    With Eyepiece Adapter + 1.0x C-Mount
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

    Zoom Lens: 0.7~4.5x
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

    Focusing Range 50mm, Distance To Center 155mm
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

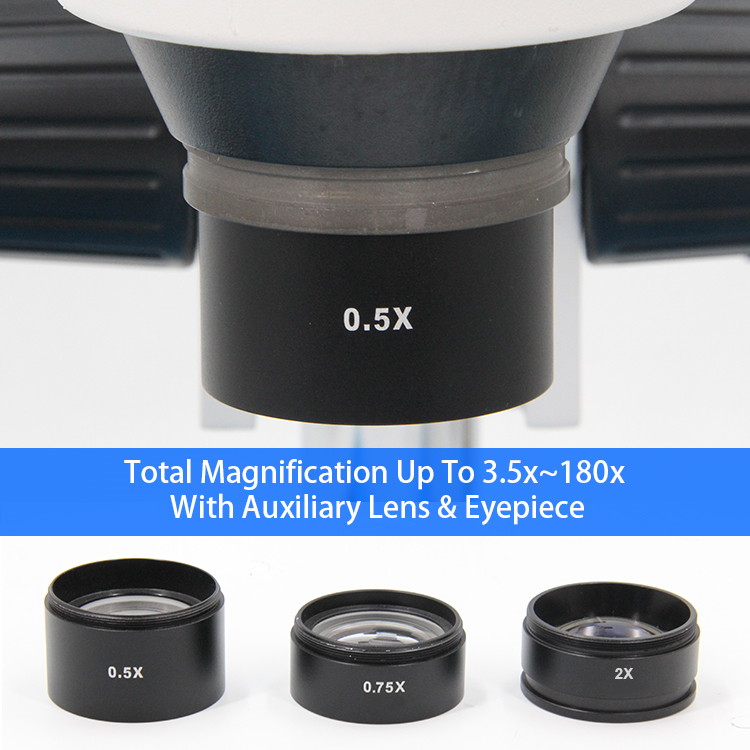

    Total Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

    Upper 56 LEDs Right Light Brightness Adjustable
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

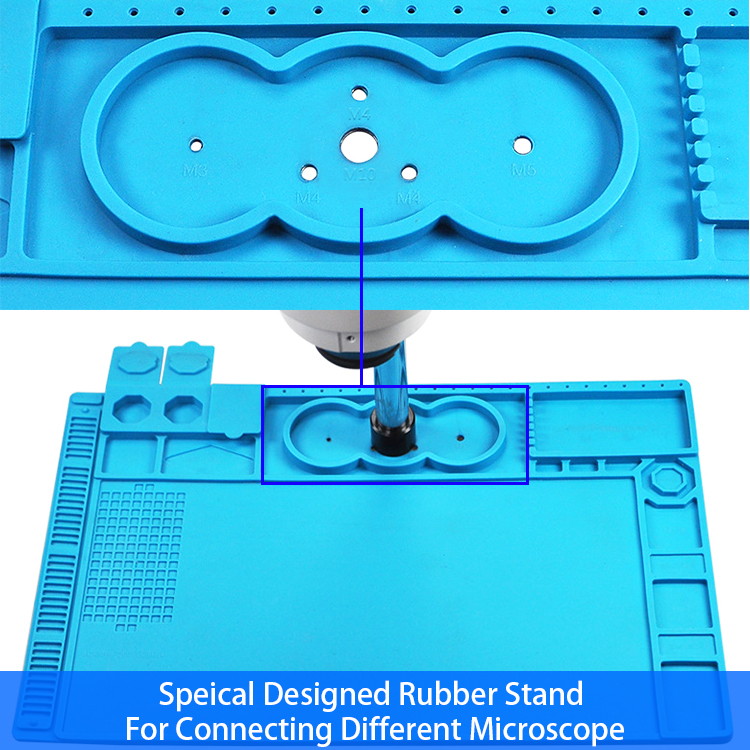

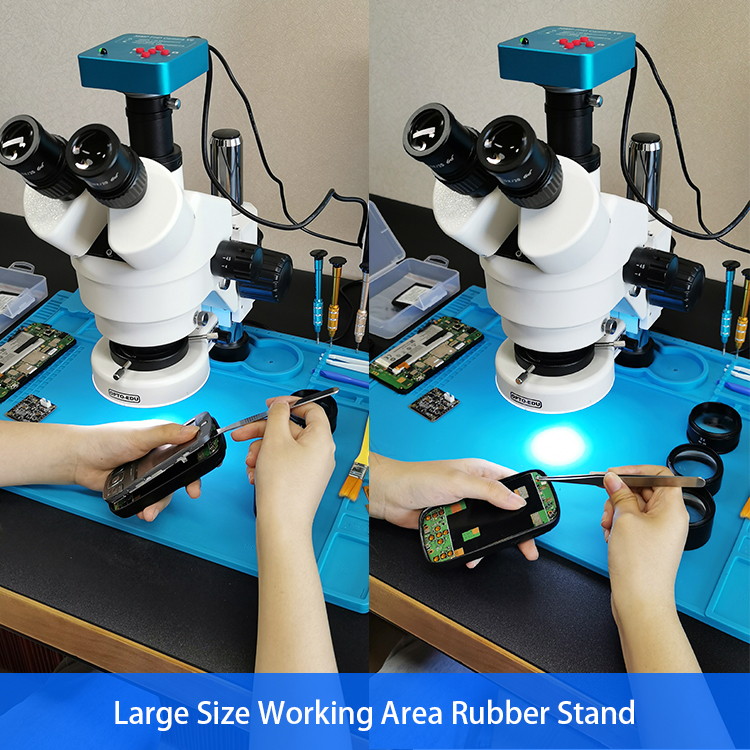

    Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x
    A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

    A23.1503 DIY Phone PCB Repair Microscope
    HeadTrinocular Head, Both Eye Tube Diopter Adjustable
    Light Split Switch E100:P0/E0:P100
    With Eyepiece Adapter + 1.0x C-Mount
    EyepieceWF10x/20mm, Both With Eye-cup
    Zoom Lens0.7~4.5x
    Zoom Ratio1:6.5
    Magnification7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
    W.D.Working Distance100mm, With Standard 1.0x Lens
    F.O.VField Of View 1~95.2mm
    StandLarge Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
    Optional AccessoriesCata.No.
    EyepieceWF15x/15mm, High-eyepointA51.1520-15
    WF20x/10mm, High-eyepointA51.1520-20
    Auxiliary Lens0.5x,W.D. 177mmA52.1520-05
    0.75x,W.D. 120mmA52.1520-75
    2.0x,W.D. 30mmA52.1520-20
    Light SourceUpper 56 LEDs Right Light Brightness AdjustableA56.2103-A

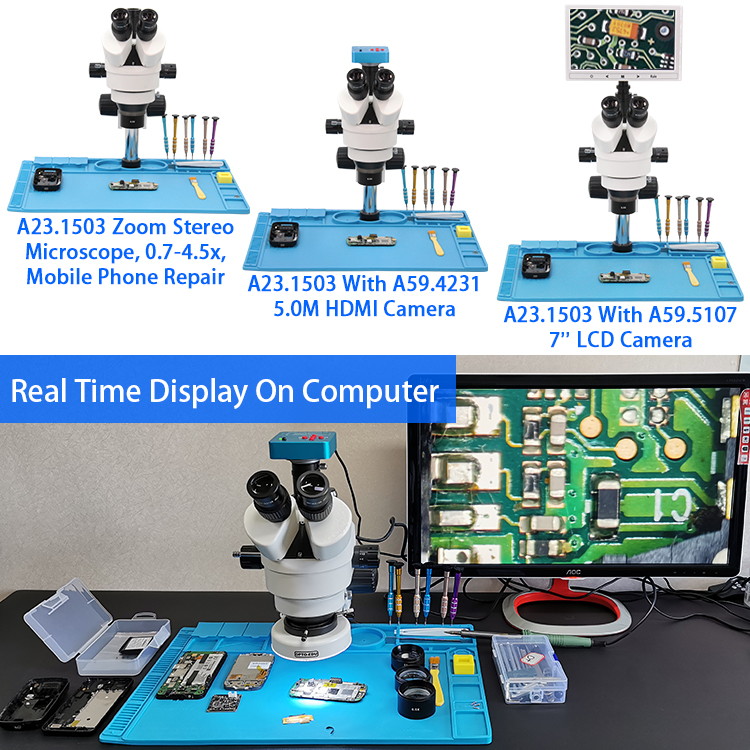

    Digital CameraHDMI+USB+TF Digital Camera, 38.0M, USB MeasureA59.4231
    7" LCD Digital Camera, AV OutputA59.5107
    9" LCD Digital Camera, AV OutputA59.5109
    CCD AdapterEyepiece Adapter + 0.5x C-MountA55.1520-05

    A23.1503 Zoom Stereo Microscope Optical Data Sheet
    ObjectiveStandard 1.0xAuxiliary 0.5xAuxiliary 0.75xAuxiliary 2.0x
    W,D.100mm177mm120mm30mm
    EyepieceMagView FieldMagView FieldMagView FieldMagView Field
    10X/20mm7.0X28.6mm3.5X57.1mm5.25x43.8mm14X14.3mm
     45.0X4.4mm22.5X8.9mm45x6.5mm90X2.2mm
    15X/15mm10.5X21.1mm5.25X42.8mm7.87x31.8mm21X10.7mm
     67.5X3.3mm33.75X6.7mm50.6x4.7mm135X1.7mm
    20X/10mm14.0X14.3mm7.0X28.6mm10.5x23.9mm28X7.1mm
     90.0X2.2mm45.0X4.4mm67.5x3.6mm180X1.1mm
