    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A54.0720
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

    • For Cell Microinjection Operations, Intracytoplasmic Sperm Injection (ICSI)
    • Equipped With Single-axis Motion And Three-axis Locking Functions
    • Step Motor, X/Y/Z Moving Range >20mm, Step Moving <20nm, Moving Speed 0~10mm/s,
    • Oil Pressure Microinjector 1000ul, Coarse Rotate 10ul, Fine Rotate 1ul, Air Pressure Microinjector 10ml, Coarse Rotate 600ul, Fine Rotate 60ul
    • Support YZ One Key Lock, , Z One Key Limit, One Key Release Control, One Key Zero, One Key Move to Memory Position
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

    The A54.0720 micromanipulation operating system has a Chinese/English bilingual interface. By controlling the rocking bar, cell microinjection operations can be carried out accurately and quickly, maximumly improving the success rate. A54.0720 is equipped with single-axis motion and three-axis locking functions, providing greater flexibility and convenience for Intracytoplasmic Sperm Injection (ICSI)


    Equipped with a Chinese/English bilingual interface.

    Good stability, no vibration during operation

    Adjustable microscope needle pitch and horizontal angle by knob

    The attachment functions can be selected and set.(Single-axis motion or locking, step injection)

    The Z-axis limit position can be set to prevent capillary breakage

    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

    Suspension cell injection


    Prokaryotic or cytoplasmic injection

    Assisted Reproductive Technology ICSI operations

    (intracytoplasmic single sperm injection)

    Suspension cell manipulation


    Cell transplantation

    Single-cell separation


    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

    A54.0720 Micromanipulation Controller


    Buttons, display, joystick and side dial are included. The movement direction and speed of the joystick are transmitted to the micromanipulation side through the control board. The movement speed and working range size can be predefined in the software. The working scope can be selected and changed individually on the control panel.

    Micromanipulation controllerA joystick can be moved to control the movementdistance and direction of the X,Y, and Z axes
    Speed controlProportional and dynamic force feedback control
    Work modeCoarse/Fine /X-Fine
    Size (L*W*H)200*290*145 mm
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

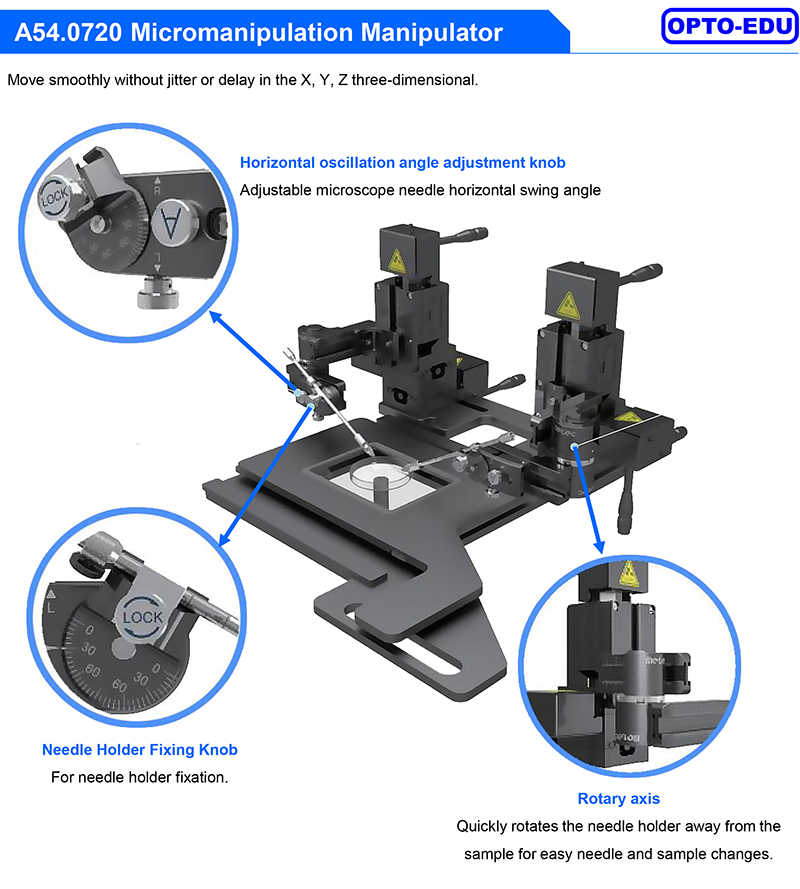

    Micromanipulation manipulator:

    X. Y, Z three-axis motion mechanism, rotating connector and angle adjustment are included which is used to move and position the micromanipulation side in three-dimensional space.

    Single axis moving distance≥20mm
    Weights3.5 kg
    Movement speed0~13000 um/s
    Mechanical adjustment distance0~105 mm
    Size(L*W*H)140*100*240 mm
    Rotary axis offset angle-45°~110°
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope

    With good sealing performance, operations such as suspension positioning and cell removal of embryos can be carried out using air and oil.


    Oil pressure microinjector and air pressure microinjector: for manual micro-volume high-precision injection, micro-volume liquid distribution injection and gas pressure control. 0l pressure microinjector is applied in complex scenarios with high resolution and high sensitivity (embryo biopsy and cell implantation, etc. Air pressure microinjector is a micro-transfer pneumatic micro-syringe, which is widely applied in scenarios like suspending cells, embryo maintenance, or transferring smaller volumes of liquid.

    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    Oil pressure microinjector
    FunctionAspiration and dispensing of microcells Manual microinjection Cell removal
    MediumParaffin oil
    Volume change per revolution1uL/10uL
    Maximum volume1000uL
    Injection tube1.3 meters long, inner diameter 1.0 mm, outer diameter 2.0 mm
    Air pressure microinjector
    FunctionMicrocell suspension maintenance
    Aspiration and dispensing of microcell
    Small volumes of liquids trace dispensing
    Pressure generationAir
    Volume change per revolution60uL/600uL
    Maximum volume10mL
    Injection tube1.3 meters long, inner diameter 1.0 mm, outer diameter 2.0 mm
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
    OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
