OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator

    Buy cheap OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator from wholesalers

    Buy cheap OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator from wholesalers
    • Buy cheap OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator from wholesalers
    • Buy cheap OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator from wholesalers

    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A5F.4810
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator

    • Wide Spectral Ouput 350-390nm, 410-760nm For Replacing Mercury Lamps
    • Support U, V, B, G, Y, R Fluorescent Filters And Visable Light Bright Field
    • Large Power LED With Total Power 100W, 50000 Hours Ultra Long Life LED Lamp
    • Instant On-Off Without Preheating or Cooling Waiting For Easy Use
    • Adapted To Main Fluorescent Microscopes In Market, Customize Acceptable
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator

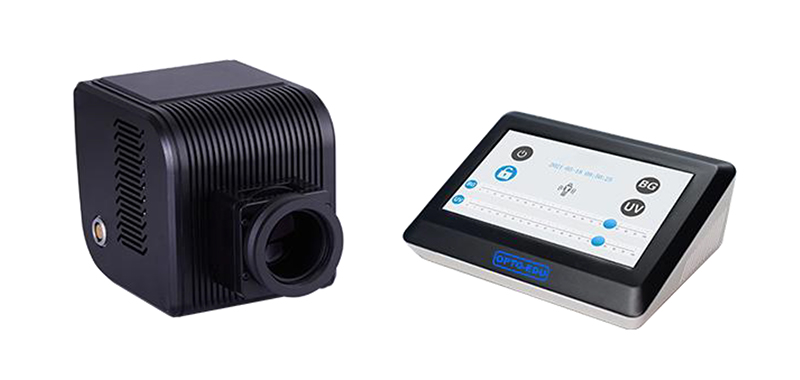

    The broad-spectrum high-power LED fluorescence illuminator MG-100 is a new generation of fluorescence microscope light source that replaces the mercury lamp. Based on innovative LED technology, it can achieve wide-spectrum excitation covering the UV to visible light spectrum. The touch screen controller is easy to use, can be turned on and used immediately, and the brightness can be freely adjusted. The service life can reach 50,000 hours.

    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
    A5F.4810 Broad Spectrum LED Fluorescent Illuminator Specification
    Light source hostBroad-spectrum cover excitation wavelength from 350nm~750nm, output intensity is adjustable
    UV lightingYes, separately control UV lighting
    BG lightingYes
    White lightingYes
    Light source control box100W
    Power line1.5 meter, 8P aviation head
    (With temperature control, protect the light source)
    Power control boxTouch screen show light intensity
    Control modeTwo independent controllers, Dimming range: 0-100%, Dimming accuracy:1%
    Brightness memoryTwo channels
    Heat dissipation modeForced air cooling
    SizeLight source:L180mm x W 114mm x H122mm
    Control box:L 196mm x W 137mm x H 65.5mm
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator

    Broad spectrum excitation

    The continuous output spectrum covers the 350-390nm ultraviolet band and the 410-760nm visible light band, which can meet the excitation requirements of common fluorescent dyes.

    UV band separate control

    The ultraviolet band and visible light band adopt two-way control, and the ultraviolet light can be turned off separately, which has lower phototoxicity to living cells. It can also be safely used as a bright field light source and fluorescent light source in material science metallographic microscopes.

    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator

    Benefits compared to mercury light source

    LED fluorescent light sources have obvious advantages over traditional mercury lamps. They do not require preheating, can be turned on and used immediately, and can be turned off at any time. The brightness can be controlled with an accuracy of 1%, and the brightness is stable and uniform. The lifespan can be up to 50,000 hours, saving maintenance costs.

    Matching world famous brands fluorescence microscopes

    It can be matched with fluorescence microscopes of four major brands including Olympus BX43, Nikon 80i, Leica DM2500, Zeiss Observer D1 and Chinese mainstream brands, with optional fiber optic output configuration to meet the needs of different users in scientific research, analysis and inspection.

    OPTO-EDU A5F.4810 Broad Spectrum LED Fluorescent Illuminator
