OPTO EDU A64.1099 Full Auto Semi APO Laser Confocal Microscope

Ask Lasest Price
Brand Name :	OPTO-EDU
Model Number :	A64.1099
Certification :	CE, Rohs
Price :	FOB $1~1000, Depend on Order Quantity
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

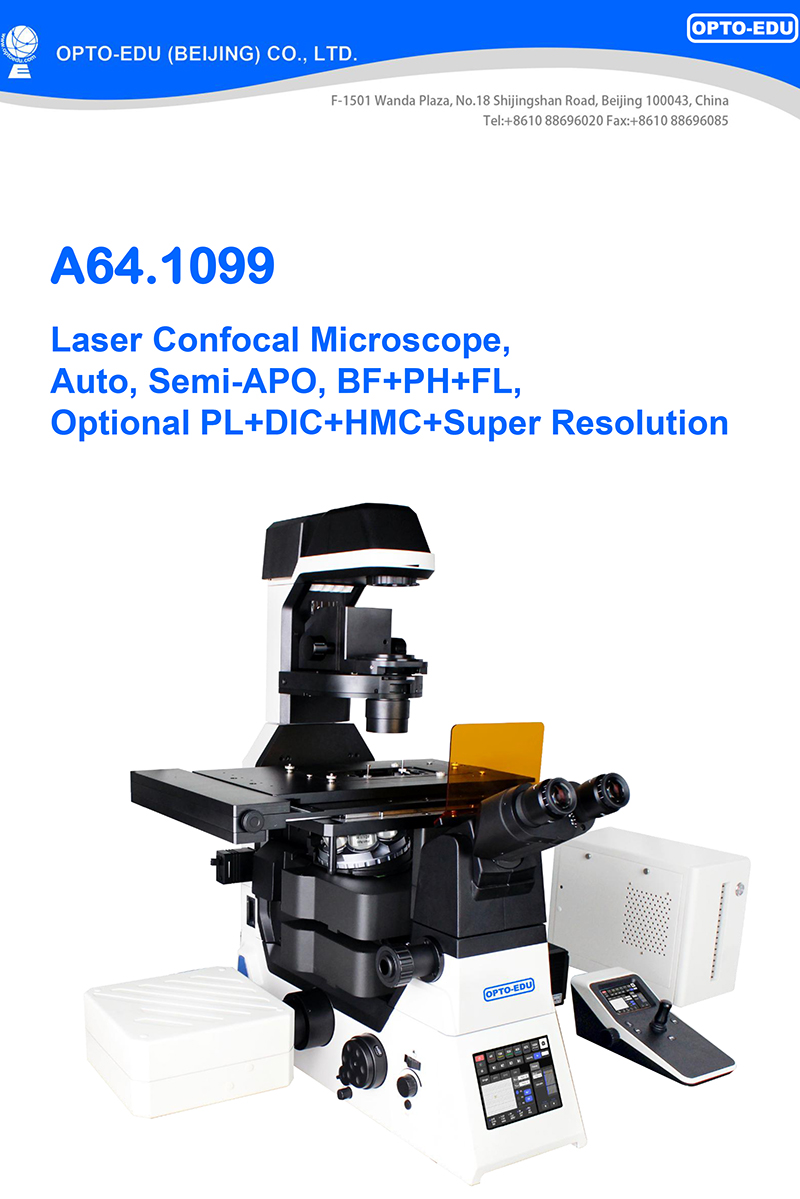

OPTO EDU A64.1099 Full Auto Semi APO Laser Confocal Microscope

4 Laser Source, 4 PMT Detector, Scan Head 8Kx8K, Scan Mode Support x,y,z,λ,T Combine Use
Motorized Pin Hole Stepless Adjustment, Confocal View Field Square Inscribed In Dia.25mm Circle
5.7" Touch Screen, Infintiy Plan Sem-APO Phase Contrast Objective 10x20x40x
Motorized Nosepiece, Motorized XYZ, Motorized Condenser, Motoried Fluorescent Turret
Motorized Control Light Split, 4 Modes: E100, LP100, RP100, E20/RP80

▶ High Speed Hardware Control

It empowers users with unprecedented convenience in operation, effortlessly digitizing management and

enabling precise control over multiple electric components within the microscope, such as objective lens

switching, focusing, condenser lens changing, and fluorescence module transitions.

▶ Multi Dimensional Imaging And Display

It is capable of memorizing custom observation modes and supports the combined use of X, Y, Z, λ, and T

scanning functions. Equipped with a variety of flexible shooting modes, including multi-channel fluorescence

imaging, time-lapse scanning, multi-position acquisition, Z-axis stacking, and panoramic stitching. These five

modes can be freely combined according to the user's actual needs, adapting to a wide range of complex and

diverse experimental application scenarios.

▶ High Performance Confocal Microscopy Platform

The A16.1099 offers a powerful and flexible imaging solution, establishing a robust and highly expandable

foundation for microscopic imaging within the A64.1099 system. With its 25mm field of view design,

it provides ideal observation conditions for large sample and high-throughput experimental research.

Integrating various microscopical techniques such as brightfield, fluorescence, differential interference

contrast, and phase contrast, users can freely opt for single-layer or dual-layer optical path configurations

based on their specific experimental needs to achieve optimal imaging results. The Adaptive Focus Shift

System (AFS) ensures precise focal plane positioning during continuous observations, thereby enabling

stable, continuous, and clear recordings of cellular dynamic behaviors.

▶ High Speed Electric Motor Control

The operation and switching speed of objectives, filter blocks, XY stage, and observation modules have been significantly enhanced, creating an effortless operating environment that enables researchers to focus on daily

observations and image capture. A joystick for intuitive manipulation of the stage allows the microscope to become an extension of your eyes and hands, making it user-friendly and natural to operate.

▶ Live Cell Culture System

Specifically designed for precise live cell imaging, this system accurately regulates the microscope platform temperature, ensuring constant temperature, humidity, and CO2 concentration within the culture dish, thereby providing an ideal cultivation environment for long-term experiments.

▶ AFS Ensures Stable And Reliable Imaging Performance.

The A16.1099 employs an independent focusing design, minimizing the impact of other mechanical

components on the Z-axis. It features a newly designed Adaptive Focus System (AFS), which intelligently

eliminates focus drift. Whether paired with high-magnification objectives has large numerical apertures or

utilized in conjunction with advanced imaging techniques such as super-resolution, confocal, or TIRF (Total

Internal Reflection Fluorescence), the system consistently delivers crisp, sharp images. This design ensures

the highest level of imaging stability and precision across a broad range of demanding applications in modern

microscopy.

OPTO EDU A64.1099 Full Auto Semi APO Laser Confocal Microscope

▶ High Power LED Fluorescence Illuminator

The LED 4 system enables up to 4-channel LED illumination, offering high compatibility with commonly used fluorescent dyes in the market. It features concentrated excitation energy and high brightness, fulfilling the fluorescence imaging requirements of routine experiments. With instant-on

capability, long service life, and no need for bulb replacement, it outperforms traditional mercury arc lamps in terms of reducing photobleaching and phototoxicity, making it particularly friendly to live cell samples. It is a sustainable, energy-efficient, and environmentally friendly microscope light source, ideal for low-carbon laboratory practices.

▶ Smart Interactive Operation

The A16.1099 innovatively incorporates a touch screen into its front panel, significantly enhancing user

interface convenience and expandability of functions. It retain the traditional microscope knobs and buttons

on both sides ensures intuitive control even in dark laboratory environments, allowing researchers to

concentrate on the core of their experiments without being hindered by complicated operations. This design

promotes an efficient and seamless microscopy observation experience.

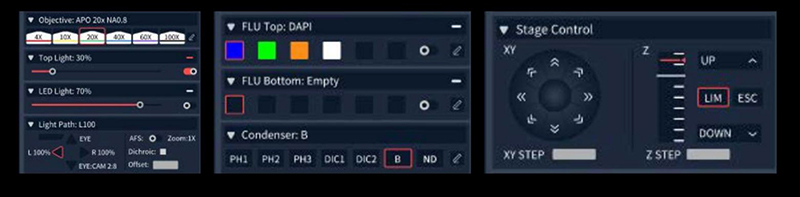

A64.1099 is equipped with a 5.6-inch touch screen display on the front panel.

Control of components such as objectives, dual-layer/single layer fluorescence filter wheels, the condenser, light intensity, electric stage speed, electric Z-axis speed, host spectrometer ports, ESC exit, FN keys, and objective parfocality is achieved through the touch interface. It also provides real-time display of various statuses including objective magnification, transmitted illumination brightness, fluorescence wavelengths, output ports, XYZ positions, and movement speeds.

▶ Large Aperture Observation Optical System

Equipped with a large-aperture objective lens, it

significantly increases light transmission, coupled with a

spacious CMOS sensor, effortlessly enabling brightfield

and fluorescence imaging across a vast field of view up

to FOV25mm. This broader perspective captures more

details, empowering you to comprehensively explore the

microscopic world and have complete control over your

scientific research endeavors.

▶ Large Aperture Reflective Fluorescence Illuminator

Specifically designed for a large field of view (FOV) of

25mm, this fluorescence imaging illumination apparatus

features a high-power LED light box, delivering broadband,

high-transmission illumination encompassing the ultraviolet

spectrum. It is also compatible with large-aperture

fluorescent filters, ensuring high signal-to-noise ratio

fluorescent images for detailed and accurate observations.

A64.1099 Laser Confocal Microscope			Cata. No.
Main Frame	Motorized Frame	●
	--5.7" Touch Screen, Show All Status, Control All Parts
	--Motorized Z Axis Control
	--Coded Brightness Adjust Knob
	--Coded Manual Intermediate Magnification 1x/1.5x Switch Button
	--Coded Manual Bertrand Lens Switch
	--F1 Button For Customized Function
	--Motorized Nosepiece Objective Switch Button x2
	--Motorized Condenser Button
	--Motorized Fluorescent Filters Switch Wheel x2
Eyepiece	WF10x/22mm Eyepiece, Diopter Adjustable +/-5°, High Eyepoint	●●	A51.1006-1022A
Head	10-40° Tilt Adjustable Binocular Head, IPD 47-78mm, Eyepiece Tube Dia. 30mm	●	A51.1099-B
Mag. Switch	Coded Manual Intermediate Magnification Switch Button 1x/1.5x On Right Side	●
Nosepiece	Motorized 6 Holes Nosepiece, With DIC Slot, M25×0.75	●	A54.1099-M
Nosepiece	Motorized 6 Holes Nosepiece, With Adaptive Anti-Focus Shift System (AFS)	o	A54.1099-MAFS

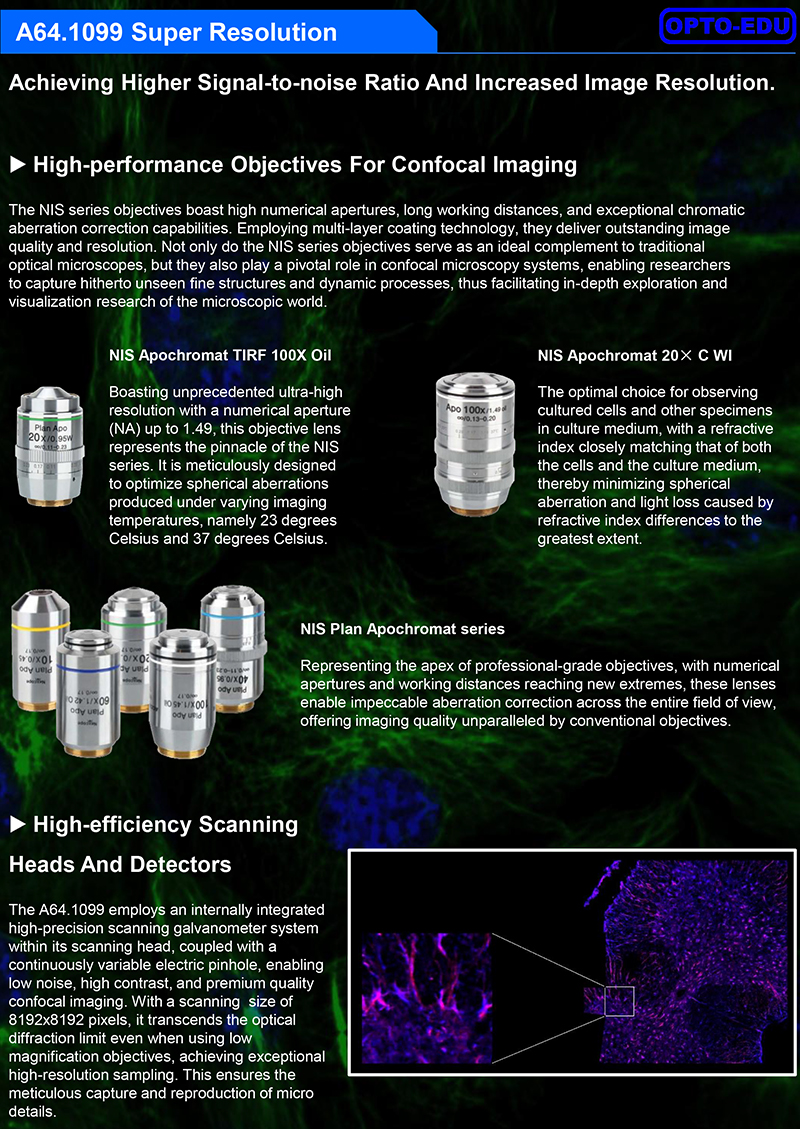

Objective	NIS60 Infinity Plan APO Achromatic Objective 4x, N.A.0.16, W.D.17mm	o	A52.1099-4
	NIS60 Infinity Plan APO Achromatic Objective 10x, N.A.0.45, W.D.4mm	●	A52.1099-10
	NIS60 Infinity Plan APO Achromatic Objective 20x, N.A.0.75, W.D.1.1mm	●	A52.1099-20
	NIS60 Infinity Plan APO Achromatic Objective 40x, N.A.0.95, W.D.019-0.21mm	●	A52.1099-40
	NIS60 Infinity Plan APO Achromatic Objective610x (Oil), N.A.1.42, W.D.0.25mm	●	A52.1099-100
	NIS60 Infinity Plan APO Achromatic Objective 100x(Oil), N.A.1.45, W.D.0.13mm	o	A52.1099-100
	NIS60 Infinity Plan APO Achromatic Objective 100x(Oil), N.A.1.49, W.D.0.09-0.16mm, Cover Glass 0.13~0.19(23C°), 0.14~0.20(37°C)	o	A52.1099-100A
	Motorized Working Stage, Grating Type, XY Moving 130x100mm, Size 445x300mm, Max Speed 20mm/s, Moving Precision 0.1μm, Repeatability 0.5μm	●
	Slide & Petri Dish Holder For Dia. 35-65mm	●
	4~1396 Holes Plate Holder	●
	Holder For 96 Holes Petri Dish	o	A54.1099-96
	Holer For For Olympus 6 Holes Petri Dish	o	A54.1099-6
Platform	Vibration Isolation Platform, 1000x1000mm	o	A54.1080
Focusing	Motorized Z Axis, Grating Type, Moving Range Up 8.5mm, Down 1.5mm, Min Step 0.02um, Repeatability 0.1um, 3 Level Focusing Knob: 2um/40um/200um Per Circle	●
Transmit Light	Kohler Illumination, With Field/Iris Diaphragm, 0~25° Titl Adjustable Arm	●
	Electrical Optical Brake Optional	●
	3W S-LED Lamp House	●
Condenser	Motorized 7 Holes Nosepiece Turret, 4 Holes For Phase Contrast, Hoffman, ND Filter, 3 Holes For DIC, ND Filters, Up/Down Range 66mm	●
Condenser	Long Working Distance Condenser NA=0.52,WD=30mm	●
Phase Contrast	10x-20x Phase Contrast Module	●
	40x Phase Contrast Module	●
	Coded Manual Bertrand Lens Switch In/Out Light Path, Focus Adjustable	●
DIC & Polarizing	DIC Set, Including Manual Splitter, With Optical Fiber, View Field 18mm, With DIC Prism Slide (Into Nosepiece DIC Slot), DIC Polarizer Slide, DIC Analyzer Slide	●	A5C.1099
	10x DIC Nocaridan Prism Slide, Insert In Nosepiece DIC Slot	●
	20x DIC Nocaridan Prism Slide, Insert In Nosepiece DIC Slot	●
	40x DIC Nocaridan Prism Slide, Insert In Nosepiece DIC Slot	●
	60x DIC Nocaridan Prism Slide, Insert In Nosepiece DIC Slot	●
	100x DIC Nocaridan Prism Slide, Insert In Nosepiece DIC Slot	o
	10x DIC Walker Prism, In Condenser Turret	●
	20x/40x/60x DIC Walker Prism, In Condenser Turret	●
	100x DIC Walker Prism, In Condenser Turret	o
Reflect Light	Epi Fluorescent LED Light Source, Optical Fiber Adapter, Iris Diaphragm, 2 Holes Filter Insert Plate	●
	Round Diaphragm	●
	Support 4 Fluorescent LED Light Source: 385, 470, 555, 630	●
	Light Source Controller Box	●
Fluorescent Turret	Motrozied 6 Holes Fluorescent Turret Disc, Motorized Shutter, With Cable	●
	FITC Filter, BP460-495, DM505, BA510-550	●
	TRTC Filter, BP528-553, DM565, BA578-633	●
	DAPI Filter, BP360-390, DM415, BA435-485	●
	Double Layer Fluorescent Turret Set, Including	o	A5F.1099
	Z Axis Heighten Base, Fluorescent Turnable Heighten Seat, Stage Heighten Seat	o	A5F.1099
Middle Part	For Light Split Status Detection: 100/0, 0/100	●
Photo Adapter	Motorized Light Split Switch Control By Front 5.7" Touch Screen:	●
	--Eyepiece 100%,
	--Left Photo Port 100%,
	--Right Photo Port 100%,
	--Eyepiece 20% + Right Photo Port 80%
	Left Photo Port, With Built-in 1x C-Mount	●	A55.1099-L1.0
	0.7x C-Mount For Left Photo Port	o	A55.1099-L0.7
	0.5x C-Mount For Left Photo Port	o	A55.1099-L0.5
	1x C-Mount For Right Photo Port,	●	A55.1099-R1.0
Laser Confocal	Left Side Confocal Port With 1x Lens	●
	Galvanometer Scanning Mirror, Motorized Pinhole Stepless Adjustment.	●
	4 Laser Source With AOTF, Max Laser Power 50mW,	●
	405nm, 488nm, 561nm, 640nm	●
	4 PMT Detection, Captuer Set, Control Set,	●
	EX 405,488,561,640
	Channel 1 EM:440-470
	Channel 2 EM:510-540
	Channel 3 EM:575-605
	Channel 4 EM:679-727

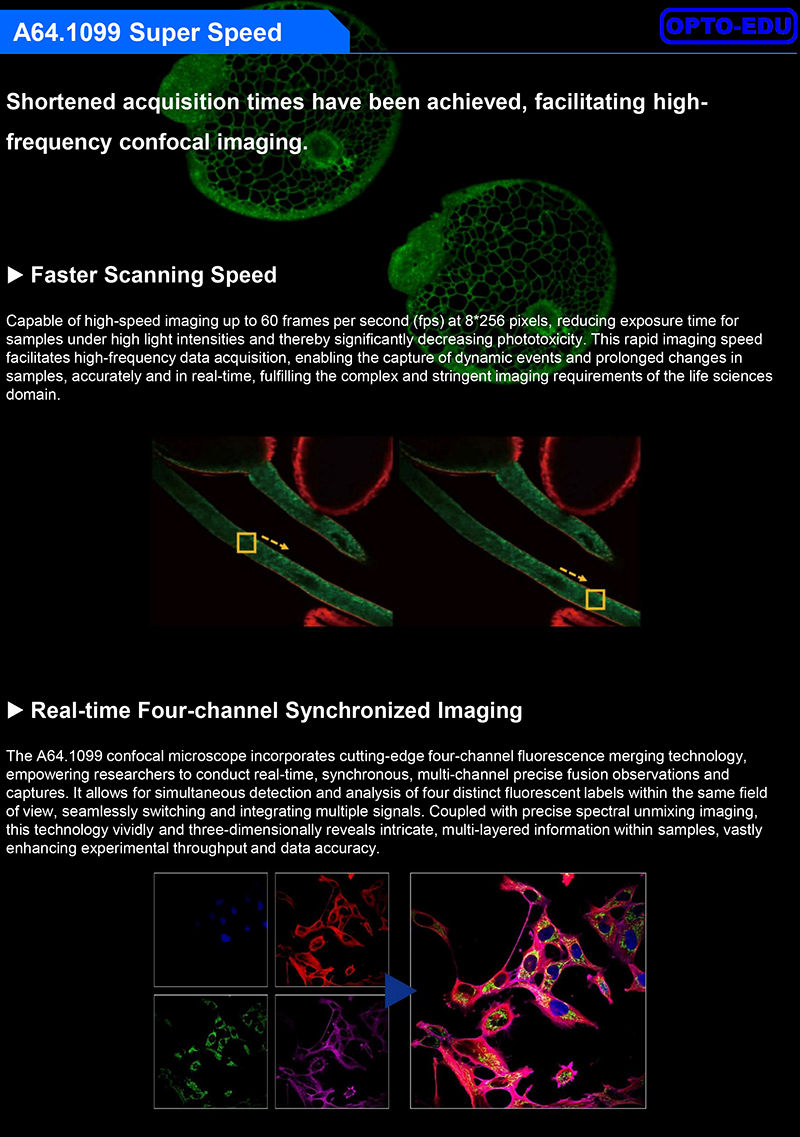

	Scan Head Max Pixel 8192x8192 (8K x8K)	●
	Scan Mode Support Combine Use of X, Y, Z, λ, T Scanning Functions
	Confocal Field of View: Square Inscribed In Dia. 25mm Circle
	Image Bit Depth: 16bits
Computer	i7-11700/16GB*2 DDR4/1TB SSD/RTX A2000 6G/USB PCIE Card, 4x USB3.0, WINDOWS 10 Professional, 3NBD/460W/ CD Driver, 4K Monitor	●
Camera	1.1" CMOS, Work With 1x C-Mount, FOV 18mm, 4K, FPS 23.4, Max FPS 46.3	●
Camera	24M Digital Camera, 2.7" CMOS, Work With 1.5x C-Mount (M52), 6K High Resolution, 15.3FPS@20M, Max FPS 114	o	A55.1099-24M
Joystick	Joystick For XYZ Motorized Control, Touch Screen Show Objectives, Fluorscent Filters, Customized Shortcut Button	●
Tool Kit	Full Set Tool Kit For Installation	●
Dust Cover	Dust Cover	●
Cable	USB2.0 Cable 1.5m, Motorized Control Data Cable	●

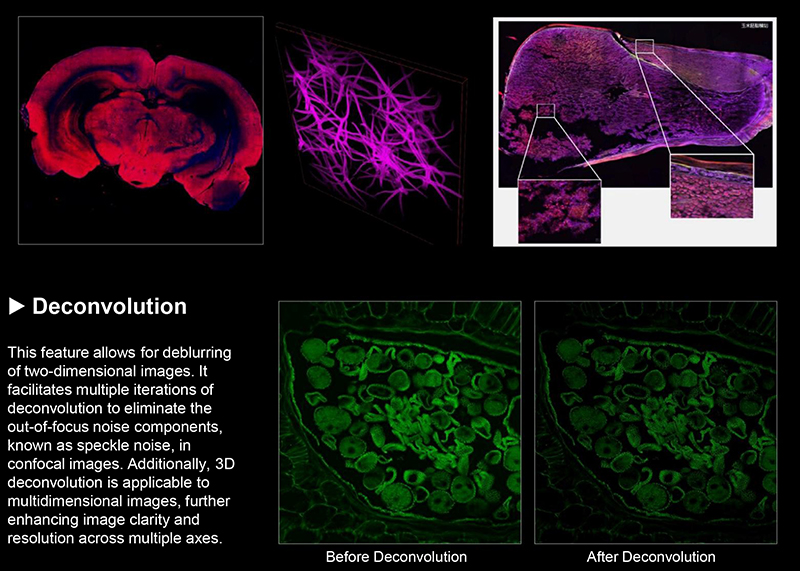

Software	Support Image & Video Capture, Control Microscope XYZ Stage, Objectives Switch, Image & Video Capture, Large Image Stitching, Extended Depth of Field (EDF), NOT Support Slide Scan Function	●

Multimodal	Ultra-Wide Field of View, Super-Resolution, Ultra-High Speed
>Brightfield, Phase Contrast, Fluorescence, DIC	>Field of View reaching up to 66μm x 66μm at 100X Magnification
>Laser Confocal Microscopy	>Lateral Resolution (2D-SIM) improved 2-fold, with a maximum achievable resolution of 86nm; Axial Super-Resolution (3D-SIM) advanced to 270nm.
>2D-SIM/3D-SIM/TIRF-SIM	>Real-time super-resolution imaging at video rate, delivering "what you see is what you get" experience.
