OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope

    Buy cheap OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope from wholesalers

    Buy cheap OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope from wholesalers
    • Buy cheap OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope from wholesalers

    OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A23.3652
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope

    • Continous Zoom 0.65-5.2x Binocular & Trinocular Head, Zoom Ratio 1:8
    • Standard 6.5x-52x, Up To 3.25x-260x With Optional Eyepieces & Auxiliary Objectives
    • High Eyepoint, Dia.30mm WF10x/22mm, Optional WF15x, WF20x, WF25x
    • Working Distance 118mm, Up To 42~218mm With Auxiliary Objectives
    • 35 Kinds Stand Optional, Details See A54.3630
    OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope
    OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope
    A23.3652 Zoom Stereo Microscope, 0.65-5.2x
    Optical SystemGreenough
    HeadBinocular / Trinocular Head, Interpupillary Distance 55~75mm
    Magnification0.65x~5.2x Continuous Zoom Body, Total Magnification 3.25x~260x (With Optional Eyepiece & Lens)
    Zoom Ratio1:8
    EyepieceWF10x/24mm, Dia.30mm, High Eyepoint, Diopter Adjustable
    Max Field of ViewФ42 mm
    Working Distance118mm (1x), Optional 42~218mm
    Bracket Holder HoleInner Dia. Ф76mm

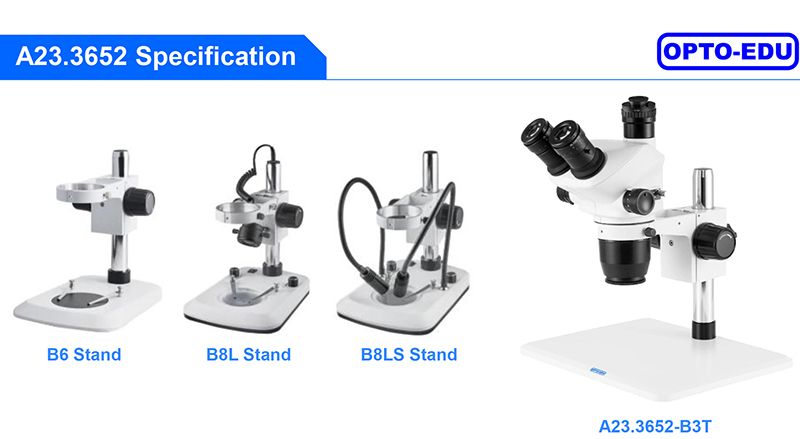

    ModelA23.3652-B6T
    Trinocular Head, Light Split Switch 100:0/0:100
    B6 Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, No Light Source,
    0.5x C-Mount
    A23.3652-B8LT
    Trinocular Head, Light Split Switch 100:0/0:100
    B8L Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up/Bottom 3W LED,
    0.5x C-Mount
    A23.3652-B8LST
    Trinocular Head, Light Split Switch 100:0/0:100
    B8LS Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up Dual Pipe LED Brightness Separately Adjustable, Bottom 3W LED,
    0.5x C-Mount
    A23.3652-B3T
    Trinocular Head, Light Split Switch 100:0/0:100
    B3 Pole Stand, Size 380*260*20mm, Pole Dia.32mm, Height 240mm, No Light Source,
    0.5x C-Mount
    OptionalEyepiece WF15x, WF20x, WF25x, A51.3622
    Auxiliary Lens 0.5x, 0.75x, 1.5x, 2.0x, A52.3652
    C-Mount 1.0x, A55.3623
    35 Kinds of Stands & Brackets, See A54.3630
    A23.3652 Optical Data Sheet
    Auxiliary Objective Lens0.5x0.75x1x (Standard)1.5x2.0x
    Working Distance218 mm140 mm118 mm68 mm42mm
    WF10x/24mmMagnification3.25x~26x4.88x~39x6.5x~52x9.75x~78x13x~104x
    Field of View(mm)73.85~9 .2349.23~6.1536.92~4.6224.62~3.0818.46~2.31
    WF15x/16mmMagnification4.88x~39x7.31x~58.5x9.75x~78x14.63x~117x19.5x~156x
    Field of View(mm)49.23~6.1532.82~4.124.62~3 .0816 .41~2.0512.31~1.54
    WF20x/12mmMagnification6.5x~52x9.75x~78x13x~104x19.5x~156x26x~208x
    Field of View(mm)36.36~4.6224.62~3 .0818 .46~2 .3112 .31~1.549 .23~1.15
    WF25x/10mmMagnification8.13x~65x12.19x~97.5x16.25x~130x24.38x~195x32.5x~260x
    Field of View(mm)30.77~3 .8420.51~2.5615 .38~1 .9210.26~1.287.69~0.96
