    OPTO-EDU A23.3650 0.7-5.0x 1:7.1 Zoom Stereo Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A23.3650
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A23.3650 0.7-5.0x 1:7.1 Zoom Stereo Microscope

    • Continous Zoom 0.7x-5.0x Binocular & Trinocular Head, Zoom Ratio 1:7.1
    • 7x-50x, Up To 3.5x-250x With Optional Eyepieces & Auxiliary Objectives
    • High Eyepoint, Dia.30mm WF10x/22mm, WF15x, WF20x, WF25x, WF30x Optional
    • Working Distance 100mm, Up To 30~165mm With Auxiliary Objectives
    • 35 Kinds Stand Optional, Details See A54.3630
    OPTO-EDU A23.3650 0.7-5.0x 1:7.1 Zoom Stereo Microscope
    OPTO-EDU A23.3650 0.7-5.0x 1:7.1 Zoom Stereo Microscope

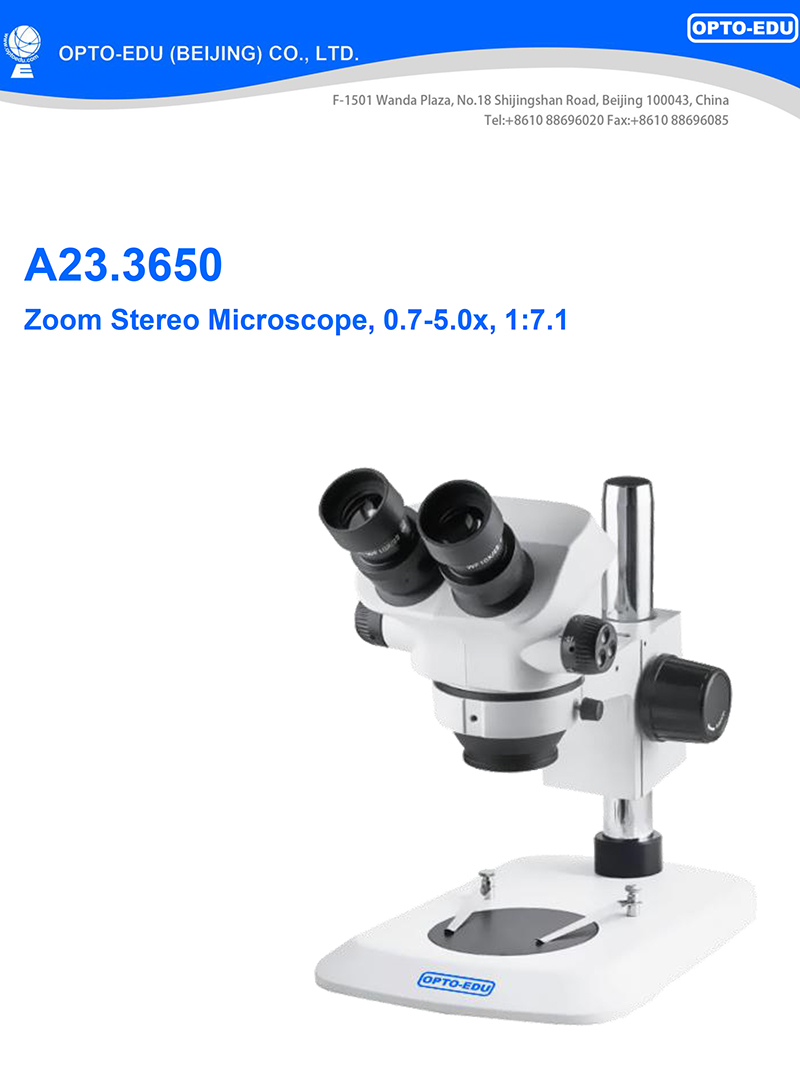

    A23.3650 Zoom Stereo Microscope, 0.7-5.0x, 1:7.1
    Optical SystemGreenough
    HeadBinocular / Trinocular Head, Interpupillary Distance 55~75mm, Both Eye Tube Diopter Adjustable +/-5°
    Magnification0.7x~5.0x Continuous Zoom Body, Total Magnification 3.5x~250x (With Optional Eyepiece & Lens)
    Zoom Ratio1:7.1
    EyepieceWF10x/22mm, High Eyepoint, Dia.30mm
    Max Field of ViewФ35 mm
    Working Distance100mm, Optional 30~165mm
    Bracket Holder HoleInner Dia. Ф76mm
    ModelA23.3650-B6T
    Trinocular Head, Light Split Fixed 4/6
    B6 Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, No Light Source,
    0.5x C-Mount
    A23.3650-B8LT
    Trinocular Head, Light Split Fixed 4/6,
    B8L Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up/Bottom 3W LED,
    0.5x C-Mount
    A23.3650-B8LST
    Trinocular Head, Light Split Fixed 4/6,
    B8LS Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up Dual Pipe LED Brightness Separately Adjustable, Bottom 3W LED,
    0.5x C-Mount
    A23.3650-B3T
    Trinocular Head, Light Split Fixed 4/6,
    B3 Pole Stand, Size 380*260*20mm, Pole Dia.32mm, Height 240mm, No Light Source,
    0.5x C-Mount
    OptionalEyepiece WF15x, WF20x, WF25x, A51.3621
    Auxiliary Lens 0.5x, 0.7x, 1.5x, 2.0x, A52.3621
    C-Mount 0.35x, 1.0x, A55.3623
    35 Kinds of Stands & Brackets, See A54.3630
    A23.3650 Optical Data Sheet
    EyepieceAuxiliary Objective Lens
    0.5x0.7x1.0x (Standard)1.5x2x
    Working DistanceWorking DistanceWorking DistanceWorking DistanceWorking Distance
    165mm117mm100mm45mm30mm
    MagnificationViewMagnificationViewMagnificationViewMagnificationViewMagnificationView
    WF10x/22mm3.5x66mm4.9x47.1mm7x33mm10.5x22mm14x16.5mm
    25x9mm35x6.4mm50x4.5mm75x3mm100x2.3mm
    WF15x/15mm5.25x45mm7.35x32.11mm10.5x22.5mm15.75x15mm21x11.25mm
    37.5x6.1mm52.5x4.36mm75x3.06mm112.5x2.05mm150x1.53mm
    WF20x/12mm7x33mm9.8x23.6mm14x18mm21x11mm28x8.3mm
    50x4.5mm70x3.2mm100x2.25mm150x1.5mm200x1.1mm
    WF25x/9mm8.75x27mm12.25x19.2mm17.5x13.5mm26.25x9mm35x6.75mm
    62.5x3.68mm87.5x2.62mm125x1.84mm187.5x1.23m250x0.94mm
