| Items | A16.2603-UL LED Fluorescent Microscope Specification | | Cata. No. |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°,
Interpupilary Distance 48-76mm,
Eyepiece Tube Dia.30mm | ● | A53.2623-B |
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°,
Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm | ○ | A53.2623-T |

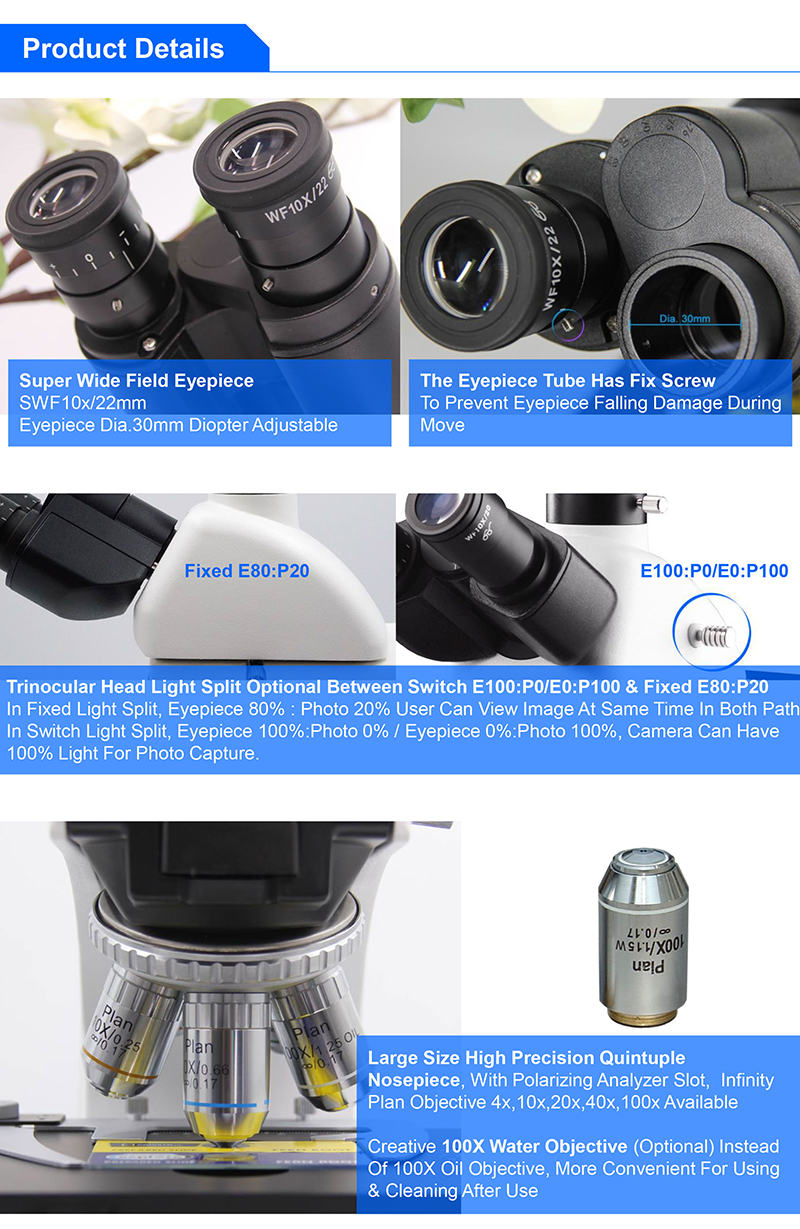

| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ●● | A51.2621-1022 |
| Nosepiece | Quintuple | ● | A54.2610-N01 |
| Infinity Plan Objective | PLAN 2.5X/0.07,W.D.=8.47mm | ○ | A52.2606-2.5 |
| PLAN 4X/0.10,W.D.=12.10mm | ● | A52.2606-4 |
| PLAN 10X/0.25,,W.D.=4.64mm | ● | A52.2606-10 |
| PLAN 20X/0.40(S),W.D.=2.41mm | ● | A52.2606-20 |
| PLAN 40X/0.66(S),W.D.=0.65mm | ● | A52.2606-40 |
| PLAN 60X/0.80(S),W.D.=0.33mm | ○ | A52.2606-60 |
| PLAN 100X/1.25(S,Oil),W.D.=0.12mm | ● | A52.2606-100 |
| PLAN 100X/1.15(S,Water),W.D.=0.19mm | ○ | A52.2606-100W |
Infinity Plan
Semi-APO Fluorescent Objective | UplanFLN 4x, N.A.0.16,W.D.=17.151mm | ○ | A5F.2611-4 |
| UplanFLN 10x, N.A.0.30,W.D.=7.68mm | ○ | A5F.2611-10 |
| UplanFLN 20x, N.A.0.50,W.D.=1.96mm | ○ | A5F.2611-20 |
| UplanFLN 40x, N.A.0.75,W.D.=0.78mm | ○ | A5F.2611-40 |
| UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm | ○ | A5F.2611-100 |
| Working Stage | Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range
77×52mm, Double Slide Holder | ● | A54.2601-S10 |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm,
Fine Focusing Div. 0.002mm | ● | |
| Condenser | Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm | ● | A56.2614-07a |
| Illumination | Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm | ● | A56.2650-6V30WH |
Transmit 3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V240V,
Output 5V1A, Support Power Bank Supply For Outdoor Use | ○ |
A56.2650-
3WLED |
| Field Diaphragm | For Kohler Illumnation | ● | A56.2615-BK |
| Filter | Dia.45mm, Blue | ● | A56.2616-45B |
| Dia.45mm, Green | ○ | A56.2616-45G |
| Dia.45mm, Yellow | ○ | A56.2616-45A |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | ○ | A5D.2610-BK |
| Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective | | A5D.2610-BKW |
| Polarizing | Analyzer + Polarizer Set | ○ | A5P.2601-BK |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide
10x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | A5C.2602-10 |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide
20x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | A5C.2602-20 |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide
40x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | A5C.2602-40 |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide
100x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | A5C.2602-100 |
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase
Contrast Condenser 5-Holes, Telescope 11x, Green Filter | ○ | A5C.2603-BK |
| Fluorescence | Newly Design 2025!
Ultra LED Inverted Fluorescent Microscope With
All-in-One Filter + 5W LED System
The LED Fluorescent Light Source And The Fluorescent Filter Are
Fixed as One Unit And Move Together, Switch Easily And Providing An
Ultra-high Brightness Fluorescent Light Source.
A16.2603-UL2 B,G China Fluorescent Filters
A16.2603-UL3 B,G,UV China Fluorescent Filters
A16.2603-UL4 B,G,U,UV China Fluorescent Filters | ● | A5F.2610-2
A5F.2610-3
A5F.2610-4 |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | A55.2601-75 |
| C-Mount 1.0x, Focus Adjustable | ○ | A55.2601-10 |
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm | ○ | A55.2610 |

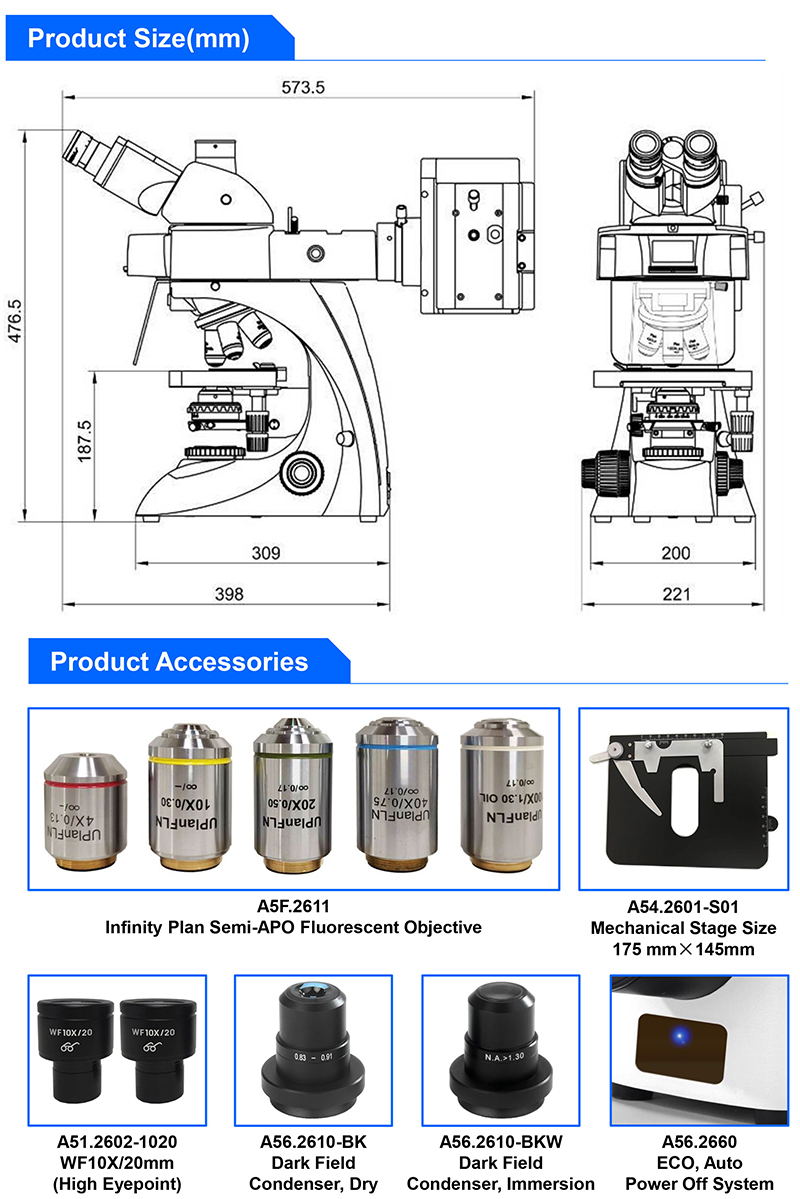

| Package | Microscope 55*27*36cm, 11kg, Fluorescent Unit 52*47*24cm, 5kg |
| Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories | | |
