    OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A63.7220
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x

    • Magnification 1x~1500000x, TEM Line Resolution 0.23nm, TEM Information Limit 0.2nm
    • Accelarting Voltage 80~200kV, Eccentric Goniometer 5-axis Motorized, Compu Stage Double-tilt Holder
    • Oil Free Vacuum Pump, Gun Vaccum<1x10-6Pa, Column Vaccum<5x10-5Pa
    • Bottlm Mounted CMOS 20M, 5120x3840, Including Computer, Software, 1 Year Warranty
    • Probe Current ≥1.5nA/1nm, Beam Current ≥50nA Available at 200kV, Upgradable STEM, Cryo Samples, Tomography, EDS
    OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x
    OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x

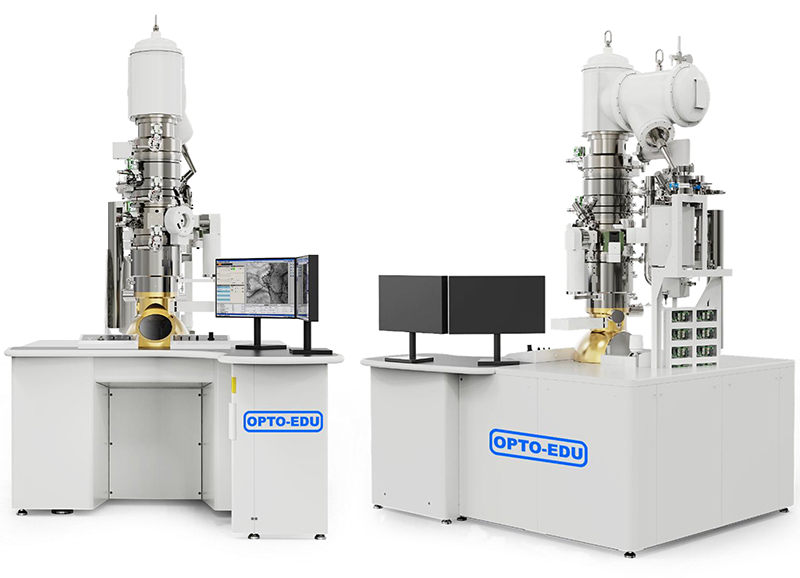

    A63.7220 is a Field Emission Transmission Electron Microscope (TEM), 200KV, 1500000x, independently developed & designed for materials science, semiconductors and other fields. This electron microscope is designed to be easy to operate and highly stable, and can provide solutions such as in-situ, high-resolution and microcrystal electron diffraction.

    Friendly DesignRefined appearance and UI design, brand-new vision, meet the operation needs of users of different levels; provide operation video tutorials.
    New Lens Barrel DesignIt adopts a four-stage condenser system design, which can be independently controlled, which is conducive to controlling the electron beam convergence angle and intensity for various imaging studies; it is also equipped with a large pole shoe, which can perform in-situ characterization under a variety of conditions.
    High Quality ImagingThe electron microscope is equipped with a highly sensitive CMOS camera, which can easily obtain high-quality images.
    OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x
    OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x

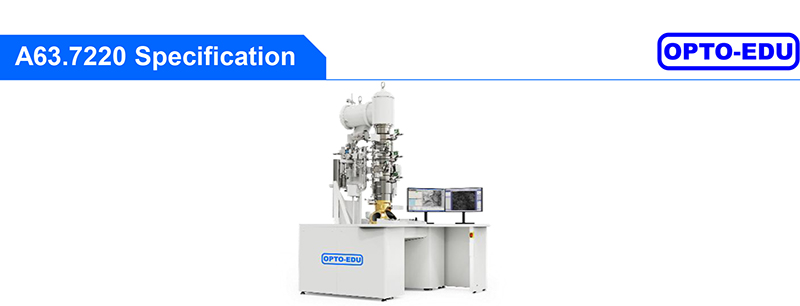

    Field Emission Transmission Electron Microscope (TEM), 200KV, 1500000x
    Accelerating Voltage200 kV, Factory Aligned at 80 kV and 200kV
    Electron SourceHigh Brightness Schottky Field Emitter
    Probe Current≥ 1.5nA/1nm Probe
    Beam CurrentMaximum ≥ 50nA At 200kV
    TEM Line Resolution0.23 nm
    TEM Information Limit0.2 nm
    Magnification20x to 1500000x.
    FEG Gun Vacuum< 1x10-6Pa,
    TEM Column Vacuum<5x10-5Pa
    GoniometerFully Eccentric Goniometer With All 5-Axis Motorized
    Camera20M Speed Enhanced Bottom Mounted CMOS Camera EMSIS XAROSA 5120x3840
    StageCompu Stage Double-tilt Holder
    X ±1mm, Y ±1mm, Z ±0.35mm, α ±25°, β ±25°
    UpgradableSTEM, Cryo Samples, Tomography, EDS Analysis
    WarrantyWarranty One (1) Year.
    Optional Accessories
    InstallationOn-Site Installation & Operational Training Service Pack Optional
    STEMPNDetector Annular STEM Detector, Advanced Module ADV-STEM (Including STEM-HAADF and BF)
    EDSBruker XFlash 7T30S
    Tomography Holder1..Sample size: φ3mm.
    2. Alpha tilt range: ±70°.
    3. Resolution: ≤0.34nm (in any direction).
    4. Drift rate: <1.5nm/min.
    5. Field of view: ≥1.6mm@70°tilt.
    Cryo-Sample HolderCryo-Sample holder:
    1. Sample Size: φ3mm.
    2. Alpha Tilt Range: ±70°.
    3. Resolution: ≤0.34nm (In Any Direction).
    4. Drift Rate: <1.5nm/min.
    5. Field of View: ≥1.6mm@70°tilt.
    Molecular Pumping Station
    1. Ultimate Vacuum Better Than 10e-7 mbar.
    2.Multi-functional: Sample And Rod Storage, In-situ Rod Leak Testing.
