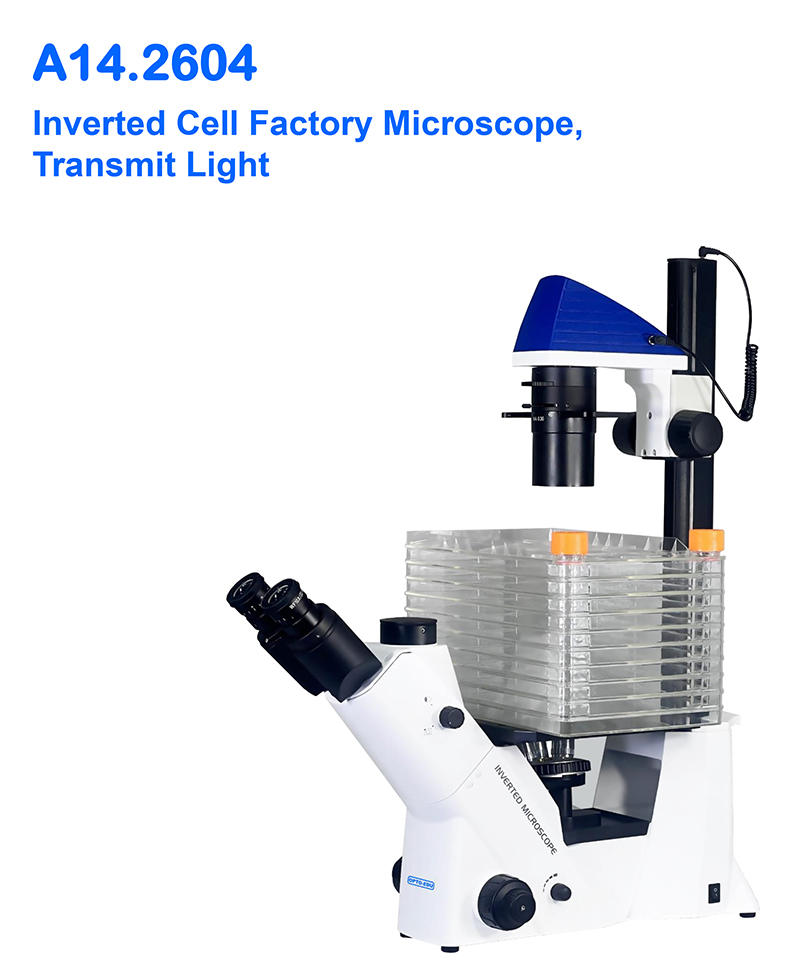

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.2604
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope

    Head & Eyepiece

    Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80; WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope

    Condenser & Light Source

    Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm

    Koehler Illumination 10W LED

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope

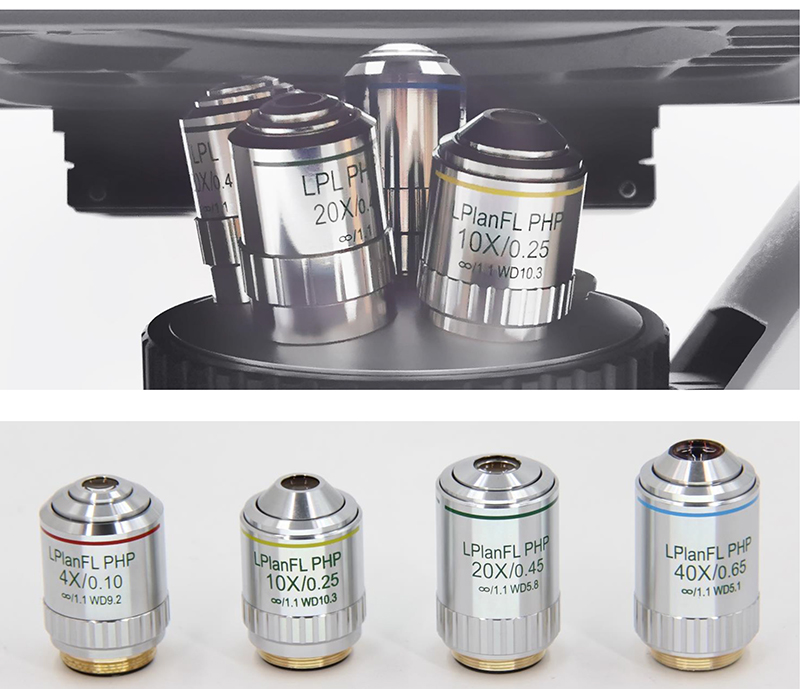

    LWD Infinity Plan PH+BF FL Semi-APO Objectives

    10x / 4x (Optional), 20x (Optional), 40x (Optional)

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope

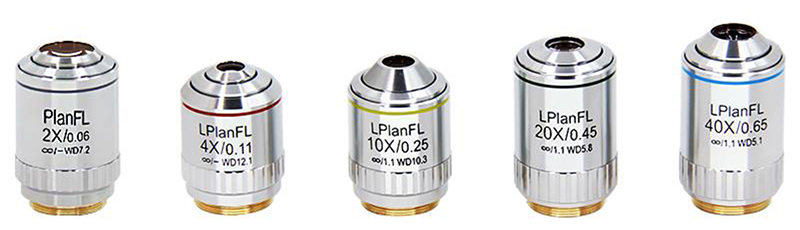

    Infinity Plan LWD Semi-APO Fluorescent Objective

    4x, 20x, 40x / 2x (Optional), 10x (Optional)

    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
    A14.2604 Inverted Cell Factory Microscope Specification Cata. No.
    EyepieceWF10x22mm●●A51.2621-1022
    LWD Infinity Plan ObjectivesPlan FL 2x0.06, W.D.=7.2mmA5F.2635-2
    L Plan FL 4x0.11, W.D.=12.1mmA5F.2635-4
    L Plan FL 10x0.25, W.D.=10.3mmA5F.2635-10
    L Plan FL 20x0.45, W.D.=5.8mmA5F.2635-20
    L Plan FL 40x0.65, W.D.=5.1mmA5.2635-40
    LWD Infinity Plan Phase Contrast ObjectivesL Plan FL PHP 4x0.10, W.D.=9.2mm
    (Both for Bright Field & Phase Contrast)
    A5C.2635-4
    L Plan FL PHP 10x0.25, W.D.=10.3mm
    (Both for Bright Field & Phase Contrast)
    A5C.2635-10
    L Plan FL PHP 20x0.45, W.D.=5.8mm
    (Both for Bright Field & Phase Contrast)
    A5C.2635-20
    L Plan FL PHP 40x0.65, W.D.=5.1mm
    (Both for Bright Field & Phase Contrast)
    A5C.2635-40
    Phase ContrastAnnular Spot 10x/20x/ 40xA5C.2611-10/20/40
    Annular Spot 4xA5C.2611-4
    Seidentopf Trinocular HeadInclined 45°, interpupilary distance: 48-76mm
    Light distribution (both):
    100: 0(100% for eyepiece)
    80:20 (80% for trinocular head, and 20% for eyepiece)
    A53.2643
    Inclined 45°, interpupilary distance: 48-76mm
    Light distribution (both):
    100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head)
    A53.2643-B
    NosepieceQuintupleA54.2610-N925
    Mechanical StageStage size: X×Y: 210x241mm, Round slide size:Φ110mm,A54.2601-D4
    Attached mechanical stage
    (available for 96 holes plate, moving range X×Y:128×80mm.)
    A54.2605
    Focusing UnitCoaxial coarse and fine focusing knobs
    Coarse stroke 10mm, Fine scale 2μm, coarse with tension adjustment

    Culture Dish Holder65mm+35mmA54.2606-65/35
    54mmA54.2606-54
    blood cell counterA54.2606-BC
    Glass HolderA54.2606-GL
    Universal HolderA54.2606-UH
    CondenserLong working distance, Quickly detachable , N.A.0.3,
    Working distance: 72-365mm (with condenser), 480mm(without condenser).
    A56.2614-D4
    Koehler Illumination10W LED (input voltage:100V240V)
    Filter(Φ34)BlueA56.2616-34B
    GreenA56.2616-34G
    Amber /GreyA56.2616-34A/34N
    C-mount1x /0.35x /0.5x /0.75x C-Mount (focus adjustable)A55.2601-10/35/05/75
    Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
