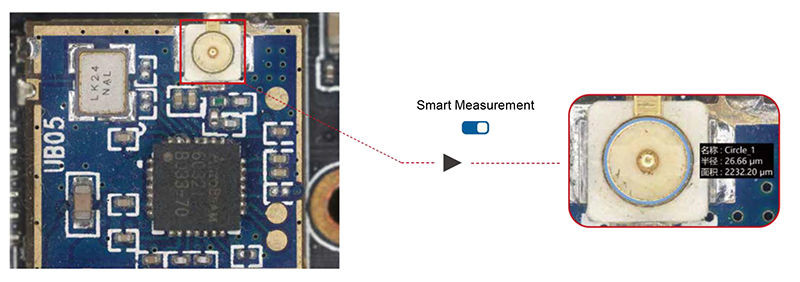

Intelligent Planar Measurement

● In order to solve the measurement errors caused by traditional manual selection of measurement points, the M20.0910 integrates advanced edge grayscale recognition. Users only need to select the area to be measured, and the software automatically identifies feature positions and measures feature geometry information. Tis not only ensures measurement consistency between different operators but also avoids errors caused by manual operations, thus improving measurement accuracy and efficiency.

2D/3DMeasurement, and Intelligent Analysis

Rich Measurement Tools

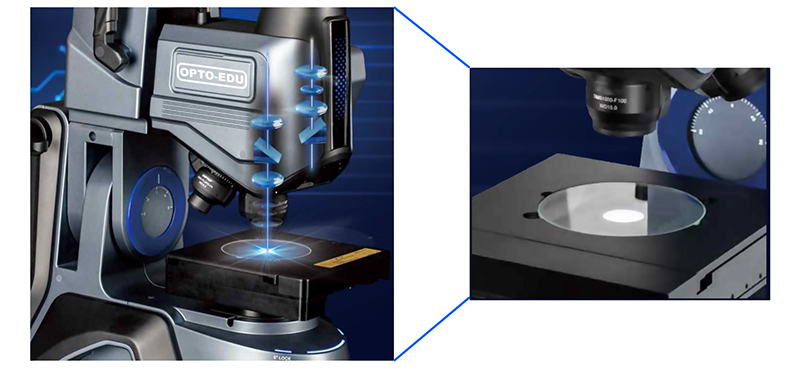

● Telecentric System: Through specific optical design, it places the entrance pupil of the lens at the focal plane to achieve low distortion and stable magnification. This improves imaging accuracy and ensures the accuracy and consistency of measurement results.

● 2D Measurement Tool Set: Provides diverse measurement functions such as point-to-point,

point-to-line, parallel lines, angles, and areas, supports exporting data to Excel. Users can also customize settings (font size, line color, unit display) for an optimized measurement experience.

● Automatic Template Measurement: Create and save measurement parameters that you frequently use for quick and accurate repetitive application.

● 3D Measurement Functionality: Easily calculate the volume, surface area, and height of objects.

● Contour Measurement: Precisely measure and analyze the shape of three-dimensional reconstructed objects.

● Particle Counting and Analysis: Combining intelligent algorithms with grayscale recognition technology, automatically separate overlapping objects, and quickly count the particle area and quantity in the target area.
