OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH

    Buy cheap OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH from wholesalers

    Buy cheap OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH from wholesalers
    • Buy cheap OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH from wholesalers
    • Buy cheap OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH from wholesalers
    • Buy cheap OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH from wholesalers

    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A33.2607
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH

    • Cell Imaging System With High Quality Infinity Corrected Optical System
    • 11.6" Win11 Tablet + 6.3M USB3.0 Digital Camera, or 11.6" LCD + 4K HDMI Digital Camera
    • LWD Infinity Plan Semi-APO Fluorescent BF & PH 4x,10x,20x,40x Objectives
    • LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser
    • Working Stage 180x155mm, LWD Condenser N.A.0.32, Transmit 5W LED Koehler Illumination
    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH
    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH
    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH
    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH
    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH

    Objectives In Standard Outfit

    LWD Infinity Plan FL Semi-APO Objectives 10x,40x

    LWD Infinity Plan FL Semi-APO Phase Contrast Objectives 20x

    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH

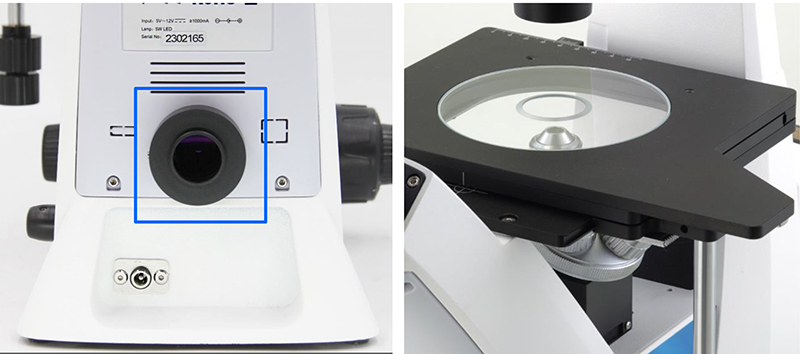

    Photo Tube With C-Mount 0.65x

    Built-in 0.65x C-Mount In Back of Microscope Body

    Triple Layers Mechanical Stage With Glass Plate (Standard Outfit)

    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH

    Mechanical Stage 180x155mm

    Metal Plate Dia.110mm, Inner Dia.25mm (Optional)

    Fixed Stage Size 180x203mm (Optional)

    Glass Plate Dia.110mm, Inner Dia.30mm

    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH
    OPTO EDU A33.2607 LCD Cell Image Inverted Microscope Semi APO BF+PH
    ItemInverted Metallurgical/Biological Microscope SpecificationA33.2607
    -D
    A33.2607
    -H
    Order NO.

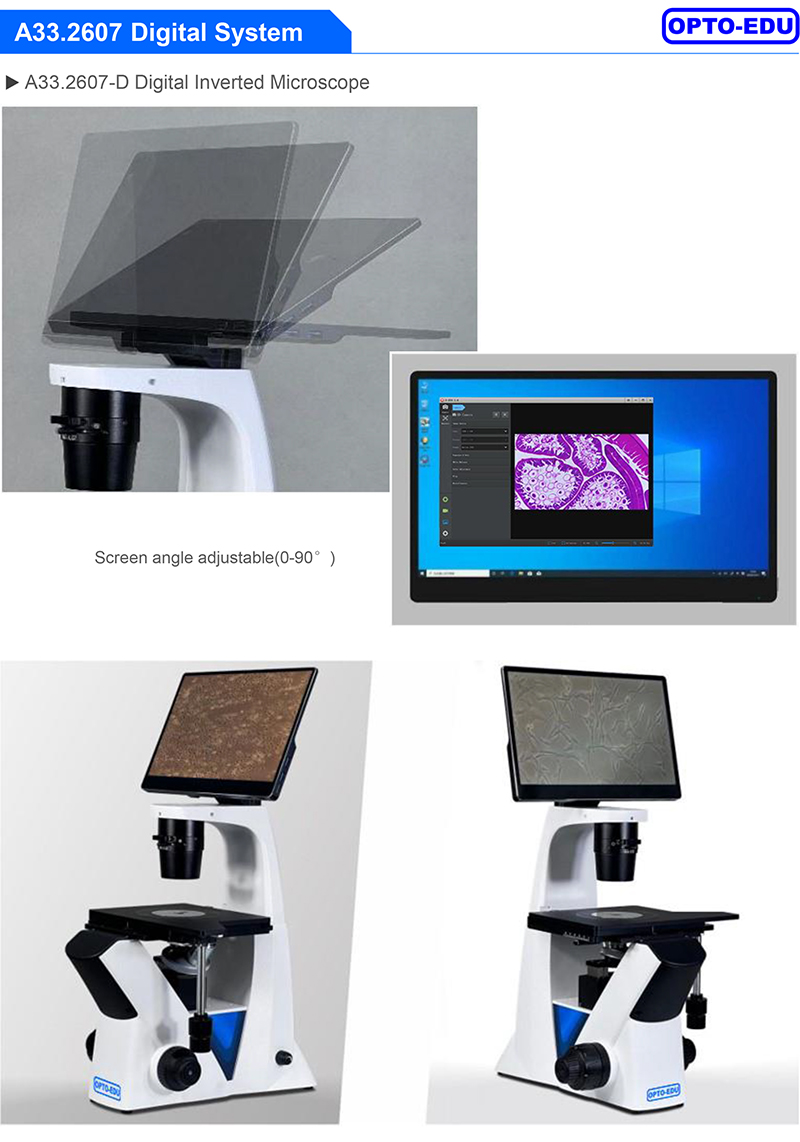

    Digital Camera--11.6" Win11 Tablet, 8G+128G, Image View Measure Software, Support Bluetooth, WIFI, USB3.0, Net.
    --6.3M USB 3.0 High Speed 60 FPS Digital Camera

    HDMI Camera--11.6" IPS LCD Screen, Resolution 1920*1080p
    --4K HDMI Digital Camera, Output HDMI+USB+WIFI6 +Net, Built-in Menu For Photo, Video, Measure, Control by Mouse & Keyboard

    LWD Infinity Plan FL Semi-APO ObjectivesL Plan FL 4x/0.11 W.D.=12.1mmA5F.2635-4
    L Plan FL 10x/0.25 W.D.=10.3mmA5F.2635-10
    L Plan FL 20x/0.45 W.D.=5.8mmA5F.2635-20
    L Plan FL 40x/0.65 W.D.=5.1mmA5F.2635-40
    LWD Infinity Plan
    FL Semi-APO
    BF+PH
    Objectives
    For Both Bright Field & Phase Contrast View
    L Plan FL PHP 4x/0.10 W.D.=9.2mmA5C.2635-04
    L Plan FL PHP 10×/0.25 W.D.=10.3mmA5C.2635-10
    L Plan FL PHP 20x/0.45 W.D.=5.8mmA5C.2635-20
    L Plan FL PHP 40x/0.65 W.D.=5.1mmA5C.2635-40
    Phase Contrast Slide10xA5C.2611-B10
    20x/40x, For Both 20x And 40xA5C.2611-B2040
    NosepieceQuadrupleA54.2610-N03
    StageThree-layer Mechanical Stage, Size 180x155mm,
    Moving Range 75×40mm, Scale 0.1mm,
    Round Hole Size Dia.110mm
    A54.2600-01
    Fixed Stage, Size 180×203mm,
    Round Hole Size Dia.110mm
    A54.2600-02
    Glass Plate, External Diameter Dia.110mm, Inside Diameter Dia.30mmA54.2600-03
    Metal Plate, External Diameter Dia.110mm, Inside Diameter Dia.25mmA54.2600-04
    CondenserLong Working Distance, N.A.0.32, Working Distance 48mm, With Slide Hole For Phase Contrast SlideA56.2614-D3
    FocusingCoaxial Coarse And Fine Focusing Unit, Coarse Stroke: 10mm, Fine Stroke Per Rotation: 0.2mm, Fine Division 2 μm.
    Illumination5W LED Warm Lamp, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor UseA56.2612-5WP
    FilterGreen, Dia.21mm, With Filter Slider, or Put on Phase Contrast SlideA56.2616-21G
    Grey, Dia.21mmA56.2616-21N
    Blue, Dia.21mmA56.2616-21B
    Yellow, Dia.21mmA56.2616-21A
    C-mountBuilt-in C-Mount 0.65x
    Packing Size515x480x315mm, Gross Weight 9kgs, Net Weight 7kgs
    Note: "" Is Standard outfits, "" Is Optional Accessories.
