    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.2240
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU

    A59.2240 Auto Focus HDMI+WIFI+SD Camera, Mouse Measure

    • Auto Focus HDMI+WIFI+SD Card Digital Camera With Sony CMOS Sensors Resloution 1080p/5.0M
    • Auto/Manual Focus With The Movement of The Sensor, Record 1080p Video ASF Format to SD Card
    • HDMI/WiFi Output Simultaneously, With Built-in Mouse Control Panel For HDMI, Image View For WIFI
    • Ultra-Fine TM Color Engine With Perfect Color Reproduction Capability (WIFI)
    • Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDUA59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
    Cata. No. Sensor & Size(mm) Pixel(μm) G Sensitivity FPS/Resolution Binning Exposure
    Dark Signal
    5MPB 1080P/5M/ 2.4x2.4 425 mv with 1/30s 30@1920x1080 1x1 0.03ms~918ms
    Sony IMX178(C) 0.15 mv with 1/30s (HDMI)
    1/1.8"(6.22x4.67)   25@1920x1080
        (WiFi)
    2MPD 1080P/2M/ 3.75x3.75 1120 mv with 1/30s 30@1920x1080 1x1 0.06ms~918ms
    Sony IMX185(C) 0.15 mv with 1/30s (HDMI)
    1/1.9"(7.20x4.05) 25@1920x1080
    (WiFi)
    2ME
    (Stop)
    1080P/2M/ 5.86x5.86 1016 mv with 1/30s 30@1920x1080 1x1 0.043ms~1000ms
    Sony IMX249(C,GS) 0.15 mv with 1/30s (HDMI)
    1/1.2"(11.25x6.33)   25@1920x1080
        (WiFi)
    Remark: C - Color, M-Monocolor, GS-GS Shutter
    INTERFACE & BUTTON FUNCTION
    USB USB Mouse, or USB WIFI
    HDMI HDMI Output, Mouse Control & Measure Function
    DC12V 12V Power in
    SD SD Card Slot
    ON/OFF Power On/Off Switch
    LED Power On Indicator
    HDMI OUTPUT
    UI Operation With USB Mouse
    Image Capture JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (5MP)
    JPEG Format with 2M Resolution in SD Card (2MP, 2ME)
    Global Shutter for 2ME
    Video Record ASF Format 1080P 30fps in SD Card
    Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
    Auto-focus Control Panel Including Auto-focus, Manual Focus, One Push AF and Conjugate Correction Functions
    Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
    WIFI OUTPUT
    UI Operation Image View on Windows/Linux/OSX/Android Platform
    WiFi Performance 802.11n 150Mbps; RF Power 20dBm(Maximum)
    Maximum Connected Devices 3~6(According to the Environment and Connection Distance)
    White Balance Auto White Balance
    Color Technique Ultra-Fine Color Engine (WiFi)
    Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi)
    Recording System Still Picture or Movie (WiFi)
    SOFTWARE ENVIRONMENT FOR USB2.0
    Operating System Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
    OS X (Mac OS X),
    Linux
    PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 2GB or More
    USB port: USB2.0 High-speed Port
    Display: 17" or Larger
    CD-ROM
    OPERATING ENVIRONMENT
    Operating Temperature -10 °C~ 50 °C
    Storage Temperature -20 °C~ 60 °C
    Operating Humidity 30~80%RH
    Storage Humidity 10~60%RH
    Power Supply DC 12V/2A Adaptor

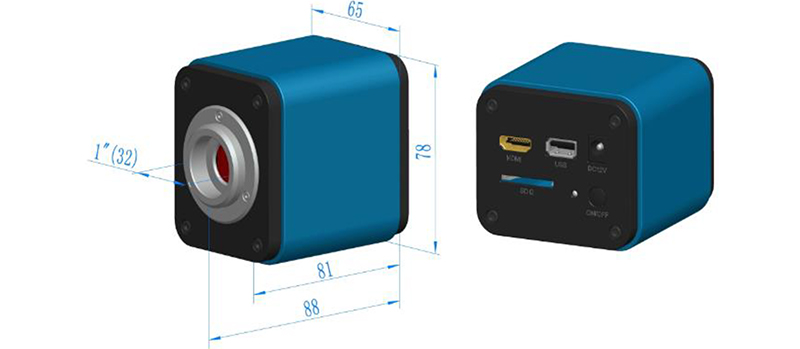

    Dimension of A59.2240 Series Camera
    A59.2240 Auto-focus HDMI WiFi CMOS camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions
    Dimension 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)
    Shipping Weight 0.47 kg (1.0lbs)
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
    Packing List of A59.2240 Series Camera
    Standard Outfit
    A Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55Kg/ box)
    B Digital camera
    C Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
    American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
    EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
    EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
    European standard: Model:GS12E12-P1I 12W/12V/1A TUV(GS)/CB/CE/ROHS
    EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
    EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
    D HDMI Cable
    E USB Mouse
    F Wireless network adapter with USB interface
    G CD (Driver & utilities software, Ø12cm)
    Optional Accessory
    H Focus Adjustable Eyepiece Adapter For Microscope 0.37x, C-Mount to Dia.23.2mm A55.2202-A37
    0.50x, C-Mount to Dia.23.2mm A55.2202-A50
    0.75x, C-Mount to Dia.23.2mm A55.2202-A75
    For Telescope 0.37x, C-Mount to Dia.31.75mm A55.2204-A37
    0.50x, C-Mount to Dia.31.75mm A55.2204-A50
    0.75x, C-Mount to Dia.31.75mm A55.2204-A75
    I Focus Fixed
    Eyepiece Adapter
    For Microscope 0.37x, C-Mount to Dia.23.2mm A55.2202-F37
    0.50x, C-Mount to Dia.23.2mm A55.2202-F50
    0.75x, C-Mount to Dia.23.2mm A55.2202-F75
    For Telescope 0.37x, C-Mount to Dia.31.75mm A55.2204-F37
    0.50x, C-Mount to Dia.31.75mm A55.2204-F50
    0.75x, C-Mount to Dia.31.75mm A55.2204-F75
    J Adaptor Rings Dia.23.2mm to 30.0mm For 30.0mm Microscope Eyepiece Tube A55.2203-30
    K Adaptor Rings Dia.23.2mm to 30.5mm For 30.5mm Microscope Eyepiece Tube A55.2203-30.5
    L Calibration
    Stage Micrometer
    X=0.01mm/100Div.
    X,Y=0.01mm/100Div
    X=0.01mm/100Div., 0.10mm/100Div
    M SD Card(4G or 8G)
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
    A59.2240 Auto Focus HDMI+WIFI+SD Camera Mouse Measure OPTO-EDU
