OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera

    Buy cheap OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera from wholesalers

    Buy cheap OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera from wholesalers
    • Buy cheap OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera from wholesalers
    • Buy cheap OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera from wholesalers

    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.2210
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera

    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera

    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera
    Order CodeSensor & SizePixel(μm)G Responsivity Dynamic range SNRmaxFPS/ResolutionBinningExposure
    12MPA12M/IMX577©
    1/2.1“ (5.95x4.71)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    7.5@3840x3040
    43@1920x1516
    122@960x758
    1x1
    2x2
    4x4
    0.1ms~2000ms
    10MPA10M/IMX577©
    1/2.3“ (5.68x4.26)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    8.5@3664x2748
    49@1832x1374
    137@912x686
    1x1
    2x2
    4x4
    0.1ms~2000ms
    5.1MPA5.1M/AR0521©
    1/2.5“ (5.70x4.28)
    2.2x2.218.8ke-/lux
    73dB
    40dB
    15.5@2592x1944
    49.5@1296x972
    97.5@648x486
    1x1
    2x2
    4x4
    0.1ms~2000ms
    5.1MPB5.1M/IMX335©
    1/2.8“ (5.18x3.89)
    2.0x2.0505mV
    70dB
    43dB
    25@2592x1944
    40@1296x972
    1x1
    2x2
    0.1ms~2000ms
    4.1MPA4.1M/IMX347©
    1/1.8“ (7.795x4.408)
    2.9x2.92376mv with 1/30s
    0.15mv with 1/30s
    20@2688x1536
    30@2048x1536
    40@1536x1536
    100@1344x768
    1x1
    1x1
    1x1
    1x1
    0.1ms~5000ms
    3.5MPA3.5M/SC4236©
    1/2.6“ (5.76x3.84)
    2.5x2.53.0v/lux-sec
    72dB
    37dB
    30@2304x1536
    30@1152x768
    1x1
    2x2
    0.1ms~2000ms
    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera
    Other Specification
    Spectral Range380-650nm (with IR-cut Filter)
    White BalanceROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
    Color TechniqueUltra-Fine Color Engine/NA for Monochromatic Sensor
    Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    ADC8 Bit
    Recording SystemStill Picture and Movie
    Cooling System*Natural
    Operating Environment
    Operating Temperature(in Centidegree)-10~ 50
    Storage Temperature(in Centidegree)-20~ 60
    Operating Humidity30~80%RH
    Storage Humidity10~60%RH
    Power SupplyDC 5V over PC USB Port
    Software Environment
    Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
    Memory:2GB or More
    USB Port: USB3.0 High-speed Port
    Display:17” or Larger
    CD-ROM
    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera
    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera

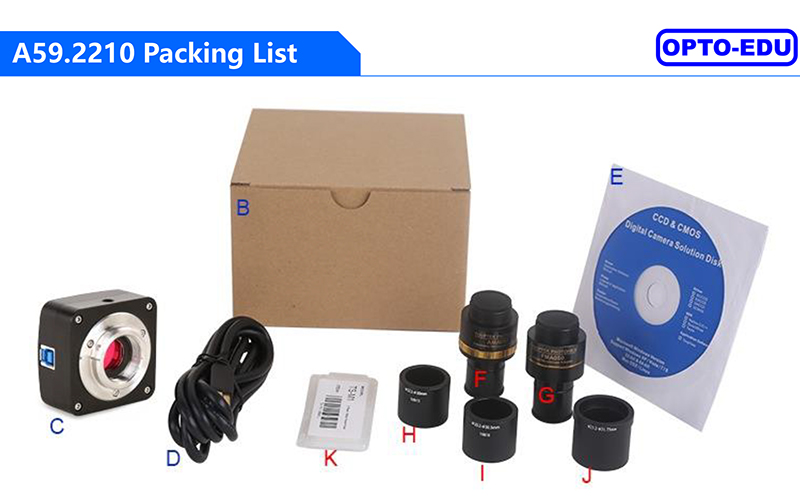

    Standard Camera Packing List
    ACarton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
    BGift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)
    COne C3CMOS series camera
    DHigh-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
    ECD (Driver & utilities software, Ø12cm)
    Optional Accessory
    FAdjustable lens adapterC-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)108001/AMA037
     108002/AMA050
     108003/AMA075
     C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)108008/ATA037
     108009/ATA050
     108010/ATA075
    GFixed lens adapterC-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)108005/FMA037
     108006/FMA050
     108007/FMA075
     C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)108011/FTA037
     108012/FTA050
     108013/FTA075
    Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
    H108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
    I108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
    J108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
    KCalibration kit106011/TS-M1(X=0.01mm/100Div.);
    106012/TS-M2(X,Y=0.01mm/100Div.);
    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
    OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera
