    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.2208-U
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M


    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M

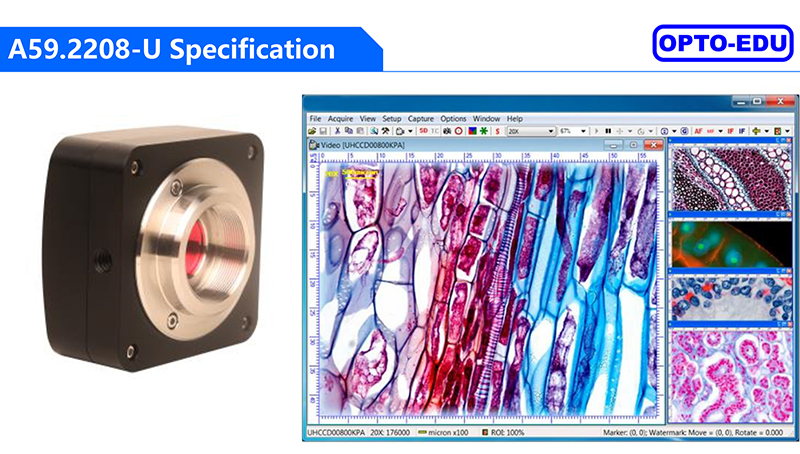

    A59.2208-U USB2.0 CMOS Digital Camera, Buffer Memory

    A59.2208-U: ToupTek A59.2208-U series Microscope Camera is an Advanced USB2.0 CMOS Camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.External dedicated on-board buffer is added to achieve maximum performance of USB2.0.

    A59.2208-U Camera hardware resolutions range from 1.3M to 12M and comes with the CNC aluminum alloy compact housing.

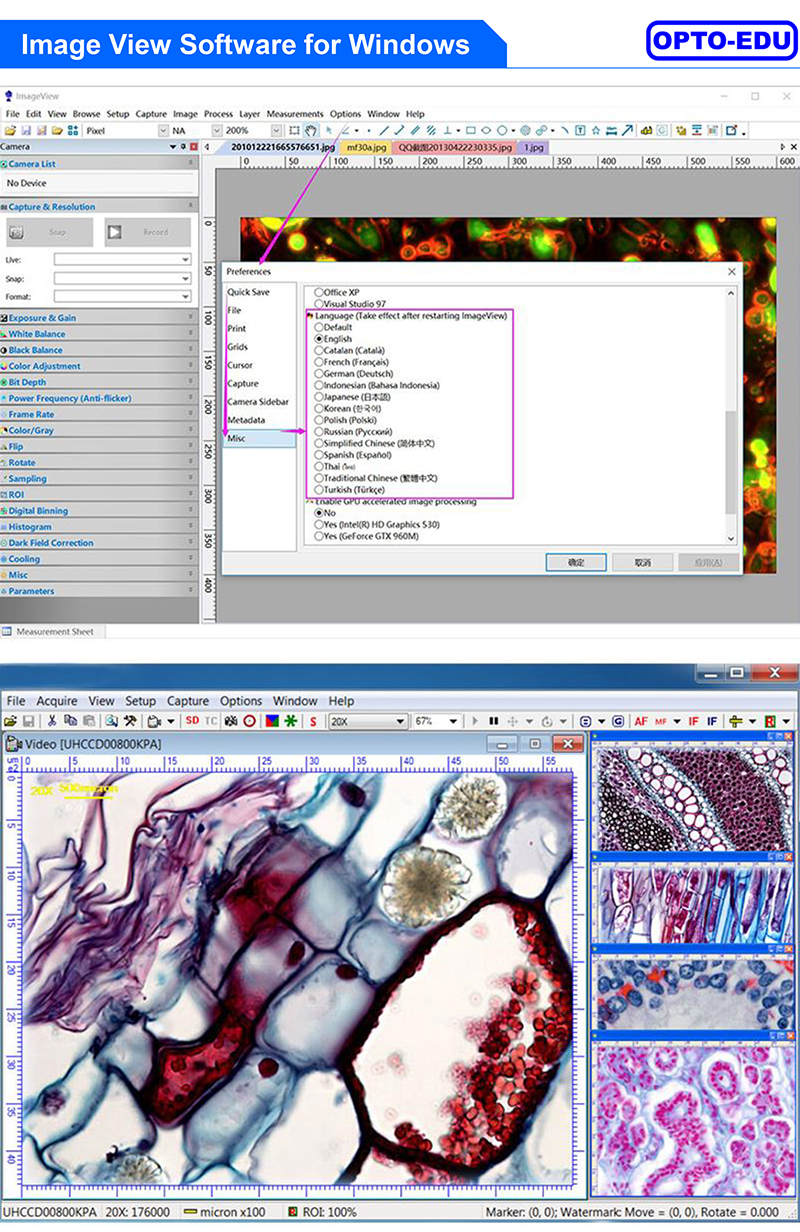

    A59.2208-U comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

    The A59.2208-U can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
    Order CodeSensor & Size(mm)Pixel(μm)G Responsivity Dynamic range SNRmaxFPS/ResolutionBinningExposure
    12MCA12M/IMX577©
    1/2.1“ (5.95x4.71)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    3@3840x3040
    11@1920x1516
    47@960x758
    1x1
    2x2
    4x4
    0.4ms~2000ms
    10MCA10M/IMX577©
    1/2.3“ (5.56x4.26)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    3.3@3584x2748
    12@1792x1374
    53@896x684
    1x1
    2x2
    4x4
    0.4ms~2000ms
    6.3MCA6.3M/IMX178©
    1/1.8“ (7.37x4.92)
    2.4x2.4425mv with 1/30s
    0.15mv with 1/30s
    5fps@3072×2048
    20fps@1536×1024
    1x1
    2x2
    0.244ms~15000ms
    6.3MMA6.3M/IMX178(M)
    1/1.8“ (7.37x4.92)
    2.4x2.4760mv with 1/30s
    0.15mv with 1/30s
    5fps@3072×2048
    20fps@1536×1024
    1x1
    2x2
    0.244ms~15000ms
    5.1MCA5.1M/AR0521©
    1/2.5“ (5.70x4.28)
    2.2x2.218.8ke-/lux
    73dB
    40dB
    7.0@2592x1944
    27.7@1296x972
    100.5@648x486
    1x1
    2x2
    4x4
    0.2ms~2000ms
    4.1MCA4.1M/IMX347©
    1/1.8“ (7.795x4.408)
    2.9x2.92376mv with 1/30s
    0.15mv with 1/30s
    8.5@2688x1536
    11.5@2048x1536
    15@1536x1536
    34@1344x768
    1x1
    1x1
    1x1
    1x1
    0.1ms~2000ms
    4.1MCB4.1M/IMX664©
    1/1.8“ (7.795x4.408)
    2.9x2.95970mv with HCG mode
    0.13mv with 1/30s
    8.5@2688x1520
    34@1344x760
    1x1
    2x2
    0.1ms~2000ms
    3.1MCB3.1M/IMX123©
    1/2.8“ (5.12x3.84)
    2.5x2.5600mv with 1/30s
    0.15mv with 1/30s
    11.5@2048x1536
    29.5@1024x768
    1x1
    2x2
    0.2ms~2000ms
    1.23MCA1.23M/SC1235©
    1/3“ (4.80x3.60)
    3.75x3.754.5V/lux-sec
    74dB
    38dB
    25@1280x960
    25@1280x720
    1x1
    1x1
    0.1ms~2000ms
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
    Other Specification
    Spectral Range380-650nm (with IR-cut Filter)
    White BalanceROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
    Color TechniqueUltra-Fine Color Engine/NA for Monochromatic Sensor
    Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    ADC8 Bit
    Recording SystemStill Picture and Movie
    Cooling System*Natural
    Operating Environment
    Operating Temperature(in Centidegree)-10~ 50
    Storage Temperature(in Centidegree)-20~ 60
    Operating Humidity30~80%RH
    Storage Humidity10~60%RH
    Power SupplyDC 5V over PC USB Port
    Software Environment
    Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
    Memory:2GB or More
    USB Port:USB2.0 High-speed Port
    Display:17” or Larger
    CD-ROM
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M

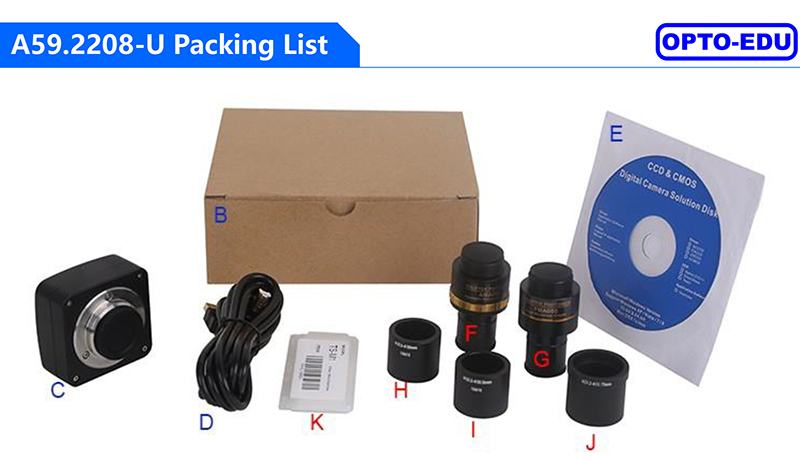

    Standard Camera Packing List
    ACarton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
    BGift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box)
    COne UA series camera
    DHigh-speed USB2.0 A male to B male gold-plated connectors cable /2.0m
    ECD (Driver & utilities software, Ø12cm)
    Optional Accessory
    FAdjustable lens adapterC-mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)
    108001/AMA037
    108002/AMA050
    108003/AMA075
      C-mount to Dia.31.75mm eyepiece tube
    (Please choose 1 of them for your telescope)
    108008/ATA037
    108009/ATA050
    108010/ATA075
    GFixed lens adapterC-mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)
    108005/FMA037
    108006/FMA050
    108007/FMA075
      C-mount to Dia.31.75mm eyepiece tube
    (Please choose 1 of them for your telescope)
    108011/FTA037
    108012/FTA050
    108013/FTA075
    Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
    H108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
    I108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
    J108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
    KCalibration kit106011/TS-M1(X=0.01mm/100Div.);
    106012/TS-M2(X,Y=0.01mm/100Div.);
    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
    OPTO EDU A59.2208-U Usb 2.0 Cmos Digital Microscope Camera 12M
