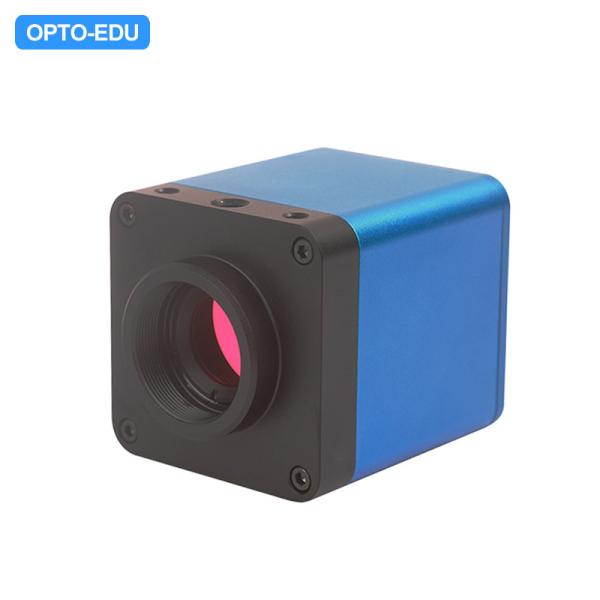

    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.2251
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera

    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera
    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera
    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera

    A59.2251

    WIFI+USB2.0 Digital Camera


    The WEUCAM series cameras can be connected to smart devices or computers through USB/LAN/WiFi. It can be used for video and image acquisition of stereo microscope or biomicroscope, and can also be used for interactive microscope teaching system, which is convenient for teachers to teach and students to learn.

    Sony Exmor back illuminated large-sized CMOS sensor with lower noise and better photosensitive characteristics

    USB/LAN/WiFi multiple video outputs, WiFi adopts 802.11AC chip, with higher transmission bandwidth

    Powerful ISP functions, real-time video transmission can reach up to 30fps/4M

    ToupView/ToupLite software for PC, fully applicable for biological and stereological observations

    iOS/Android app for smart phones or tablets

    Order CodeSensor & Size(mm)Pixel(μm)G Sensitivity Dark SignalFPS/ResolutionBinningExposure (ms)
    4MPA4M/Sony IMX347©
    1/1.8"(7.8x4.38)
    2.9x2.9921mv with 1/30s
    0.15mv with 1/30s
    30@2688*1512(USB)
    30@2688*1512(NETWORK)
    1x10.021ms~1000ms
    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera
    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera

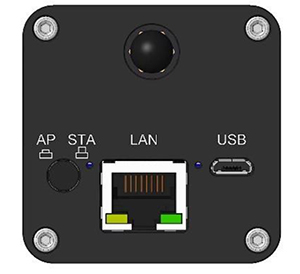

    InterfaceFunction Description
    LAN100M Ethernet port to connect to the router or computer to transfer video. Video can be transmitted via LAN or WiFi. LAN and WiFi cannot be used at the same time. The priority of LAN connection is higher than WiFi.
    USBConnect the Micro USB 5V/1A power supply to power the camera, at this time the Camera provides LAN or WiFi connection mode.
    Connect the Micro USB cable to the USB port of the computer to achieve video image output.
    AP/STA Switch ButtonPress to switch between AP and STA mode. Connecting 2~3 clients for a single Camera is recommended
    Video Output InterfaceFunction Description
    LAN Interface30fps@2688*1512 H264 encoded video and Jpeg image capture.
    USB InterfaceConnect to PC via Micro USB cable to transfer MJPEG/H264 real-time images, support 30fps@2688*1512 and 30fps@1920*1080.
    WiFi InterfaceSupport 802.11ac protocols in AP/STA mode; 30fps@2688*1512 H264 encoded video and Jpeg image capture.
    Software Environment under LAN/WLAN/Output
    White BalanceAuto, Manual and ROI White Balance
    Color TechniqueUltra-Fine Color Engine
    ISPExposure(Automatic/Manual Exposure)/ Gain, White Balance(Auto, Manual and ROI White Balance), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment,50HZ/60HZ Anti-flicker, Mirror/Flip, color to grey, Network Bandwidth Adjustment
    Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    Recording SystemStill Picture or Movie
    Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 4GB or More
    Ethernet RJ45 Interface: 100M bps or more
    WiFi Adaptor: Support 802.11 b/g/n/ac
    Display:19” or Larger
    CD-ROM
    Operating Environment
    Operating Temperature (in Centidegree)-10°~ 50°
    Storage Temperature (in Centidegree)-20°~ 60°
    Operating Humidity30~80%RH
    Storage Humidity10~60%RH
    Power SupplyMicro USB DC 5V/1A Adapter

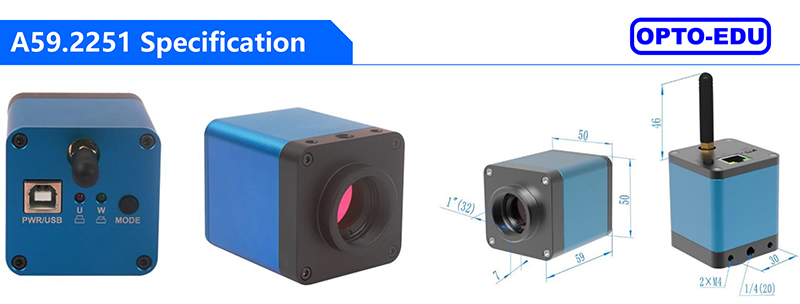

    Camera Size
    Length x Width x Height50 mm x 50mm x 112mm
    Shipping Weight0.19 kg
    OPTO-EDU A59.2251 WIFI+USB2.0 Digital Microscope Camera
    Standard Packing List
    AGift box : L:15cm W:15cm H:10cm (1pcs, 0.5kg/ box)
    BOne WEUCAM series camera
    CPower Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 5V 1A
    American standard: Model: POWER-U-5V1A(SK12G-0500100U): UL/CE/FCC
    European standard: Model: POWER-E-5V1A(SK12G-0500100V): UL/CE/FCC
    DMicro USB cable 1.5 meters
    ECD (Driver & utilities software, Ø12cm)
    Optional Accessory
    FEthernet cable
    GAdjustable lens adapterC-Mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)
    108001/AMA037
    108002/AMA050
    108003/AMA075
    HFixed lens adapterC-Mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)
    108005/FMA037
    108006/FMA050
    108007/FMA075
    Note: For G and H optional items, please specify your Camera type(C-mount, microscope Camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
    I108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
    J108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
    KCalibration kit106011/TS-M1(X=0.01mm/100Div.);
    106012/TS-M2(X,Y=0.01mm/100Div.);
    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
