    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.2268
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K

    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K
    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K

    A59.2268 Camera Intelligent Control Platform(CICP) help manual ,Please click the left connection to download!!

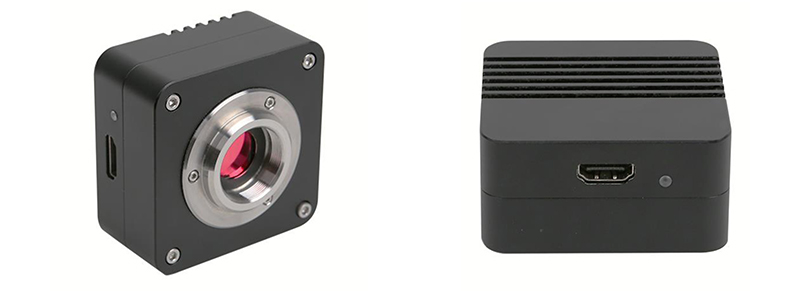

    A59.2268 is a SoC Camera intelligent control platform launched by ToupTek Photonics that integrates powerful computing power and Camera control functions. The HCMOS series cameras developed by ToupTek Photonics only need a standard HDMI cable to connect with the A59.2268 Camera intelligent control platform and complete the functions of Camera control, video display, image capture, video recording and measurement.

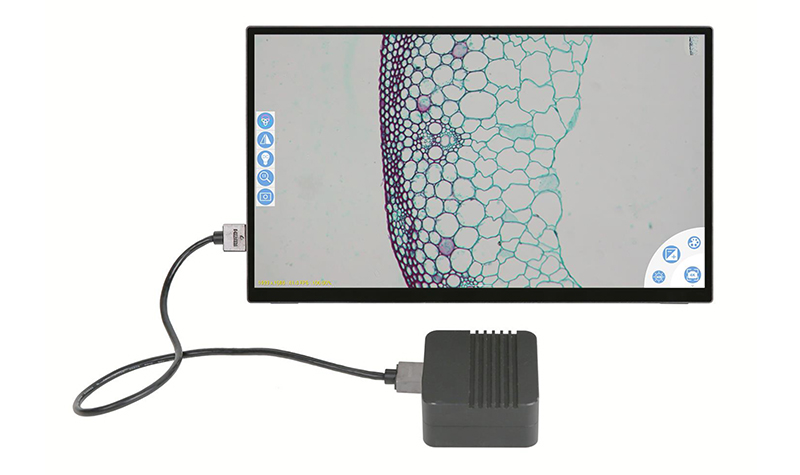

    The A59.2268 Camera intelligent control platform is equipped with multi-touch TFT-LCD displays of different sizes and resolutions, which can get rid of the user's dependence on the keyboard and mouse during operation, and use finger touch operation to realize the control of HCMOS cameras or other peripherals manipulation.


    The combination of A59.2268 series Camera intelligent control platforms and HCMOS series cameras are expected to be used in various products such as intelligent detection, processing, analysis and control, covering public security criminal investigation, precision agriculture and forestry, water quality monitoring, remote sensing and telemetry, industrial inspection, cultural relics identification, medical treatment, etc. This combination has extremely high commercial prospects and value.

    ModelProcessor/th>Memory/StorageDisplayComputing PowerSystem Version
    CamPI2K133ARK33992G LPDDR3/32GEMMC1080P multi-touch displayNAAndroid 10.0
    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K

    Modular high scalability:The core board and the interface board are designed independently, while focusing on the core Camera functions, it has the characteristics of high scalability and embeddability;


    Simple image transmission:Only one HDMI cable is needed to connect with HCMOS series cameras, which can perfectly realize the control of the camera, the transmission, display and processing of image and video data, eliminating the trouble of hardware compatibility and Camera driver problems, seamlessly integrated with the camera, providing users with worry-free mobile image acquisition solutions;


    Openness of product development:Users can develop and run their own image processing applications through the supplied SDK, realize on-site industrial control through standard user interfaces, process image and video data according to preferences and needs, and finally submit scientific reports, completely liberated from camera hardware problems and image or video data capture problems, focus on problem-oriented image processing and analysis, and quickly develop user own target equipment;


    Portability of product use/integration:Compact size ensures portability for product use and integration;


    Versatility of product application:It can be applied to various scenarios, such as microscope observation, biological image analysis, industrial inspection and various intelligent image analysis equipment, to meet different development needs.

    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K
    A59.2268 13.3" LCD Digital Camera, HDMI + Mouse Measure, USB3.0, WIFI, 8.0M 4K Specification
    Interface or ButtonFunction Description
    USB 2.0Connect USB mouse for easy operation with embedded XCamView software

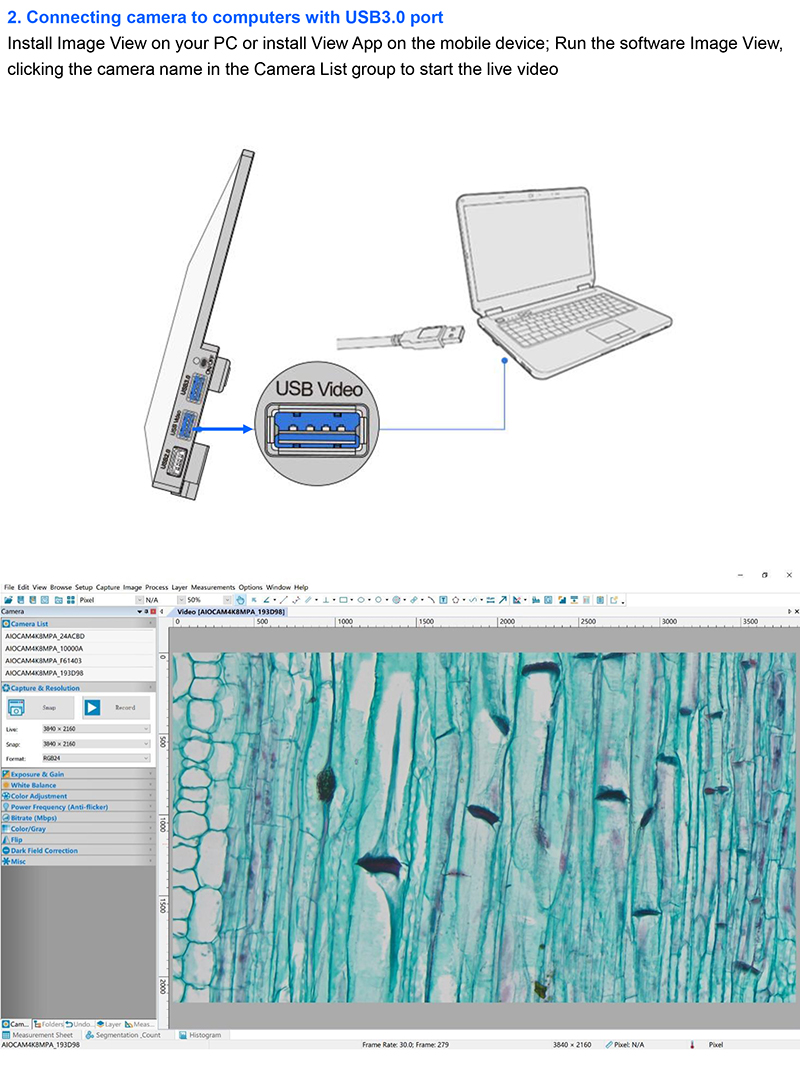

    USB VideoConnect PC or other host device to realize video image transmission
    USB3.0Connect USB flash drive to save pictures and videos
    Connect 5G WiFi module to transfer video wirelessly in real time
    Connect USB microphone for audio and video recording
    ON/OFFPower switch (Short press to turn on, long press to turn off)
    HDMI OUTComply with HDMI2.0 standard. Used to extend 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
    LEDLED status indicator
    +/-Display brightness adjustment button
    MENUDisplay menu key
    DC 12V2APower adapter connection (12V/2A)
    Video Output InterfaceFunction Description
    HDMI InterfaceSynchronize video output through HDMI OUT interface, comply with HDMI2.0 standard; 60fps@4K Or 60fps@1080P
    WiFi InterfaceConnecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode
    USB Video InterfaceConnecting USB Video port of PC for video transfer
    H264/MJPEG format video
    Other FunctionFunction Description
    Video SavingVideo format:8M (3840*2160) H264/H265 encoded MP4 file
    Video saving frame rate: 60fps in Low Delay mode; 30fps in WDR mode
    Image Capture8M (3840*2160) JPEG/TIFF image in USB flash drive
    Measurement SavingMeasurement information saved in different layer with image content
    Measurement information is saved together with image content in burn in mode
    ISPExposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
    Image OperationZoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Video EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Picture EDF, Image Processing), Measurement Function
    Embedded RTC(Optional)To support accurate time on board
    Restore Factory SettingsRestore camera parameters to its factory status
    Multiple Language SupportEnglish / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese
    Software Environment under WiFi/USB Video Output
    White BalanceAuto White Balance
    Color TechniqueUltra-Fine Color Engine
    Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    Recording SystemStill Picture or Movie
    Operating SystemMicrosoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 4GB or More
    Ethernet Port: RJ45 Ethernet Port
    Display:19” or Larger
    CD-ROM
    Operating Environment
    Operating Temperature-10°~ 50°
    (in Centidegree)
    Storage Temperature (in Centidegree )-20°~ 60°
    Operating Humidity30~80%RH
    Storage Humidity10~60%RH
    Power SupplyDC 12V/2A Adapter
    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K
    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K
    OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K
    ModelSensor & SizePixel (μm)G Sensitivity/Dark SignalFPSFPSExposure
    8.3MPA8.3M/IMX678©
    1/1.8”(7.68x4.32)
    2.0x2.03541(mV/lx/s)
    0.15mv with 1/30s
    42@1920x10803840x21600.02ms~15s
    8.3MPB8.3M/IMX585
    1/1.2”(11.2x6.3)
    2.9x2.95970mv with 1/30s
    0.15mv with 1/30s
    42@1920x10803840x21600.02ms~15s
    20MPA20M/IMX283
    1” (13.2x8.9)
    2.4x2.4TBDTBDTBDTBD
    45MPA45M/IMX294
    4/3”(17.26x13.03)
    4.6x4.6108mv with 1/30s
    0.03mv with 1/30s
    42@1920x10808160*56160.02ms~15s
    4.2MMB-RAW4.2M/GSENSE2020BSI
    (M,UV, RS)1.2”(13.31x13.31)
    6.5x6.51.1x108 (e-/((W/m2).s))
    QE93.7%@550nm
    80(e-/s/pix)
    18@2048x2048
    18@1024x1024
    2048x2048
    1024x1024
    0.15ms-15s
    4.2MMB-YUV4.2M/GSENSE2020BSI
    (M,UV, RS)
    1.2”(13.31x13.31)
    6.5x6.51.1x108 (e-/((W/m2).s))
    QE93.7%@550nm
    80(e-/s/pix)
    18@2048x2048
    18@1024x1024
    2048x2048
    1024x1024
    0.15ms-15s
    1.3MMA1.3M/IMX990(M)
    1/2”(6.40x5.12)
    5.0x5.0121mV with 1/30s
    1.0mV with 1/30s
    35@1280x1024
    35@640x512
    1280x1024
    640x512
    50us~3600s
