| Remark: C - Color, M-Monocolor, GS-GS Shutter |

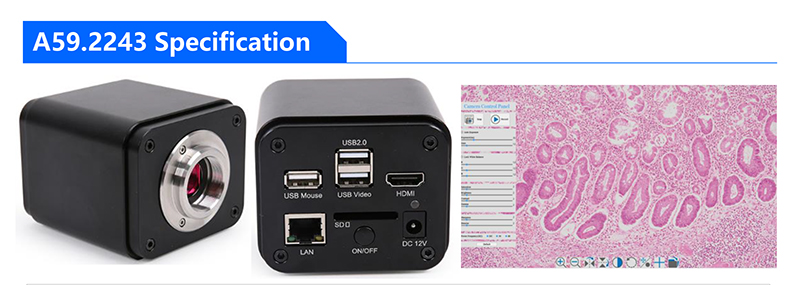

| INTERFACE & BUTTON FUNCTION |
| USB Mouse | Connect USB mouse for easy operation on HDMI menu |
| USB 2.0 | Connect USB flash drive to save pictures and videos
Connect 5G WLAN module to transfer video wirelessly in real time |
| USB Video | Connect PC or other host device to realize video image transmission |
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution |
| LAN | Gigabit Ethernet port to connect to the peripheral for the video streaming |
| SD | Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage |
| ON/OFF | Power On/Off Switch |
| LED | Camera status indicator |
| DC12V | Power adapter connection (12V/1A) |
| VIDEO OUTPUT INTERFACE |
| HDMI | Comply with HDMI1.4 standard, 30fps@4K or 30fps@1080P |
| LAN | support real time resolution switching(4K/1080P/720P)
H264 encoded video
DHCP configuration or manual configuration
Unicast/multicast configuration |
| WIFI | Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode (WIFI Adapter Is Optional) |
| USB Video | Connecting USB Video port of PC for video transfer, MJPEG format video |
| GE OUTPUT INTERFACE |
| Video Saving | Video format:8M(3840*2160) H264/H265 encoded MP4 file |
| Video saving frame rate:30fps |
| Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
| Measurement Saving | Measurement information saved in different layer with image content |
| Measurement information is saved together with image content in burn in mode |
| ISP | Exposure(Automatic, Manual Exposure), Gain, White Balance(Manual, Automatic, ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison between real time video and images in SD card or USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC | To support accurate time on board (Optional) |
| Restore | Restore camera parameters to its factory status |
| Multiple Language | English, Simplified Chinese, Traditional Chinese, Korean, Thailand, French, German, Japanese, Italian, Russian |
| SOFTWARE ENVIRONMENT UNDER LAN/WLAN/USB VIDEO OUTPUT |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control SDK | Win/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® XP, Vista, 7, 8, 8.1 /10 /11(32 & 64 bit) |
| OSx(Mac OS X) |
| Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More |
| Display:19” or Larger |
| CD-ROM |
| OPERATING ENVIRONMENT |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adaptor |

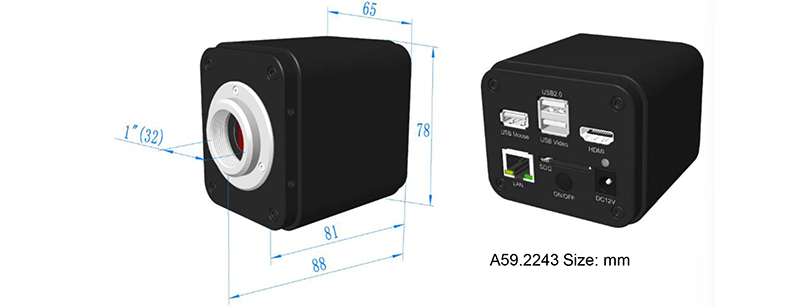

| Dimension of A59.2243 Series Camera |
| A59.2243 Camera body, made from tough, CNC aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
